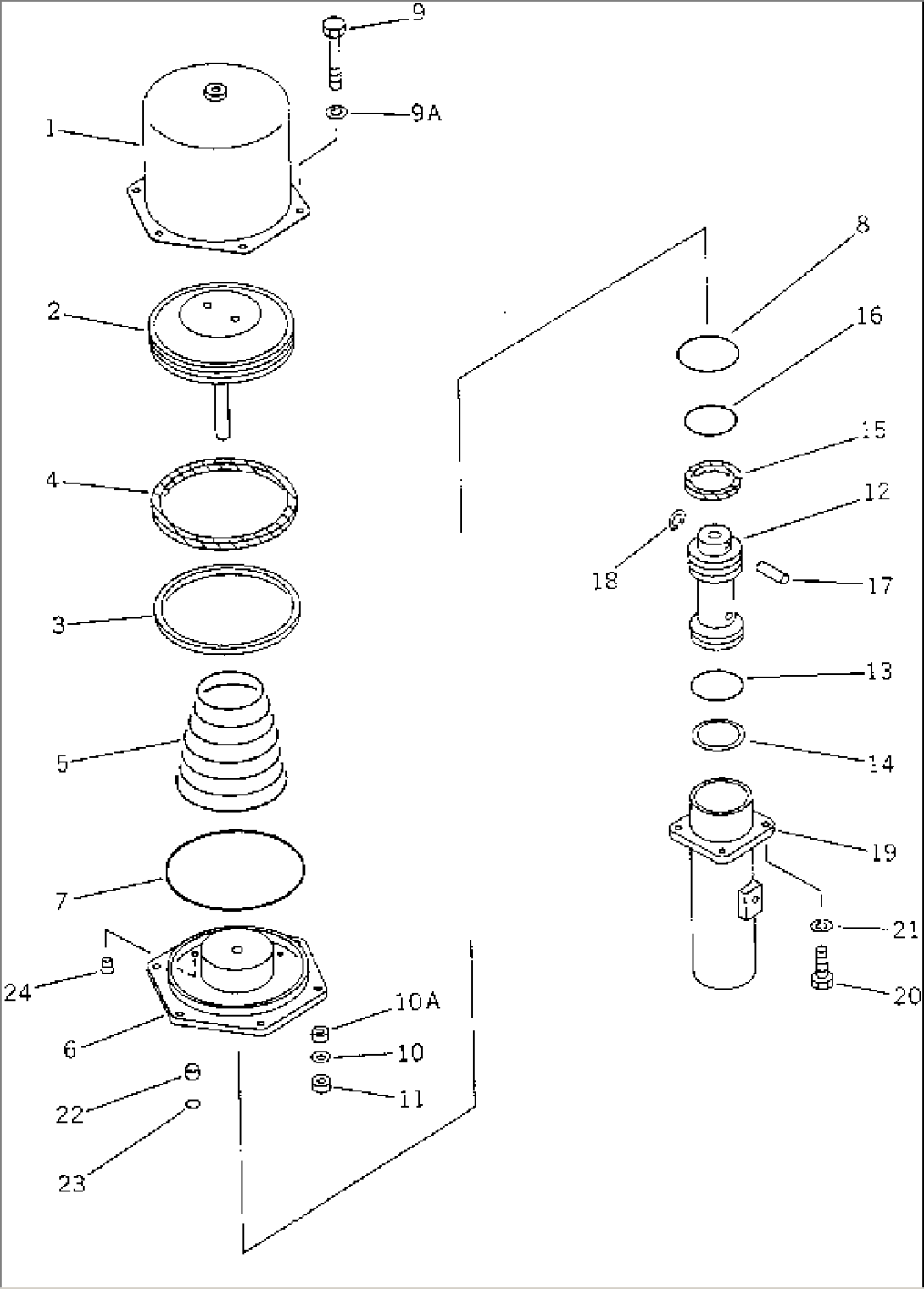

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-35-61201 | BRAKE CHAMBER ASS'Y | 2001- | ||
| 1 | \6\ | CYLINDER,AIR | 2001- | |
| 2 | \6\ | ROD,PISTON | 2001- | |
| 3 | \6\ | SLEEVE (KIT) | 2001- | |
| 4 | \6\ | PACKING (KIT) | 2001- | |
| 5 | 561-35-61230 | SPRING | 2001- | |
| 6 | \6\ | COVER | 2001- | |
| 7 | \6\ | O-RING (KIT) | 2001- | |
| 8 | \6\ | O-RING (KIT) | 2001- | |
| 9 | 01016-51060 | BOLT | 2001- | |
| 9A | 01643-51032 | WASHER | 2001- | |
| 10 | 01643-31032 | WASHER | 2001- | |
| 10A | 561-35-61320 | COLLAR | 2001- | |
| 11 | 01580-11008 | NUT | 2001- | |
| 561-35-61260 | PISTON CAP ASS'Y | 2001- | ||
| 12 | \6\ | PISTON ASS'Y | 2001- | |
| 13 | \6\ | O-RING (KIT) | 2001- | |
| 14 | \6\ | SEAL (KIT) | 2001- | |
| 15 | \6\ | SEAL (KIT) | 2001- | |
| 16 | \6\ | O-RING (KIT) | 2001- | |
| 17 | \6\ | PIN | 2001- | |
| 18 | \6\ | RING | 2001- | |
| 19 | \6\ | CYLINDER | 2001- | |
| 20 | \6\ | BOLT | 2001- | |
| 21 | \6\ | WASHER,SPRING | 2001- | |
| 22 | \6\ | FILTER (KIT) | 2001- | |
| 23 | 561-35-61280 | O-RING | 2001- | |
| 24 | \6\ | PLUG | 2001- |
