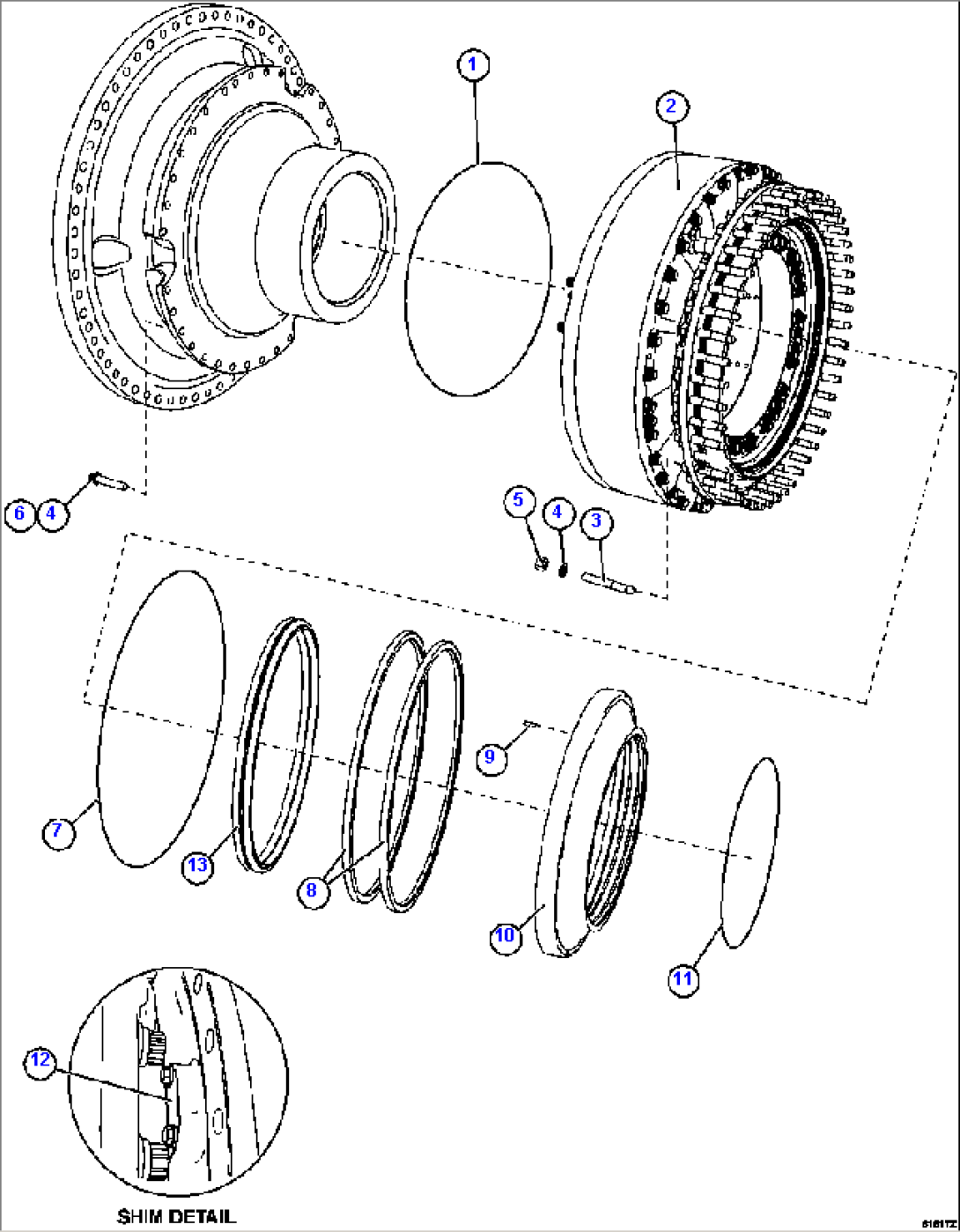

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EK3788 | SEAL, O-RING | ||
| 2 | XB1613 | REAR BRAKE ASSEMBLY (SEE INDEX) | ||
| 3 | EM5452 | STUD - 1" - 14NF | ||
| 4 | WA4174 | FLAT WASHER - 1" | ||
| 5 | VN7703 | NUT - 1" - 14NF | ||
| 6 | WB3108 | CAPSCREW - 1" - 8NC X 5" (12 PT) | ||
| 7 | EJ9381 | SEAL, O-RING | ||
| 8 | PC1431 | SEAL, OIL | ||
| 9 | TG3399 | PIN, DOWEL | ||
| 10 | XB7021 | CARRIER, SEAL | ||
| 11 | EK3791 | SEAL, O-RING | ||
| 12 | ED3755 | SHIM | ||
| 13 | 58B-33-00010 | SEAL ASSEMBLY | ||
| 13 | 58B-33-11411 | SEAL RING | ||
| 13 | 58B-33-11420 | O-RING | ||
| 13 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
