| Item | Part No. | Part Name | Qty | Serial No. |

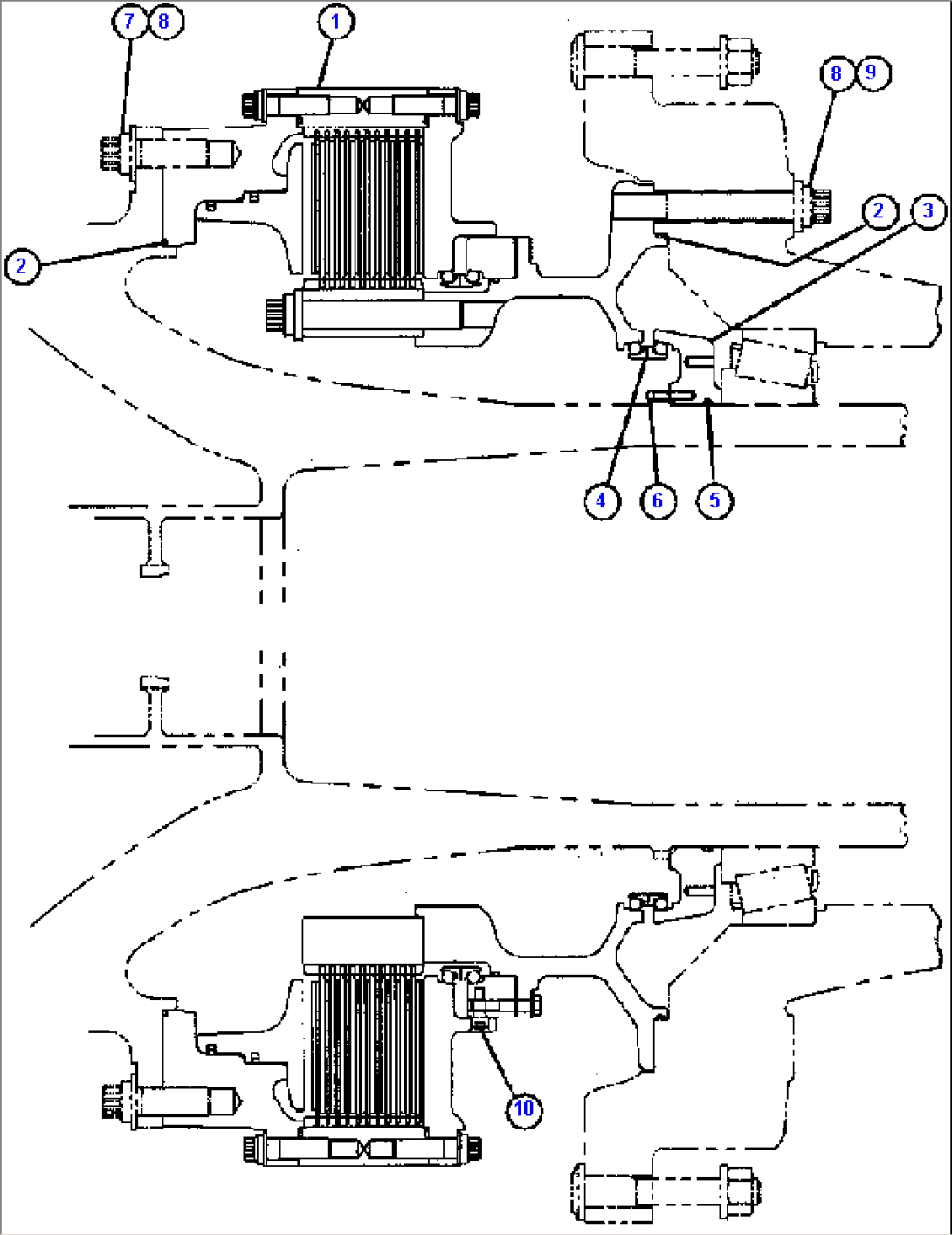

| 1 | EH5310 | REAR BRAKE ASSEMBLY (SEE INDEX) | ||
| 2 | EG7689 | SEAL, O-RING | ||
| 3 | EH0856 | CARRIER, SEAL | ||
| 4 | PC0179 | SEAL ASSEMBLY | ||
| 4 | ED3347 | TOOL, INSTALLATION | ||
| 4 | BF4081 | SEAL, TORIC | ||
| 4 | BF4096 | SEAL, RING | ||
| 5 | EH5305 | SEAL, O-RING | ||
| 6 | SL7740 | PIN, ROLL | ||
| 7 | GE0082 | CAPSCREW - 1 1/4" - 12NF X 3 1/2" (12 PT) | ||
| 8 | GE0449 | FLAT WASHER - 1 1/4" (HARDENED) | ||
| 9 | GE0450 | CAPSCREW - 1 1/4" - 12NF X 8" (12 PT) | ||
| 10 | D2930 | CAPSCREW - 1/2" - 13NC X 3/4" (1) | ||
| NS|14 | NOTE: (1) USED FOR ASSEMBLY AND STORAGE ONLY. | |||
| NS|15 | REMOVE WHEN INSTALLED ON TRUCK. |
