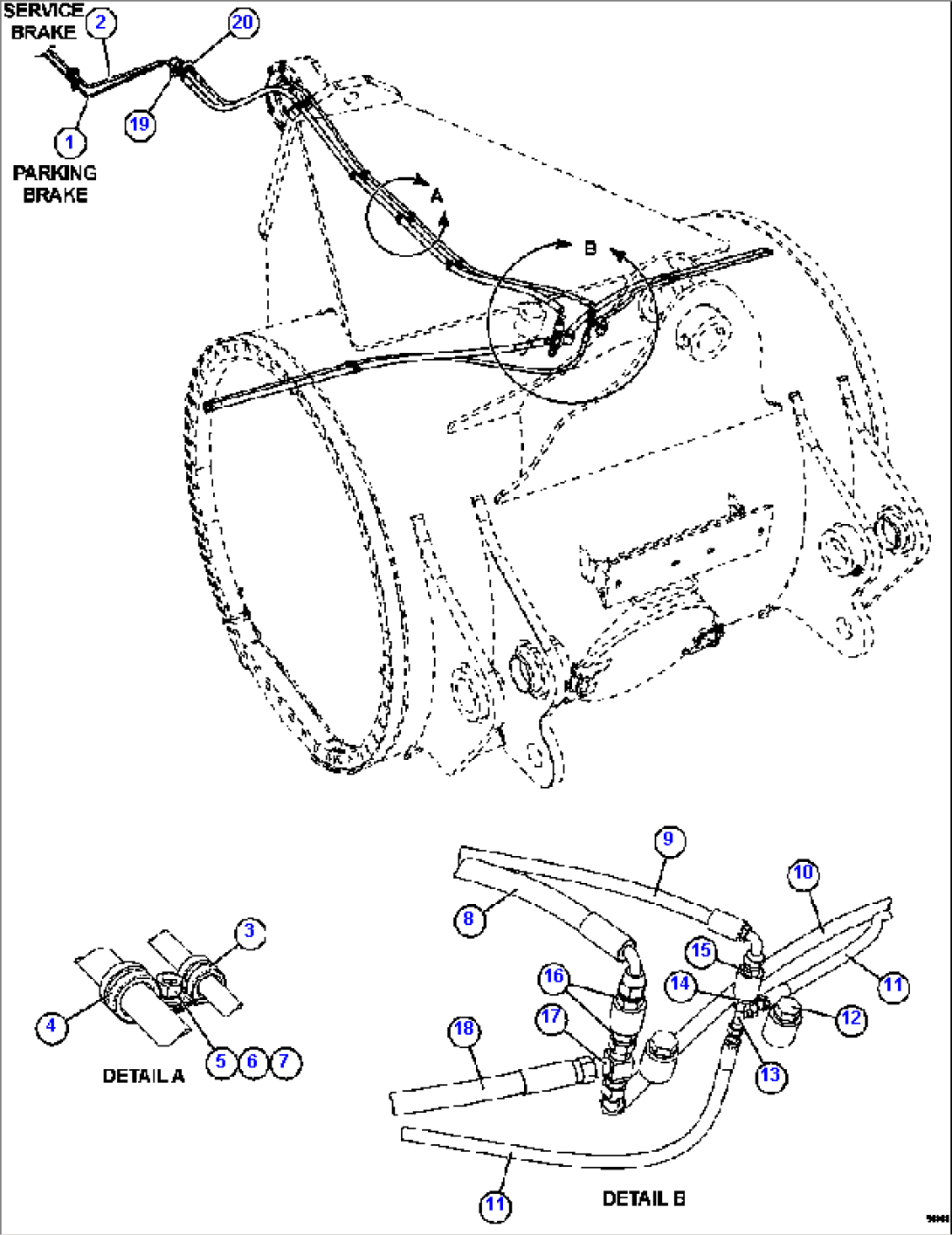

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XB3715 | TUBE | ||
| 2 | XB3714 | TUBE | ||
| 3 | WB1300 | CLAMP, CUSHION - 5/8" | ||
| 4 | WB3093 | CLAMP, CUSHION - 1" | ||
| 5 | MM0178 | NUT - M10 X 1.50 | ||
| 6 | MM0471 | LOCKWASHER - M10 | ||
| 7 | MM0461 | FLAT WASHER - M10 | ||
| 8 | HA6221 | HOSE (SERVICE BRAKES) | ||
| 9 | HA6219 | HOSE (PARKING BRAKES) | ||
| 10 | HA6644 | HOSE (TO RH SERVICE BRAKE) | ||
| 11 | HA6299 | HOSE (TO PARKING BRAKES) | ||
| 12 | VM0315 | PLUG, O-RING BOSS - 1/2" | ||
| 13 | WB0381 | FITTING, TEE | ||
| 14 | WB0576 | FITTING, STRAIGHT | ||
| 15 | WB0581 | FITTING, STRAIGHT | ||
| 16 | WB0584 | FITTING, STRAIGHT | ||
| 17 | WB0384 | FITTING, TEE | ||
| 18 | HA5844 | HOSE (TO LH SERVICE BRAKE) | ||
| 19 | WA4704 | CLAMP, HYDRA ZORB - 1/2" | ||
| 20 | WA4703 | CLAMP, HYDRA ZORB - 3/8" |
