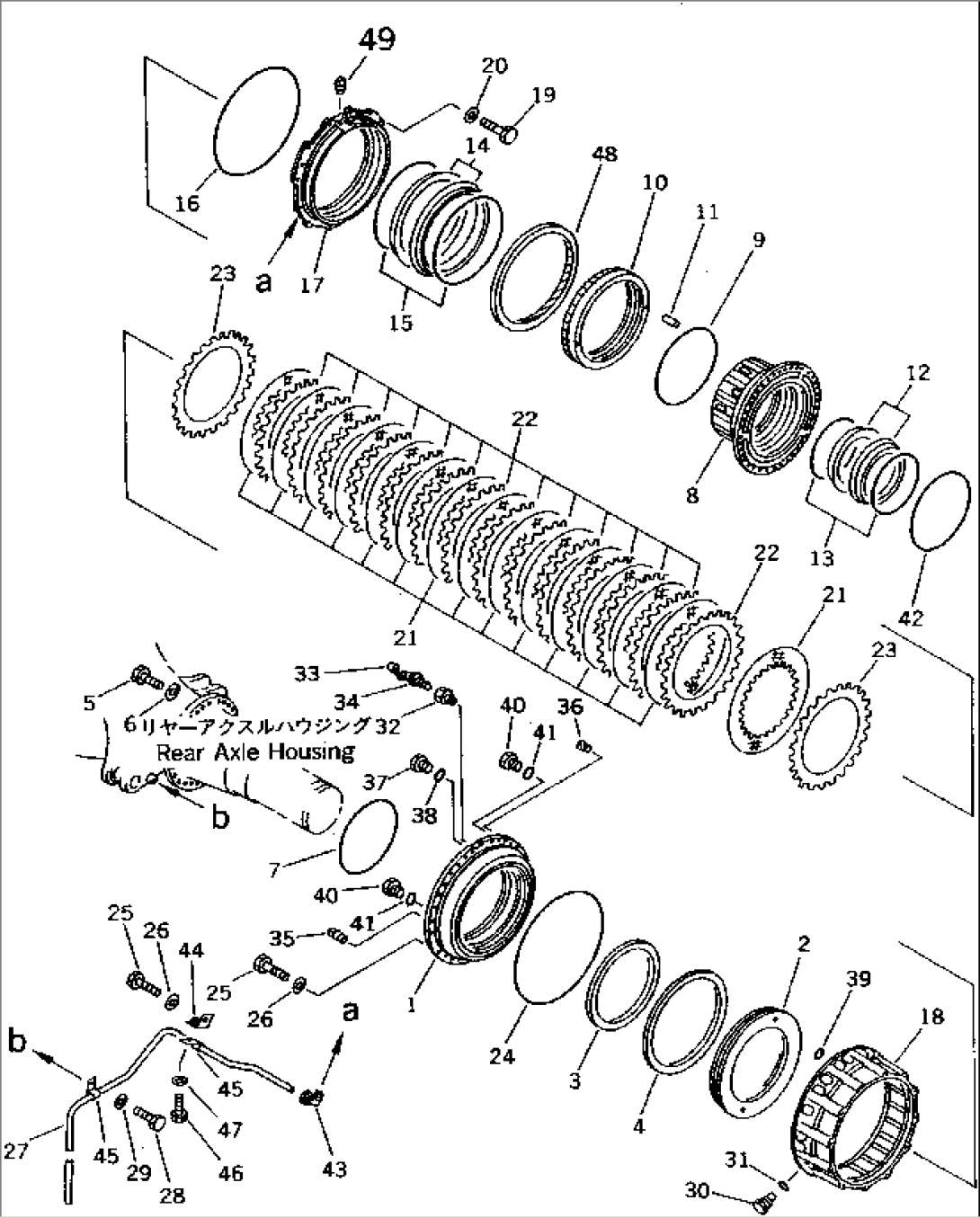

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-33-62110 | CYLINDER | 1001- | |
| 2 | 561-33-62120 | PISTON | 1001- | |
| 3 | 569-33-41951 | SEAL (KIT) | 1001- | |
| 4 | 561-33-62940 | SEAL (KIT) | 1001- | |
| 5 | 01010-62470 | BOLT | 1001- | |
| 6 | 01643-32460 | WASHER | 1001- | |
| 7 | 07000-05470 | O-RING (KIT) | 1001- | |
| 8 | 561-33-62313 | GEAR | 1001- | |
| 9 | 566-09-31110 | O-RING (KIT) | 1001- | |
| 10 | 561-88-26170 | RETAINER | 1001- | |
| 11 | 04020-01024 | PIN | 1001- | |
| 287-33-00010 | FLOATING SEAL ASS'Y | 1001- | ||
| 12 | \6\ | RING,SEAL | 1001- | |
| 13 | \6\ | O-RING | 1001- | |
| 568-33-00016 | FLOATING SEAL A. | 1001- | ||
| 14 | \6\ | RING,SEAL | 1001- | |
| 15 | \6\ | O-RING | 1001- | |
| 16 | 568-33-11430 | O-RING (KIT) | 1001- | |
| 17 | 561-88-66490 | HUB | 1001- | |
| 18 | 561-33-62210 | GEAR | 1001- | |
| 19 | 01010-62060 | BOLT | 1001- | |
| 20 | 01643-32060 | WASHER | 1001- | |
| 21 | 569-33-61240 | DISC,(NON-ASBESTOS) | 1001- | |
| 22 | 561-33-61230 | PLATE | 1001- | |
| 23 | 561-33-62260 | DAMPER | 1001- | |
| 24 | 568-33-11430 | O-RING (KIT) | 1001- | |
| 25 | 01010-62070 | BOLT | 1001- | |
| 26 | 01643-32060 | WASHER | 1001- | |
| 27 | 566-35-13830 | TUBE | 1001- | |
| 28 | 01010-50812 | BOLT | 1001- | |
| 29 | 01643-30823 | WASHER | 1001- | |
| 30 | 568-33-11260 | PLUG | 1001- | |
| 31 | 07002-01823 | O-RING (KIT) | 1001- | |
| 32 | 581-32-12140 | PLUG | 1001- | |
| 33 | 566-32-11620 | CAP | 1001- | |
| 34 | 566-32-11430 | BLEEDER | 1001- | |
| 35 | 07042-00211 | PLUG | 1001- | |
| 36 | 07049-02025 | PLUG (KIT) | 1001- | |
| 37 | 07040-11812 | PLUG | 1001- | |
| 38 | 07002-01823 | O-RING (KIT) | 1001- | |
| 39 | 07000-02021 | O-RING (KIT) | 1001- | |
| 40 | 07040-11812 | PLUG | 1001- | |
| 41 | 07002-01823 | O-RING (KIT) | 1001- | |
| 42 | 07000-05495 | O-RING (KIT) | 1001- | |
| 43 | 285-35-11820 | ELBOW | 1001- | |
| 44 | 561-33-62690 | BRACKET | 1001- | |
| 45 | 08036-01814 | CLIP | 1001- | |
| 46 | 01010-51016 | BOLT | 1001- | |
| 47 | 01643-51032 | WASHER | 1001- | |
| 48 | 568-33-11511 | SEAL (KIT) | 1001- | |
| 49 | 07042-00312 | PLUG | 1001- |
