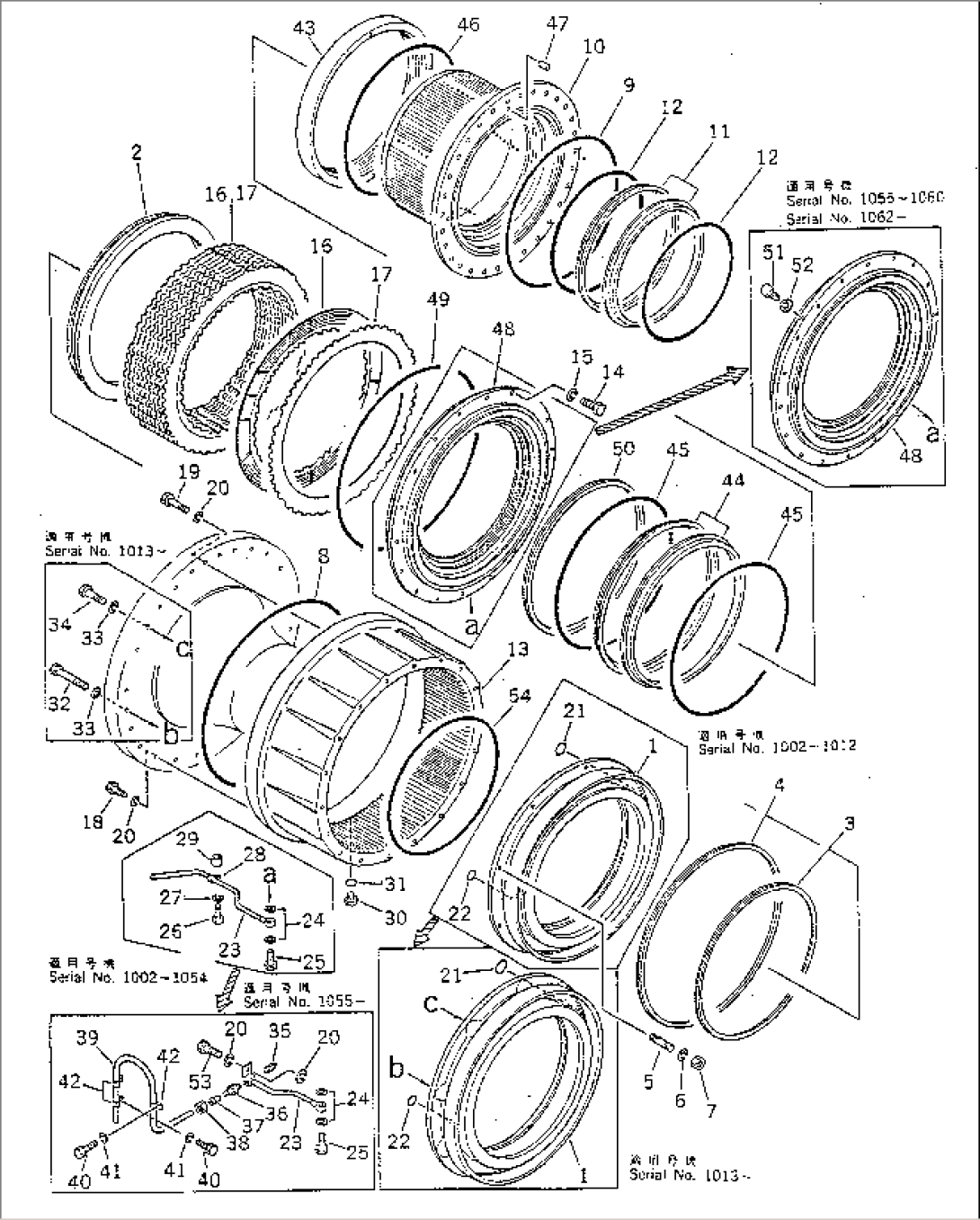

| Item | Part No. | Part Name | Qty | Serial No. |
| 568-33-11003 | REAR BRAKE ASS'Y | 1055-1087 | ||
| \0\568-33-11002 | REAR BRAKE ASS'Y | 1013-1054 | ||
| 568-33-11001 | REAR BRAKE ASS'Y | 1002-1012 | ||
| 1 | 568-33-11112 | CYLINDER | 1013-1087 | |
| 1 | 568-33-11111 | CYLINDER | 1002-1012 | |
| 2 | 568-33-11141 | PISTON | 1002-@ | |
| 3 | 568-33-11520 | PACKING (KIT) | 1002-@ | |
| 4 | 568-33-11530 | PACKING (KIT) | 1002-@ | |
| 5 | 01124-51235 | STUD | 1002-1012 | |
| 6 | 01602-21236 | WASHER | 1002-1012 | |
| 7 | 01580-11210 | NUT | 1002-1012 | |
| 8 | 568-33-11430 | O-RING (KIT) | 1013-@ | |
| 8 | 568-33-11440 | O-RING (KIT) | 1002-1012 | |
| 9 | 07000-05500 | O-RING (KIT) | 1002-@ | |
| 10 | 568-33-11314 | GEAR | 1088-@ | |
| 10 | \0\568-33-11313 | GEAR | 1079-1087 | |
| 10 | \0\568-33-11312 | GEAR | 1002-1078 | |
| 287-33-00010 | FLOATING SEAL ASS'Y | 1079-@ | ||
| \0\180-27-00011 | FLOATING SEAL ASS'Y | 1002-1078 | ||
| 11 | 287-33-00090 | SEAL RING ASS'Y | 1079-@ | |
| 11 | \0\180-27-00090 | SEAL RING ASS'Y | 1002-1078 | |
| 11 | \6\ | RING,SEAL | 1079-@ | |
| 11 | \6\ | RING,SEAL | 1002-1078 | |
| 12 | \6\ | O-RING ASS'Y | 1002-@ | |
| 12 | 180-27-11620 | O-RING | 1002-@ | |
| 13 | 568-33-11212 | GEAR | 1013-@ | |
| 13 | 568-33-11211 | GEAR | 1002-1012 | |
| 14 | 01010-51445 | BOLT | 1002-@ | |
| 15 | 01602-21442 | WASHER | 1002-@ | |
| 16 | 568-33-11334 | DISC | 1044-@ | |
| 16 | \0\568-33-11333 | DISC | 1013-1043 | |
| 16 | \0\568-33-11332 | DISC | 1002-1012 | |
| 17 | 568-33-11231 | PLATE | 1002-@ | |
| 18 | 01010-81860 | BOLT | 1055-1087 | |
| 18 | 01010-81860 | BOLT | 1002-1054 | |
| 19 | 01010-81890 | BOLT | 1002-1087 | |
| 20 | 01602-21854 | WASHER | 1055-1087 | |
| 20 | 01602-21854 | WASHER | 1002-1054 | |
| 21 | 07000-02021 | O-RING (KIT) | 1002-1087 | |
| 22 | 07000-02021 | O-RING (KIT) | 1002-1087 | |
| 23 | 568-33-11621 | TUBE | 1055-@ | |
| 23 | 568-33-11620 | TUBE | 1002-1054 | |
| 24 | 07005-01012 | GASKET (KIT) | 1002-@ | |
| 25 | 07206-10610 | BOLT | 1002-@ | |
| 26 | 01010-50816 | BOLT | 1002-1054 | |
| 27 | 01602-00825 | WASHER | 1002-1054 | |
| 28 | 04434-00608 | CLIP | 1002-1054 | |
| 29 | 01571-00814 | SEAT | 1002-1087 | |
| 30 | 568-33-11260 | PLUG | 1002-@ | |
| 31 | 07002-01823 | O-RING (KIT) | 1002-@ | |
| 32 | 01010-51255 | BOLT | 1013-1087 | |
| 33 | 01602-21236 | WASHER | 1013-1087 | |
| 34 | 01010-51285 | BOLT | 1013-1087 | |
| 35 | 07042-20108 | PLUG | 1055-@ | |
| 36 | 07836-00410 | CONNECTOR | 1055-@ | |
| 37 | 07831-00411 | SLEEVE | 1055-@ | |
| 38 | 07832-00410 | NUT | 1055-@ | |
| 29 | 07822-00408 | TUBE | 1055-@ | |
| 40 | 01010-50816 | BOLT | 1055-1087 | |
| 41 | 01602-00825 | WASHER | 1055-1087 | |
| 42 | 04434-00608 | CLIP | 1055-1087 | |
| 568-33-00023 | FLOATING SEAL A. | 1062-@ | ||
| \0\568-33-00022 | FLOATING SEAL A. | 1061-1061 | ||
| \0\568-33-00022 | FLOATING SEAL A. | 1055-1057 | ||
| \0\568-33-00021 | FLOATING SEAL A. | 1044-1054 | ||
| \0\568-33-00020 | FLOATING SEAL A. | 1002-1043 | ||
| 43 | \6\ | RETAINER | 1062-@ | |
| 43 | \6\ | RETAINER | 1061-1061 | |
| 43 | \6\ | RETAINER | 1058-1060 | |
| 43 | \6\ | RETAINER | 1055-1057 | |
| 43 | \6\ | RETAINER | 1044-1054 | |
| 43 | \6\ | RETAINER | 1002-1043 | |
| 44 | \6\ | RING,SEAL | 1044-@ | |
| 44 | \6\ | SEAL | 1002-1043 | |
| 45 | \6\ | O-RING | 1062-@ | |
| 45 | \6\ | O-RING | 1061-1061 | |
| 45 | \6\ | O-RING | 1058-1060 | |
| 45 | \6\ | O-RING | 1002-1057 | |
| 46 | 566-09-31110 | O-RING (KIT) | 1079-@ | |
| 46 | \0\568-33-11410 | O-RING (KIT) | 1002-1078 | |
| 47 | 04020-01024 | PIN | 1079- | |
| 47 | 04020-01024 | PIN | 1002-1078 | |
| 48 | \6\ | HUB | 1062-@ | |
| 48 | \6\ | HUB | 1061-1061 | |
| 48 | \6\ | HUB | 1058-1060 | |
| 48 | \6\ | HUB | 1055-1057 | |
| 48 | \6\ | HUB | 1044-1054 | |
| 48 | \6\ | HUB | 1002-1043 | |
| 49 | 568-33-11430 | O-RING (KIT) | 1002-@ | |
| 50 | 568-33-11510 | SEAL (KIT) | 1002-@ | |
| 51 | 07047-11007 | PLUG | 1062-@ | |
| 51 | 07040-11007 | PLUG | 1055-1060 | |
| 52 | 07005-01012 | GASKET | 1062-@ | |
| 52 | 07005-01012 | GASKET | 1055-1060 | |
| 53 | 01010-81870 | BOLT | 1055-@ | |
| 54 | 07000-05500 | O-RING | 1002-@ |
