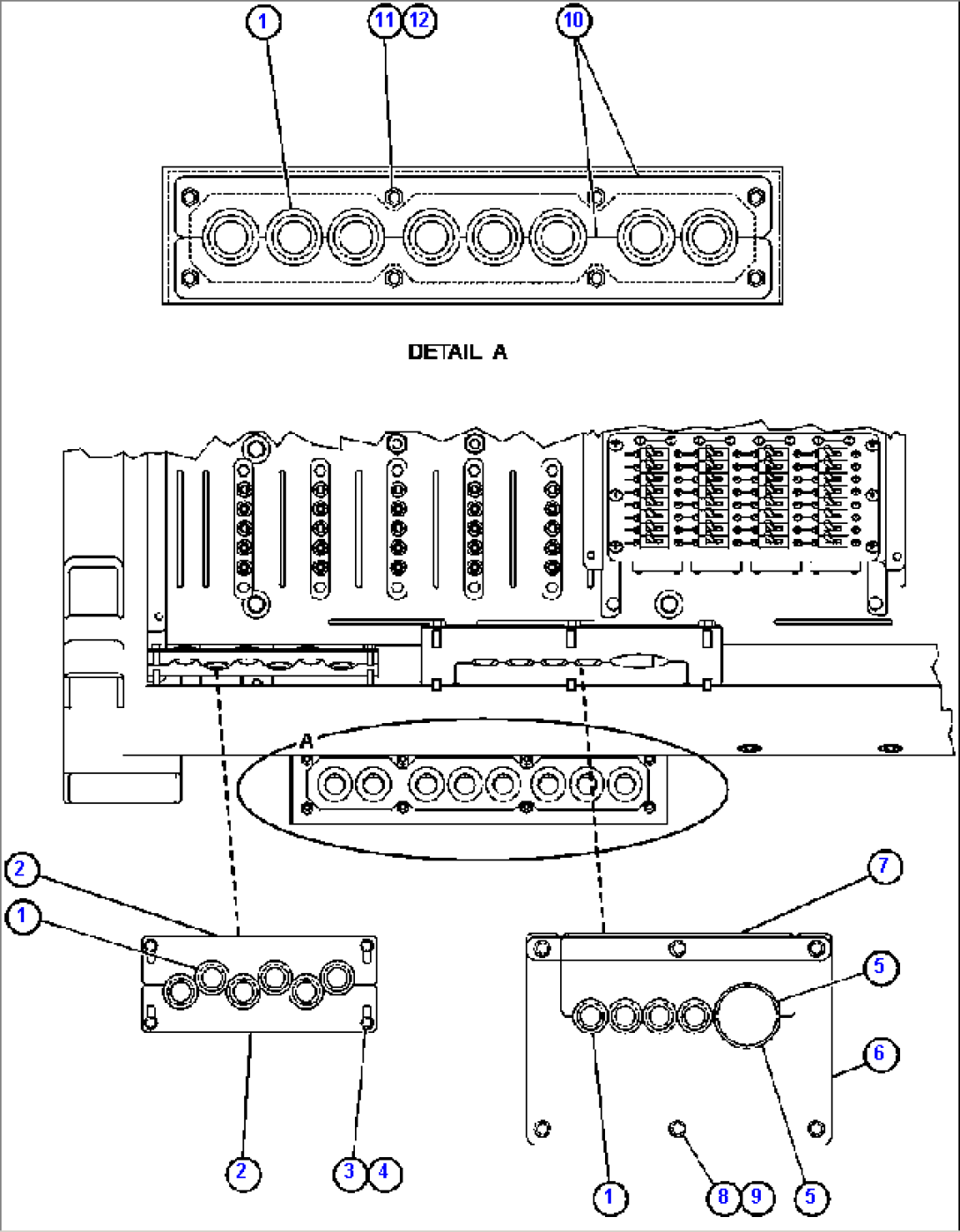

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TR8279 | GROMMET, RUBBER | ||
| 2 | EF8786 | SHEET, COVER (HALF) | ||
| 3 | MM0022 | CAPSCREW - M8 X 1.25 X 20 | ||
| 4 | MM0703 | FLAT WASHER - M8 | ||
| 5 | EG8436 | TRIM, LOCK EDGE (HALF) | ||
| 6 | EG8433 | SHEET, GROMMET MOUNT | ||
| 7 | EG8435 | SHEET, GROMMET MOUNT | ||
| 8 | MM0042 | CAPSCREW - M10 X 1.50 X 25 | ||
| 9 | MM0704 | FLAT WASHER - M10 | ||
| 10 | EG2481 | SHEET, GROMMET MOUNT (HALF) | ||
| 11 | MM0019 | CAPSCREW - M6 X 1.00 X 16 | ||
| 12 | MM0702 | FLAT WASHER - M6 |
