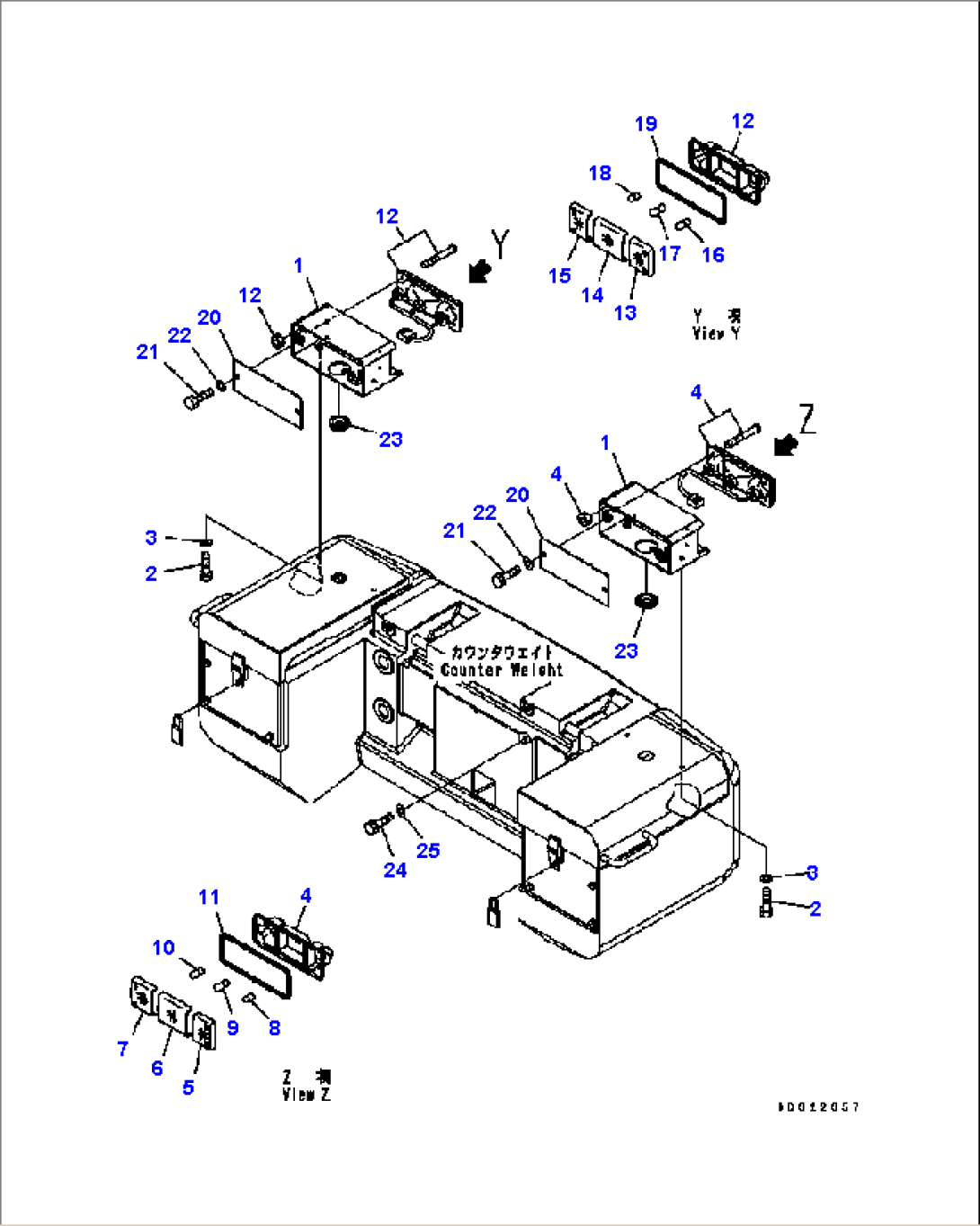

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-31541 | BRACKET | B10001- | |
| 2 | 01010-D1020 | BOLT | B10001- | |
| 3 | 01643-71032 | WASHER | B10001- | |
| 4 | 418-06-33230 | LAMP ASS'Y | B10001- | |
| 5 | 23A-06-21410 | LENS | B10001- | |
| 6 | 23A-06-21420 | LENS | B10001- | |
| 7 | 23A-06-21430 | LENS | B10001- | |
| 8 | 08105-12420 | BULB¤ 25W | B10001- | |
| 9 | 08104-12420 | BULB¤ 25/10W | B10001- | |
| 10 | 08110-12410 | BULB¤ 12W | B10001- | |
| 11 | 23A-06-21440 | GASKET | B10001- | |
| 12 | 418-06-33260 | LAMP ASS'Y | B10001- | |
| 13 | 23A-06-21510 | LENS | B10001- | |
| 14 | 23A-06-21520 | LENS | B10001- | |
| 15 | 23A-06-21530 | LENS | B10001- | |
| 16 | 08105-12420 | BULB¤ 25W | B10001- | |
| 17 | 08104-12420 | BULB¤ 25/10W | B10001- | |
| 18 | 08110-12410 | BULB¤ 12W | B10001- | |
| 19 | 23A-06-21440 | GASKET | B10001- | |
| 20 | 419-06-23420 | PLATE | B10001- | |
| 21 | 01010-D1020 | BOLT | B10001- | |
| 22 | 01643-71032 | WASHER | B10001- | |
| 23 | 08037-03614 | GROMMET | B10001- | |
| 24 | 01010-D1020 | BOLT | B10001- | |
| 25 | 01643-71032 | WASHER | B10001- |
