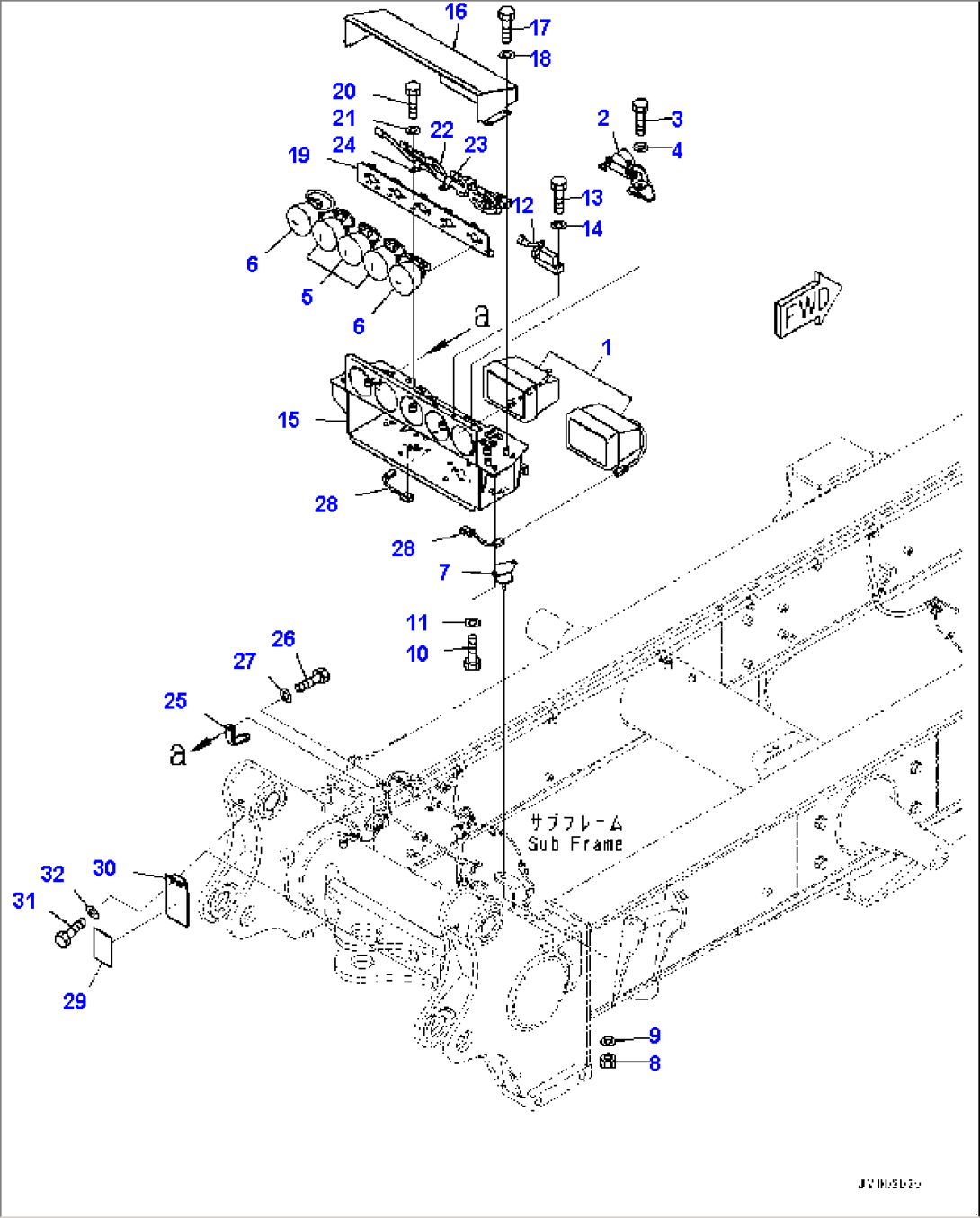

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21T-06-33930 | Lamp Assembly, Working | 2633- | |
| 21T-06-33970 | Bulb, 24/42watt | 2633- | ||
| 2 | 22B-06-21930 | Backup Alarm | 2633- | |
| 3 | 01010-80820 | Bolt | 2633- | |
| 4 | 01643-30823 | Washer | 2633- | |
| 5 | 56D-06-34150 | Lamp Assembly, Tail | 2633- | |
| 6 | 56D-06-34160 | Lamp Assembly, Turn Signal | 2633- | |
| 7 | 565-03-11270 | Cushion | 2633- | |
| 8 | 01580-11008 | Nut | 2633- | |
| 9 | 01643-31032 | Washer | 2633- | |
| 10 | 01010-80816 | Bolt | 2633- | |
| 11 | 01643-30823 | Washer | 2633- | |
| 12 | 7861-93-5380 | Sensor, Angle | 2633- | |
| 13 | 01010-80630 | Bolt | 2633- | |
| 14 | 01643-30623 | Washer | 2633- | |
| 15 | 56B-85-27420 | Bracket | 2633- | |
| 16 | 56B-06-15180 | Bracket | 2633- | |
| 17 | 01010-80816 | Bolt | 2633- | |
| 18 | 01643-30823 | Washer | 2633- | |
| 19 | 56B-85-27430 | Bracket | 2633- | |
| 20 | 01010-81020 | Bolt | 2633- | |
| 21 | 01643-31032 | Washer | 2633- | |
| 22 | 56B-85-27450 | Wiring Harness | 2633- | |
| 23 | 04434-51712 | Clip | 2633- | |
| 24 | 04434-51412 | Clip | 2633- | |
| 25 | 425-62-34590 | Bracket | 2633- | |
| 26 | 01010-81025 | Bolt | 2633- | |
| 27 | 01643-31032 | Washer | 2633- | |
| 28 | 56B-85-27460 | Wiring Harness | 2633- | |
| 29 | 14X-98-35181 | Plate, Reflector | 2633- | |
| 30 | 56B-85-27470 | Plate | 2633- | |
| 31 | 01010-81016 | Bolt | 2633- | |
| 32 | 01643-31032 | Washer | 2633- |
