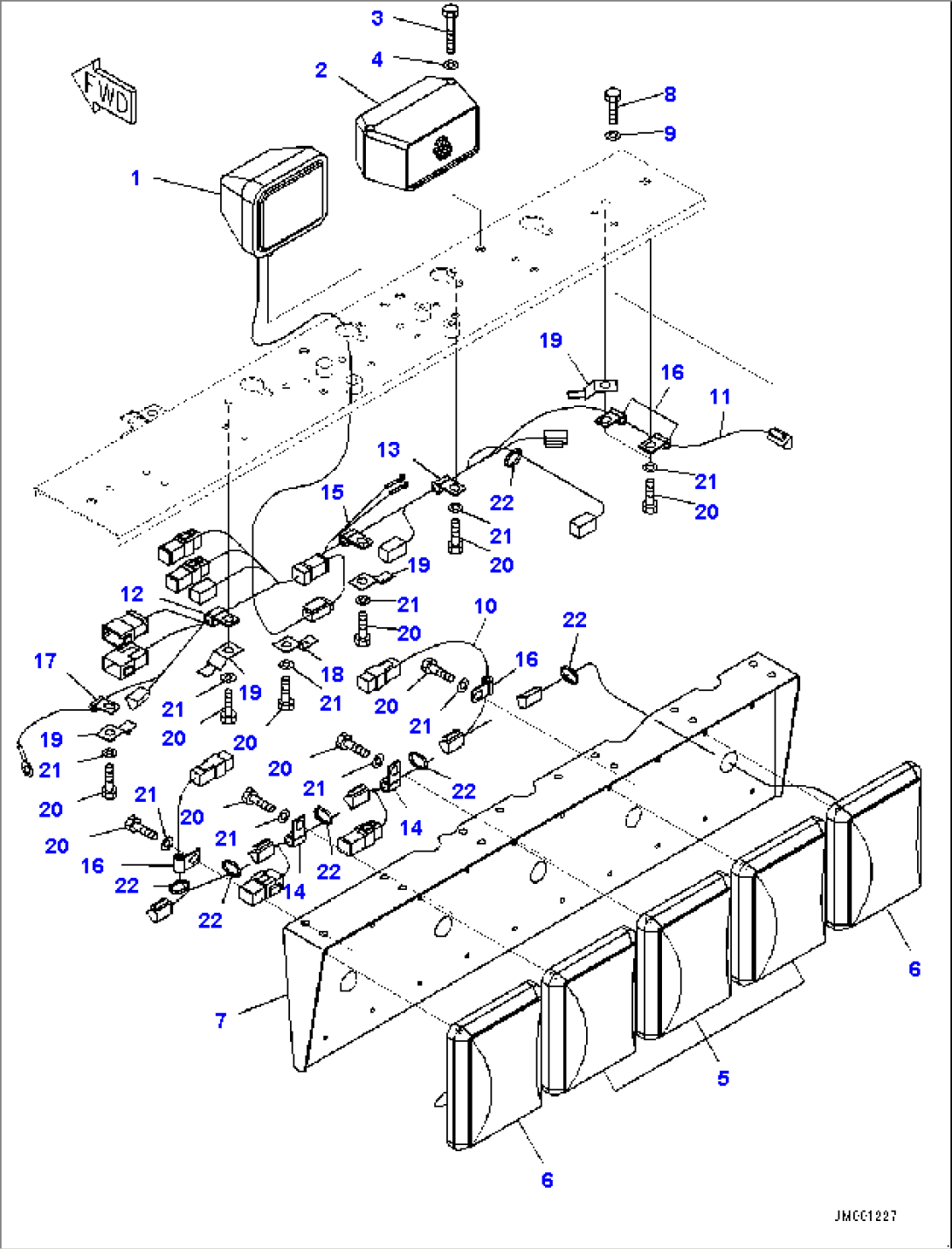

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23350 | Lamp Assembly | 8832- | |
| 1 | 421-06-23320 | Lens | 8832- | |
| 1 | 421-06-23330 | Bulb, 70watt | 8832- | |
| 2 | 08164-B0000 | Alarm, Back-up | 8832- | |
| 3 | 01010-81095 | Bolt | 8832- | |
| 4 | 01643-31032 | Washer | 8832- | |
| 5 | 561-06-85620 | Lamp, LED Red | 8832- | |
| 6 | 561-06-85630 | Lamp, LED Amber | 8832- | |
| 7 | 561-06-85660 | Bracket | 8832- | |
| 8 | 01010-80820 | Bolt | 8832- | |
| 9 | 01643-30823 | Washer | 8832- | |
| 10 | 561-06-85611 | Wiring Harness | 8832- | |
| 11 | 561-06-83272 | Wiring Harness | 8832- | |
| 12 | 04434-52210 | Clip | 8832- | |
| 13 | 04434-51710 | Clip | 8832- | |
| 14 | 04434-51210 | Clip | 8832- | |
| 15 | 04434-51010 | Clip | 8832- | |
| 16 | 04434-50810 | Clip | 8832- | |
| 17 | 04434-50510 | Clip | 8832- | |
| 18 | 08053-01510 | Clip | 8832- | |
| 19 | 08193-21012 | Clip | 8832- | |
| 20 | 01010-81016 | Bolt | 8832- | |
| 21 | 01643-31032 | Washer | 8832- | |
| 22 | 08034-20414 | Band, Black | 8832- |
