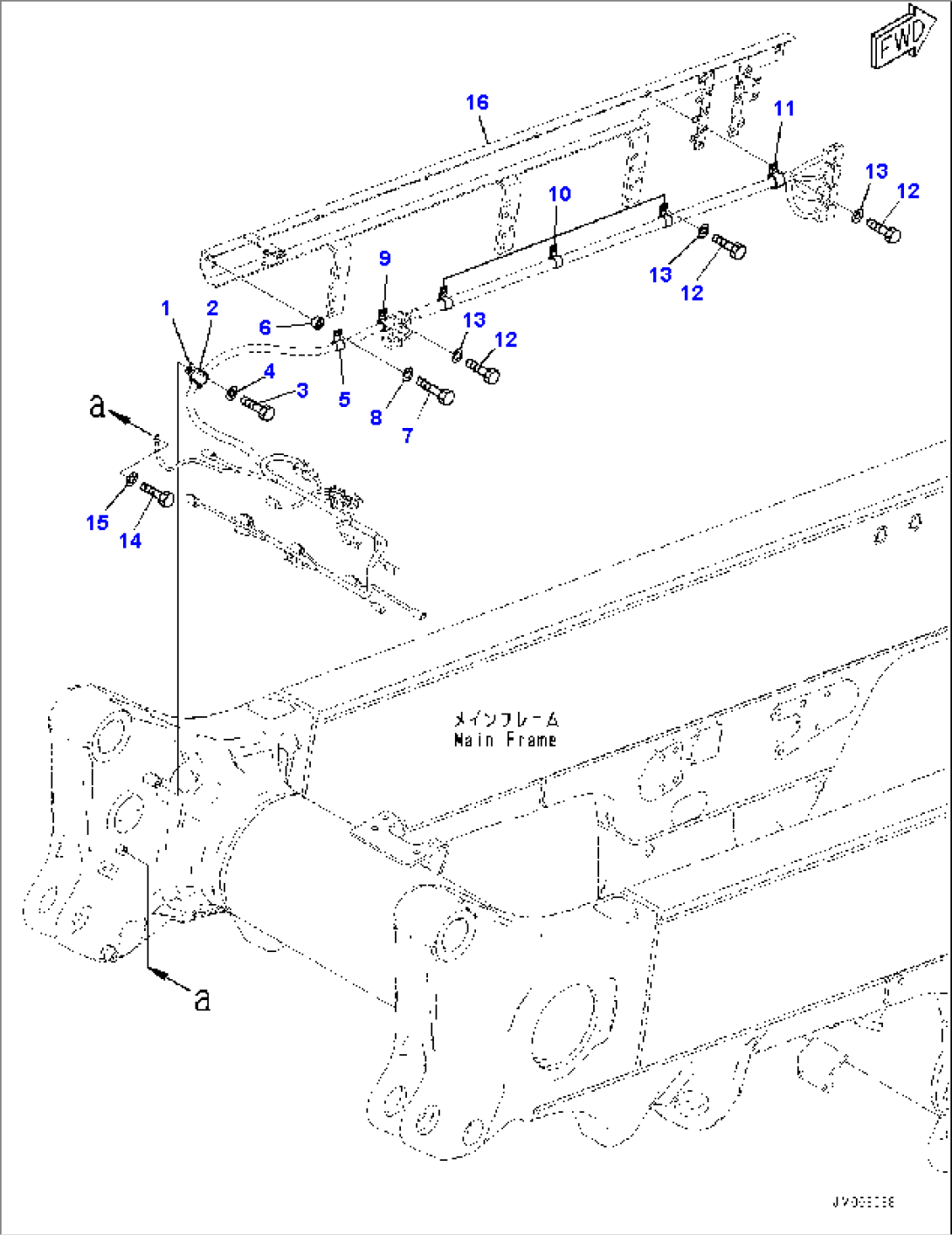

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-52712 | Clip | 30001- | |
| 2 | 07095-20420 | Cushion | 30001- | |
| 3 | 01010-81220 | Bolt | 30001- | |
| 4 | 01643-31232 | Washer | 30001- | |
| 5 | 04434-51512 | Clip | 30001- | |
| 6 | 23S-43-53140 | Spacer | 30001- | |
| 7 | 01010-81235 | Bolt | 30001- | |
| 8 | 01643-31232 | Washer | 30001- | |
| 9 | 04434-51912 | Clip | 30001- | |
| 10 | 04434-52112 | Clip | 30001- | |
| 11 | 04434-52512 | Clip | 30001- | |
| 12 | 01010-81225 | Bolt | 30001- | |
| 13 | 01643-31232 | Washer | 30001- | |
| 14 | 01010-81016 | Bolt | 30001- | |
| 15 | 01643-31032 | Washer | 30001- | |
| 16 | (569-06-8L641) | Bracket | - |
