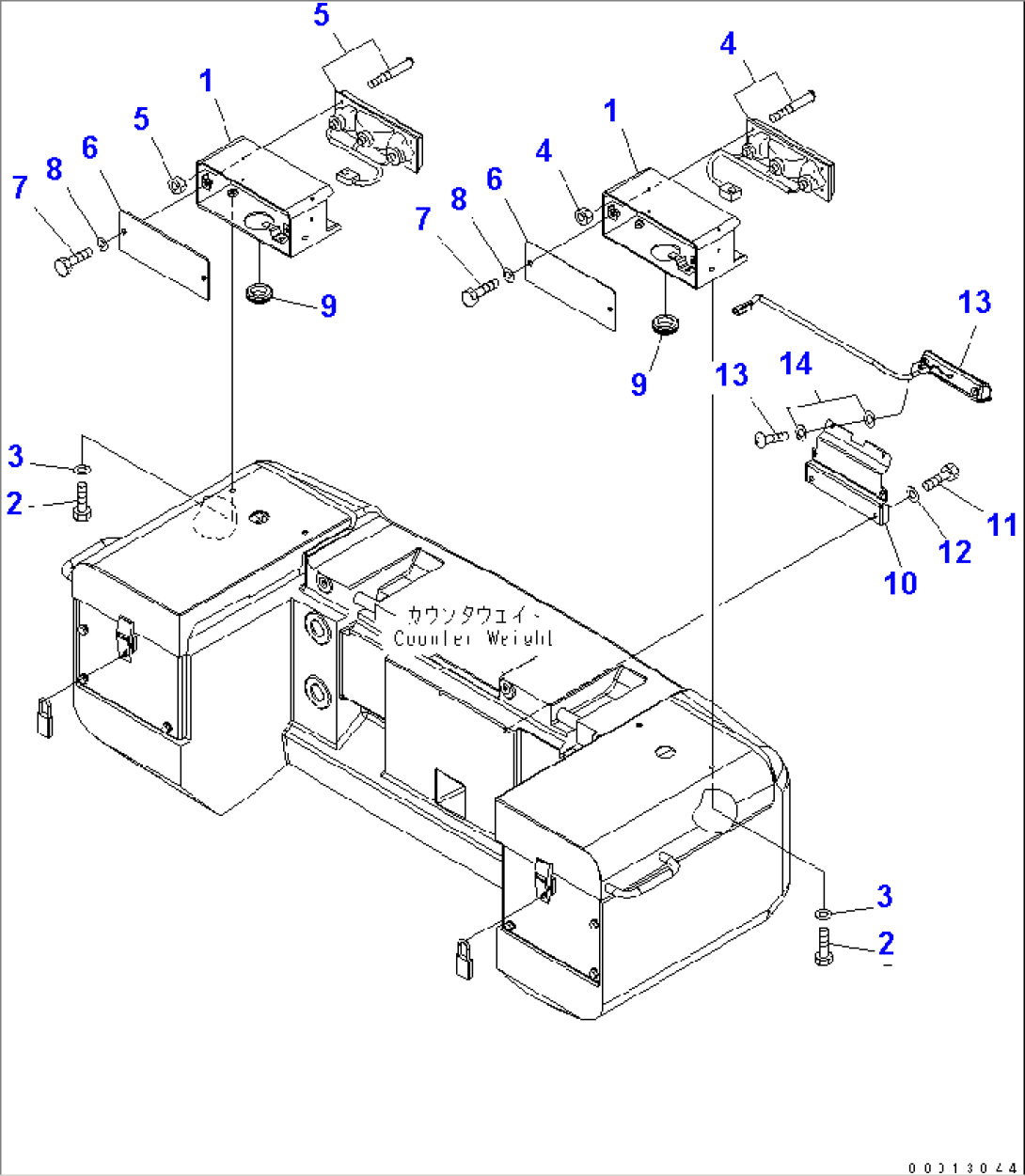

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-31541 | BRACKET | 70001- | |
| 2 | 01010-D1020 | BOLT | 70001- | |
| 3 | 01643-71032 | WASHER | 70001- | |
| 4 | 418-06-33230 | LAMP ASS'Y,L.H. | 70001- | |
| 4 | 01235-40530 | SCREW | 70001- | |
| 4 | 01584-00504 | NUT | 70001- | |
| 5 | 418-06-33260 | LAMP ASS'Y,R.H. | 70001- | |
| 5 | 01235-40530 | SCREW | 70001- | |
| 5 | 01584-00504 | NUT | 70001- | |
| 6 | 419-06-23420 | PLATE | 70001- | |
| 7 | 01010-D1020 | BOLT | 70001- | |
| 8 | 01643-71032 | WASHER | 70001- | |
| 9 | 08037-03614 | GROMMET | 70001- | |
| 10 | 418-06-31183 | BRACKET | 70001- | |
| 11 | 01010-81020 | BOLT | 70001- | |
| 12 | 01643-31032 | WASHER | 70001- | |
| 13 | 418-06-31221 | LAMP | 70001- | |
| 13 | 08110-12410 | BULB, 12W | 70001- | |
| 14 | 01640-20508 | WASHER | 70001- |
