| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-53521 | Cover | 80001- | |
| 2 | 09467-00002 | Spring | 80001- | |
| 3 | 09467-00006 | Spring | 80001- | |
| 4 | 14X-54-53530 | Bracket | 80001- | |
| 5 | 205-60-71220 | Lock Assembly | 80001- | |
| 6 | 01010-81235 | Bolt | 80001- | |
| 7 | 01643-31232 | Washer | 80001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D65px 16 s/n 80001 up
- Guards and covers
- Rear cover (#80001 )
Поиск по каталогу

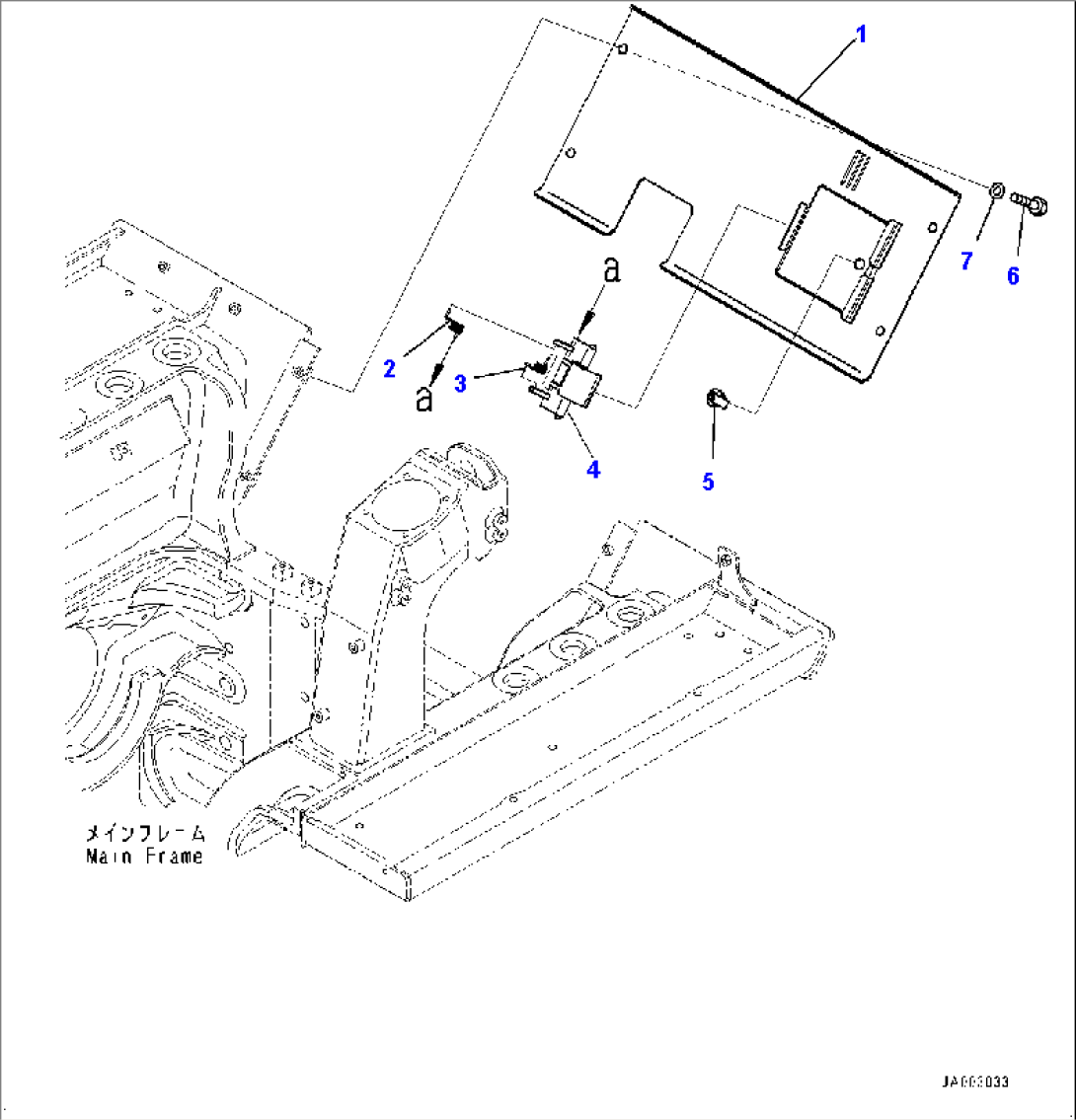

Rear Cover (#80001-)
