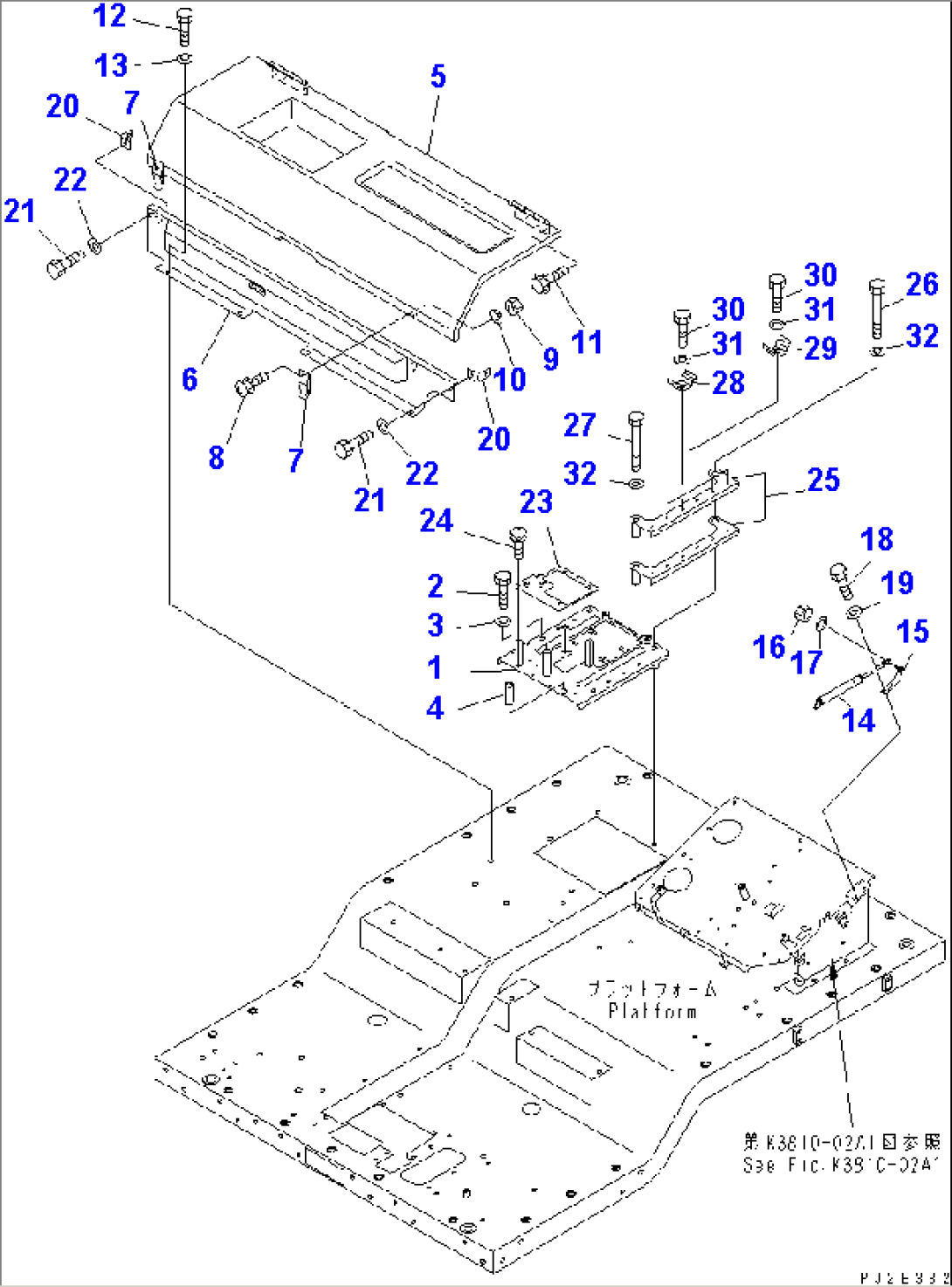

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-63324 | BRACKET | 4001-@ | |
| 2 | 01010-81295 | BOLT | 4001-@ | |
| 3 | 01643-31232 | WASHER | 4001-@ | |
| 4 | 569-54-64361 | PIPE | 4001-@ | |
| 566-54-6C300 | COVER ASS'Y | 4001-4318 | ||
| 5 | 566-54-6C360 | COVER | 4001-4318 | |
| 6 | 566-54-6C370 | COVER | 4001-4318 | |
| 7 | 569-54-63380 | LATCH | 4001-@ | |
| 8 | 01023-20412 | SCREW | 4001-4318 | |
| 9 | 01580-10403 | NUT | 4001-4318 | |
| 10 | 01640-20408 | WASHER | 4001-4318 | |
| 11 | 01435-00612 | BOLT | 4001-@ | |
| 12 | 01010-81025 | BOLT | 4001-@ | |
| 13 | 01643-31032 | WASHER | 4001-@ | |
| 14 | 569-54-64110 | SPRING | 4001-@ | |
| 15 | 566-54-6C350 | BRACKET | 4001-4318 | |
| 16 | 01598-00809 | NUT | 4001-@ | |
| 17 | 01643-30823 | WASHER | 4001-@ | |
| 18 | 01010-80620 | BOLT | 4001-@ | |
| 19 | 01643-30623 | WASHER | 4001-@ | |
| 20 | 569-54-63442 | BRACKET | 4001-@ | |
| 21 | 01010-81020 | BOLT | 4001-@ | |
| 22 | 01643-31032 | WASHER | 4001-@ | |
| 23 | 569-40-65541 | BRACKET | 4001-@ | |
| 24 | 01023-20620 | SCREW | 4001-@ | |
| 25 | 561-54-63770 | BRACKET | 4001-@ | |
| 26 | 01011-81250 | BOLT | 4001-@ | |
| 27 | 427-62-15260 | BOLT | 4001-@ | |
| 28 | 08053-15010 | CLIP | 4001-@ | |
| 29 | 08053-16210 | CLIP | 4001-@ | |
| 30 | 01010-81016 | BOLT | 4001-@ | |
| 31 | 01643-31032 | WASHER | 4001-@ | |
| 32 | 01643-31232 | WASHER | 4001-@ |
