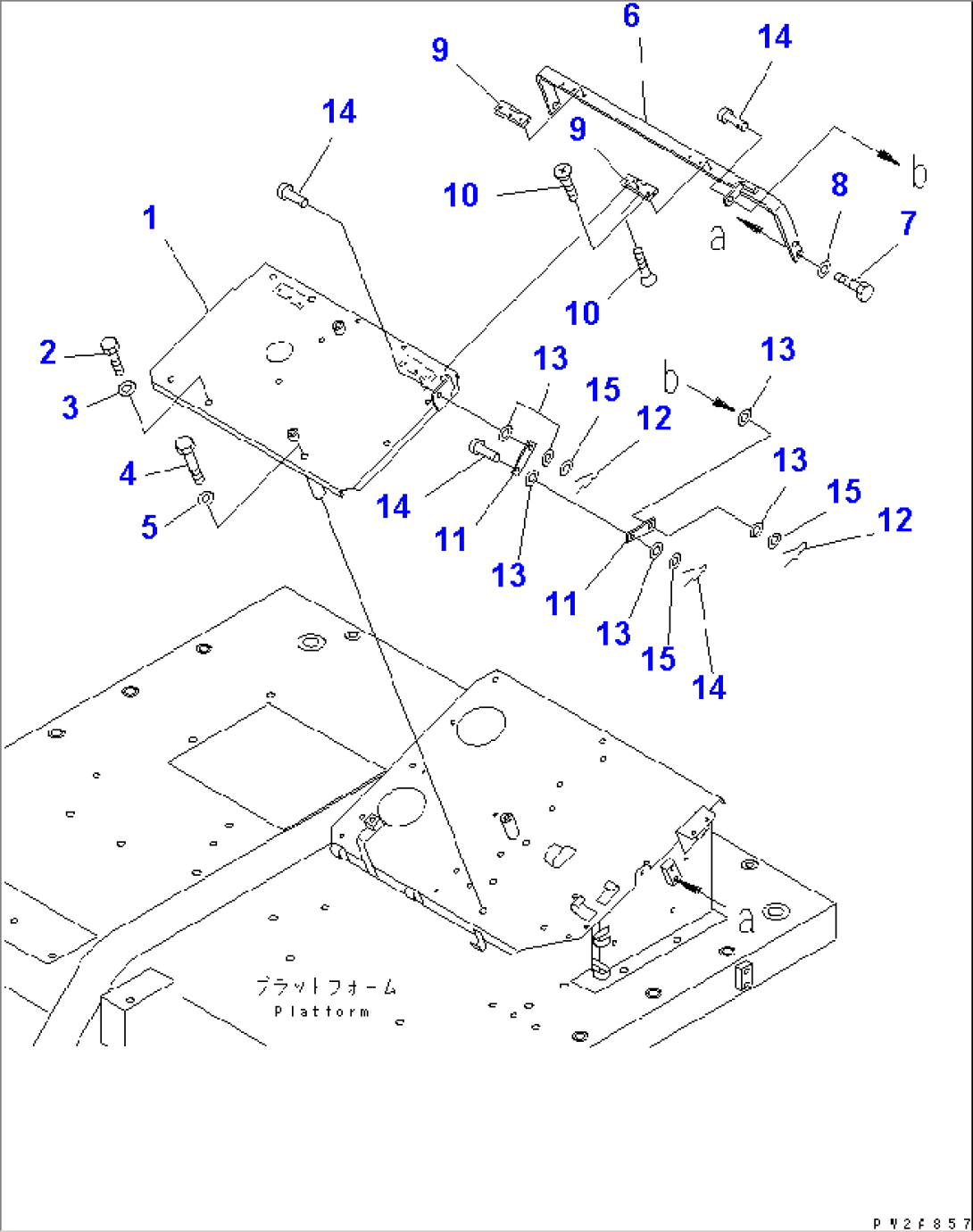

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-88-61750 | BRACKET | 4001- | |
| 2 | 01010-81025 | BOLT | 4001- | |
| 3 | 01643-31032 | WASHER | 4001- | |
| 4 | 01011-81035 | BOLT | 4001- | |
| 5 | 01643-31032 | WASHER | 4001- | |
| 6 | 561-54-63760 | BRACKET | 4001- | |
| 7 | 01010-81025 | BOLT | 4001- | |
| 8 | 01643-31032 | WASHER | 4001- | |
| 9 | 09455-03016 | HINGE | 4001- | |
| 10 | 01224-40410 | SCREW | 4001- | |
| 11 | 20Y-26-12290 | PLATE | 4001- | |
| 12 | 04052-01038 | PIN | 4001- | |
| 13 | 01643-51032 | WASHER | 4001- | |
| 14 | 04205-31022 | PIN | 4001- | |
| 15 | 01642-21016 | WASHER | 4001- |
