| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-969-2632 | COVER | 1005- | |
| 2 | 205-60-71220 | LOCK ASS'Y | 1005- | |
| 3 | 04050-11610 | PIN | 1005- | |
| 4 | 04205-10618 | PIN | 1005- | |
| 5 | 09463-00006 | SPRING | 1005- | |
| 6 | 01010-81230 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85ms 15 s/n 1001 1005
- Guard
- Rear cover(#1005 )
Поиск по каталогу

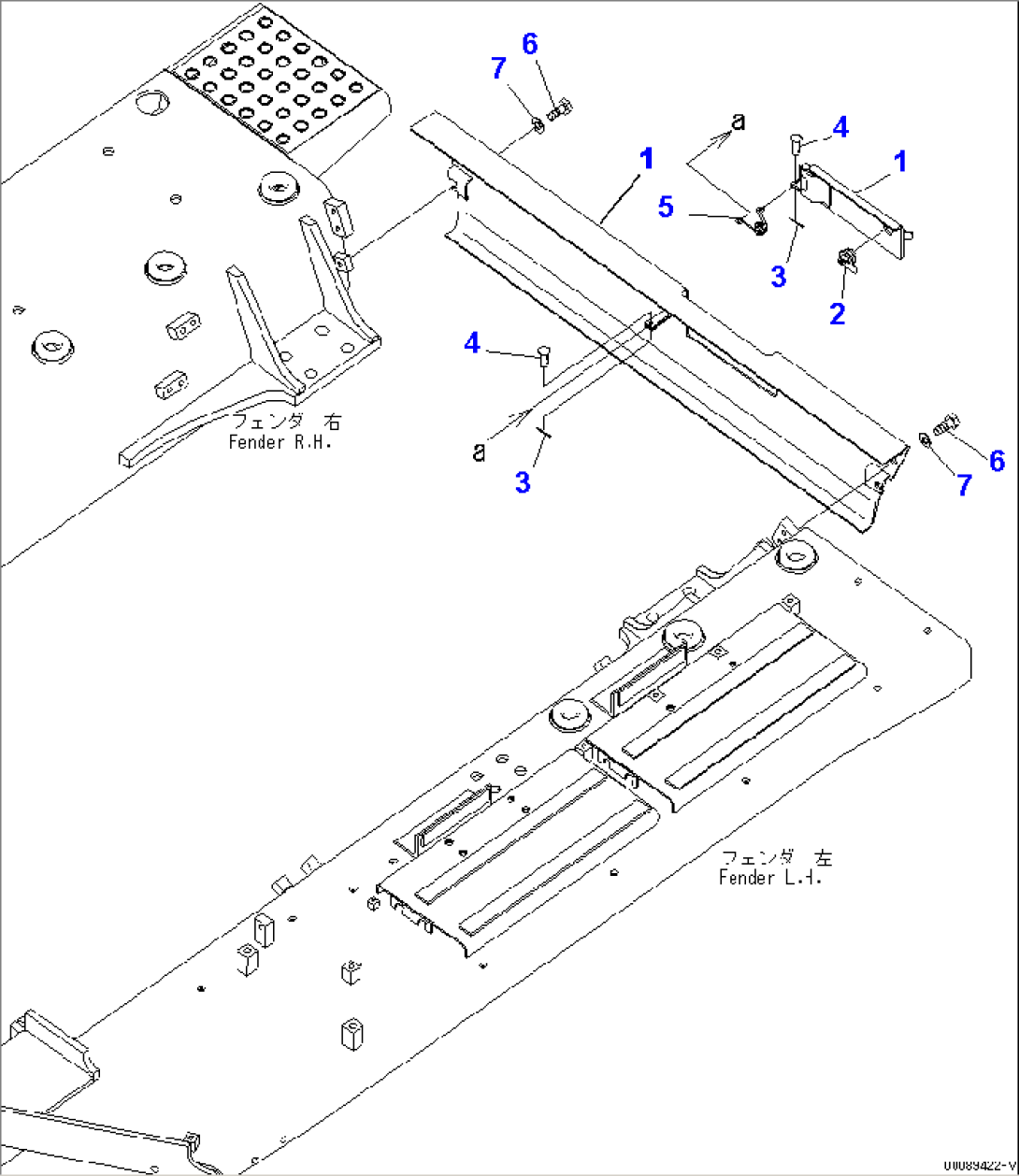

REAR COVER(#1005-)
