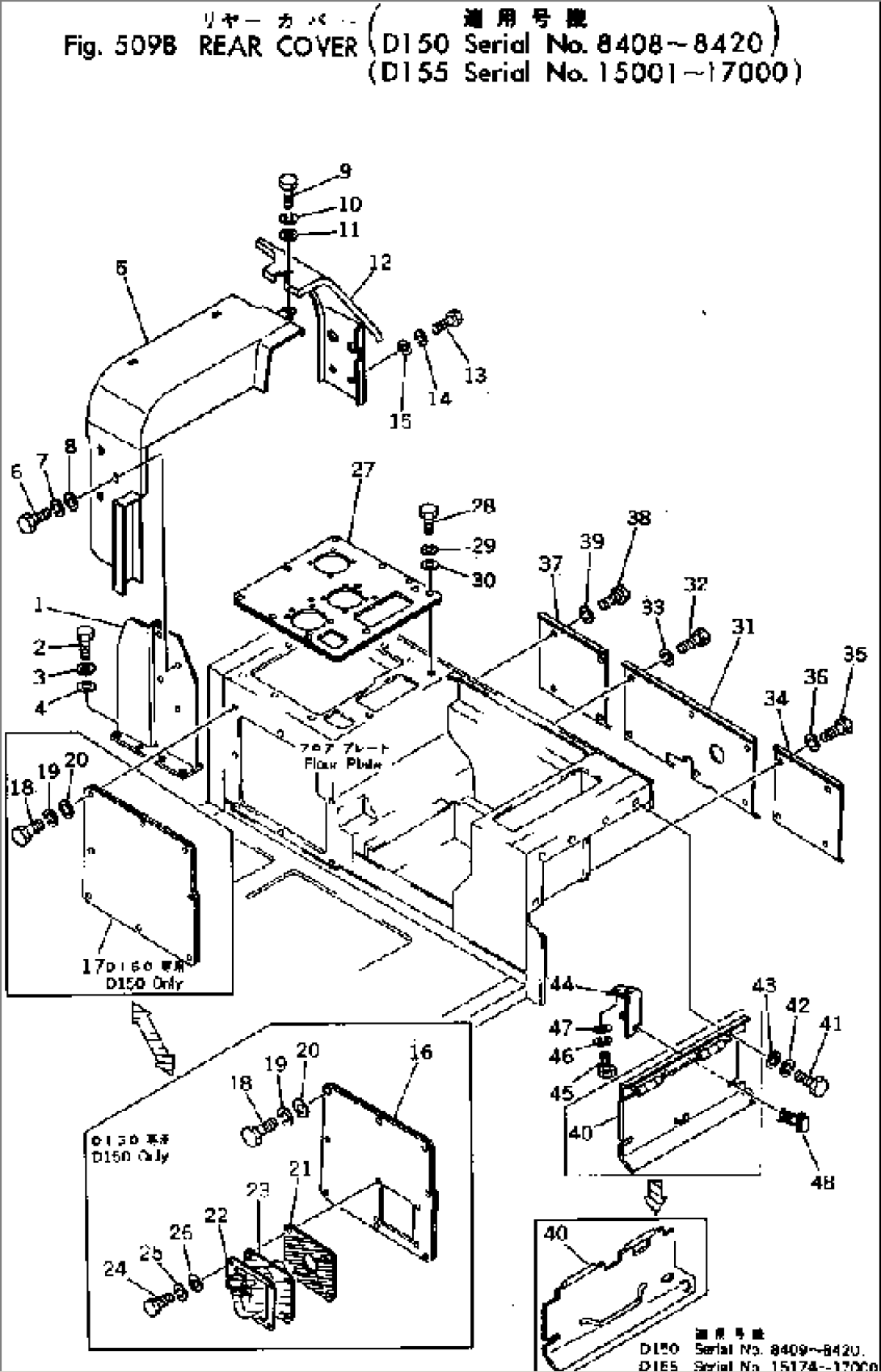

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 175-54-33240 | BRACKET | 8408-8420 | |
| 2 | 01010-31435 | BOLT | 8408-8420 | |
| 3 | 01602-01442 | WASHER | 8408-@ | |
| 4 | 01643-31445 | WASHER | 8408-@ | |
| 5 | 175-54-33570 | COVER | 8408-8420 | |
| 6 | 01010-31235 | BOLT | 8408-8420 | |
| 7 | 01602-01236 | WASHER | 8408-8420 | |
| 8 | 01643-31232 | WASHER | 8408-8420 | |
| 9 | 01010-31225 | BOLT | 8408-8420 | |
| 10 | 01602-01236 | WASHER | 8408-8420 | |
| 11 | 01643-31232 | WASHER | 8408-8420 | |
| 12 | 175-54-22612 | COVER | 8408-@ | |
| 13 | 01010-31235 | BOLT | 8408-8420 | |
| 14 | 01602-01236 | WASHER | 8408-8420 | |
| 15 | 01643-31232 | WASHER | 8408-8420 | |
| 16 | 170-54-21190 | COVER | 8408-8420 | |
| 17 | 175-54-33740 | COVER | 5507-5507 | |
| 18 | 01010-31235 | BOLT | 8408-8420 | |
| 19 | 01602-01236 | WASHER | 8408-@ | |
| 20 | 01643-31232 | WASHER | 8408-@ | |
| 21 | 170-54-21250 | SEAT | 8408-@ | |
| 22 | 170-54-21260 | PLATE | 8408-@ | |
| 23 | 170-54-21240 | COVER | 8408-8408 | |
| 24 | 01010-31230 | BOLT | 8408-@ | |
| 25 | 01602-01236 | WASHER | 8408-@ | |
| 26 | 01643-31232 | WASHER | 8408-@ | |
| 27 | 175-54-33730 | COVER | 8408-8420 | |
| 28 | 01010-31230 | BOLT | 8408-8420 | |
| 29 | 01602-01236 | WASHER | 8408-8420 | |
| 30 | 01643-31232 | WASHER | 8408-8420 | |
| 31 | 175-54-33850 | COVER | 8408-8420 | |
| 32 | 01010-31225 | BOLT | 8408-8420 | |
| 33 | 01602-01236 | WASHER | 8408-8420 | |
| 34 | 175-54-33860 | COVER | 8408-@ | |
| 35 | 01010-31225 | BOLT | 8408-@ | |
| 36 | 01602-01236 | WASHER | 8408-@ | |
| 37 | 175-54-33870 | COVER | 8408-@ | |
| 38 | 01010-31225 | BOLT | 8408-@ | |
| 39 | 01602-01236 | WASHER | 8408-@ | |
| 40 | 175-54-33312 | COVER | 8409-8420 | |
| 40 | 175-54-33311 | COVER | 8408-8408 | |
| 41 | 01010-31225 | BOLT | 8408-8420 | |
| 42 | 01602-01236 | WASHER | 8408-8420 | |
| 43 | 01643-31232 | WASHER | 8408-8420 | |
| 44 | 175-54-33780 | BRACKET | 8408-8420 | |
| 45 | 01010-31230 | BOLT | 8408-8420 | |
| 46 | 01602-01236 | WASHER | 8408-@ | |
| 47 | 01643-01232 | WASHER | 8408-8420 | |
| 48 | 09459-00000 | LOCK | 8408-@ |
