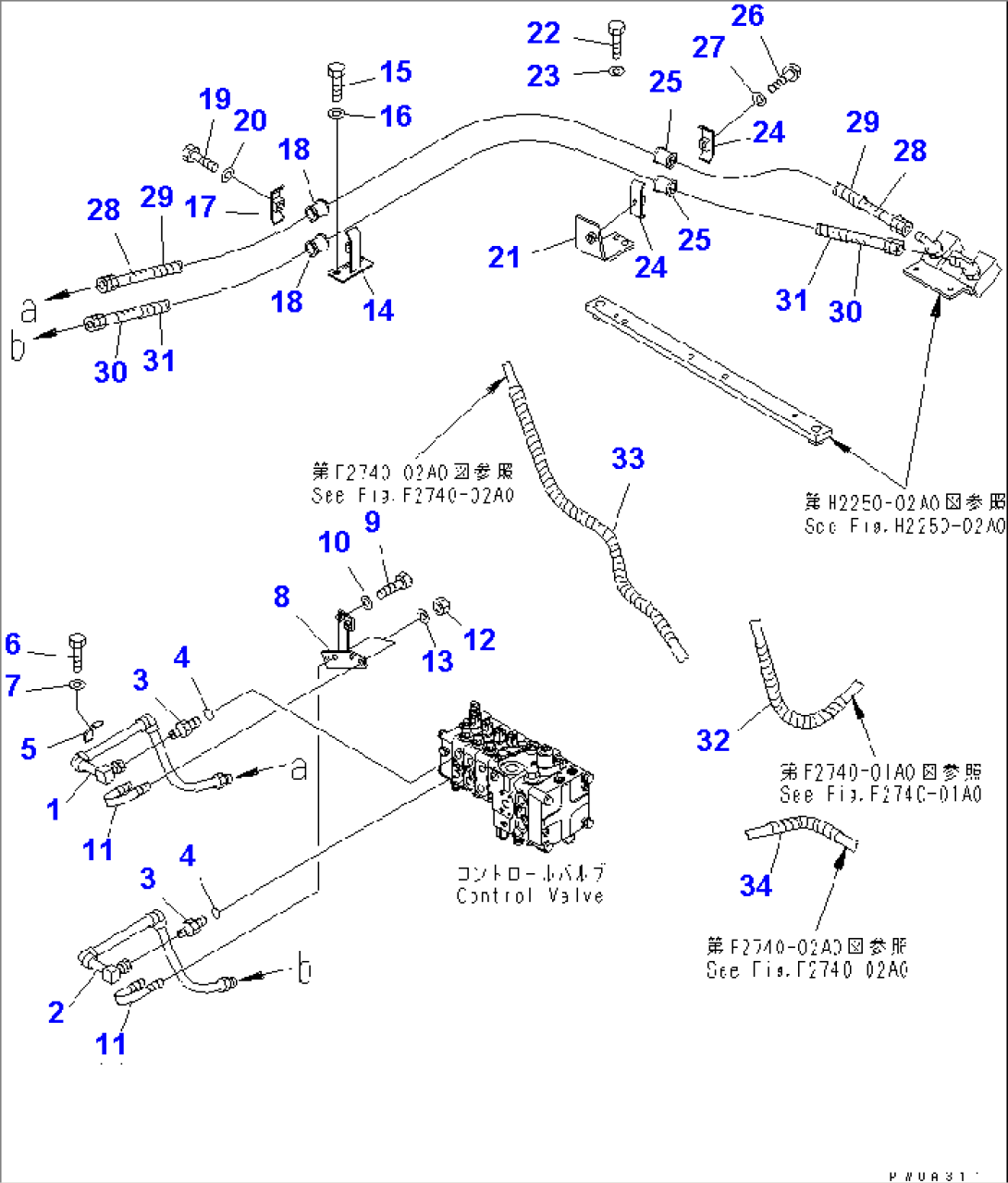

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-78-61710 | TUBE | 1172- | |
| 1 | 134-78-61810 | TUBE | 1001-1171 | |
| 2 | 134-78-61720 | TUBE | 1172- | |
| 2 | 134-78-61820 | TUBE | 1001-1171 | |
| 3 | 07230-20422 | UNION | 1001- | |
| 4 | 07002-12034 | O-RING | 1001- | |
| 5 | 175-914-2290 | CLAMP | 1001- | |
| 6 | 01010-81225 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 134-78-61653 | BRACKET | 1239- | |
| 8 | 134-78-61652 | BRACKET | 1224-1238 | |
| 8 | 134-78-61651 | BRACKET | 1172-1223 | |
| 8 | 134-78-61830 | BRACKET | 1001-1171 | |
| 9 | 01010-81230 | BOLT | 1172- | |
| 9 | 01010-81025 | BOLT | 1001-1171 | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 07283-32236 | CLIP | 1001- | |
| 12 | 01599-01011 | NUT | 1064- | |
| 12 | 01597-01009 | NUT | 1001-1063 | |
| 13 | 01643-31032 | WASHER | 1001- | |
| 14 | 134-78-61430 | BRACKET | 1001- | |
| 15 | 01010-81225 | BOLT | 1001- | |
| 16 | 01643-31232 | WASHER | 1001- | |
| 17 | 07094-30417 | CLAMP | 1001- | |
| 18 | 07095-00423 | CUSHION | 1001- | |
| 19 | 01010-81245 | BOLT | 1064- | |
| 19 | 01010-81240 | BOLT | 1001-1063 | |
| 20 | 01643-31232 | WASHER | 1001- | |
| 21 | 134-78-61440 | BRACKET | 1001- | |
| 22 | 01010-81230 | BOLT | 1001- | |
| 23 | 01643-31232 | WASHER | 1001- | |
| 24 | 07094-30417 | CLAMP | 1064- | |
| 24 | 07094-30417 | CLAMP | 1001-1063 | |
| 25 | 07095-00423 | CUSHION | 1001- | |
| 26 | 01010-81270 | BOLT | 1064- | |
| 26 | 01010-81265 | BOLT | 1001-1063 | |
| 27 | 01643-31232 | WASHER | 1001- | |
| 28 | 07086-00411 | HOSE | 1001- | |
| 29 | 08210-01806 | SPIRAL TUBE | 1001- | |
| 30 | 07086-004A9 | HOSE | 1001- | |
| 31 | 08210-01804 | SPIRAL TUBE | 1001- | |
| 32 | 08210-01803 | SPIRAL TUBE | 1001- | |
| 33 | 08210-01805 | SPIRAL TUBE | 1001- | |
| 34 | 08210-01802 | SPIRAL TUBE | 1001- |
