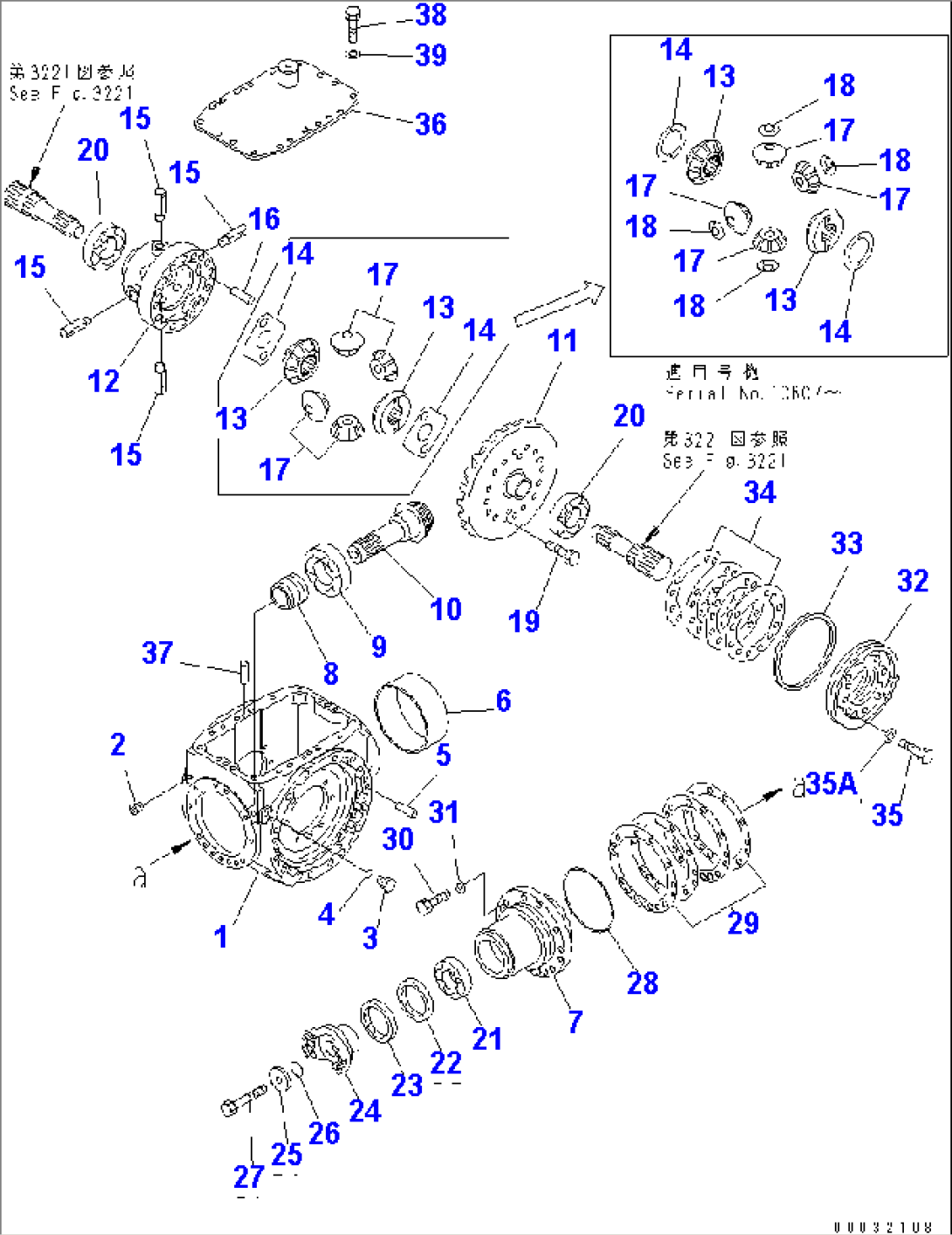

| Item | Part No. | Part Name | Qty | Serial No. |
| (418-23-10012) | AXLE ASS'Y | 12001- | ||
| \0\418-23-10011 | AXLE ASS'Y | 10607-11999 | ||
| \0\418-23-10010 | AXLE ASS'Y | 10001-10606 | ||
| 418-23-11032 | DIFFERENTIAL ASS'Y,REAR | 10607- | ||
| \0\418-23-11031 | DIFFERENTIAL ASS'Y,REAR | 10001-10606 | ||
| 1 | 418-23-13310 | HOUSING | 10001- | |
| 2 | 07043-50211 | PLUG | 10001- | |
| 3 | 07040-11209 | PLUG | 10001- | |
| 4 | 07002-01223 | O-RING | 10001- | |
| 5 | 04020-01228 | PIN,DOWEL | 10001- | |
| 6 | 418-23-11170 | SLEEVE | 10001- | |
| 7 | 418-23-11140 | CAGE | 10001- | |
| 8 | 418-22-11861 | SPACER | 10001- | |
| 9 | 418-22-11810 | BEARING | 10001- | |
| 418-22-11202 | PINION ASS'Y | 12409- | ||
| \1\418-22-11103 | GEAR ASS'Y | 10607-12408 | ||
| \3\418-22-11101 | PINION ASS'Y | 10001-10606 | ||
| (418-22-11103,418-22-11531(2), | ||||
| 418-22-11550(4),418-22-11412(4)) | ||||
| 10 | \6\ | PINION,GEAR | 12409- | |
| 10 | \6\ | PINION,GEAR | 10001-12408 | |
| 11 | \6\ | GEAR | 12409- | |
| 11 | \6\ | GEAR | 10607-12408 | |
| 11 | \6\ | GEAR | 10001-10606 | |
| 12 | 418-22-11513 | CARRIER | 10607- | |
| 12 | 418-22-11611 | CARRIER | 10001-10606 | |
| 13 | 418-22-11431 | GEAR | 10001- | |
| 14 | 418-22-11531 | WASHER | 10607- | |
| 14 | 418-22-11530 | WASHER | 10001-10606 | |
| 15 | 418-22-11412 | SHAFT | 10607- | |
| 15 | 418-22-11411 | SHAFT | 10001-10606 | |
| 16 | 418-22-11440 | PIN | 10001- | |
| 17 | 419-22-11420 | PINION | 10001- | |
| 18 | 418-22-11550 | WASHER | 10607- | |
| 19 | 01010-61645 | BOLT | 10001- | |
| 20 | 417-22-11850 | BEARING | 10001- | |
| 21 | 418-22-11820 | BEARING | 10001- | |
| 22 | 07012-00075 | SEAL | 10001- | |
| 23 | 418-23-11760 | SEAL | 10001- | |
| 24 | 418-23-11240 | COUPLING | 10001- | |
| 25 | 417-15-13770 | HOLDER | 10001- | |
| 26 | 07000-03040 | O-RING | 10001- | |
| 27 | 01011-61615 | BOLT | 10001- | |
| 28 | 07000-05160 | O-RING | 10001- | |
| 29 | 417-22-11360 | SHIM, 0.05MM | 10001- | |
| 29 | 417-22-11370 | SHIM, 0.2MM | 10001- | |
| 29 | 417-22-11380 | SHIM, 0.3MM | 10001- | |
| 29 | 417-22-11390 | SHIM, 0.8MM | 10001- | |
| 30 | 01010-61235 | BOLT | 10001- | |
| 31 | 01643-31232 | WASHER | 10001- | |
| 32 | 418-22-11160 | CARRIER | .- | |
| 32 | \3\417-22-11162 | CARRIER | 10001-. | |
| (418-22-11160,01643-51232(7)) | ||||
| 33 | 417-33-11430 | RING | 10001- | |
| 34 | 417-22-11461 | SHIM, 0.07MM | 10001- | |
| 34 | 417-22-11471 | SHIM, 0.2MM | 10001- | |
| 34 | 417-22-11481 | SHIM, 0.3MM | 10001- | |
| 34 | 417-22-11491 | SHIM, 0.8MM | 10001- | |
| 35 | 01010-61230 | BOLT | 10001- | |
| 35A | 01643-51232 | WASHER | 10001- | |
| 36 | 418-22-13120 | COVER | 10001- | |
| 37 | 04020-01228 | PIN,DOWEL | 10001- | |
| 38 | 01010-61230 | BOLT | 10001- | |
| 39 | 01643-31232 | WASHER | 10001- |
