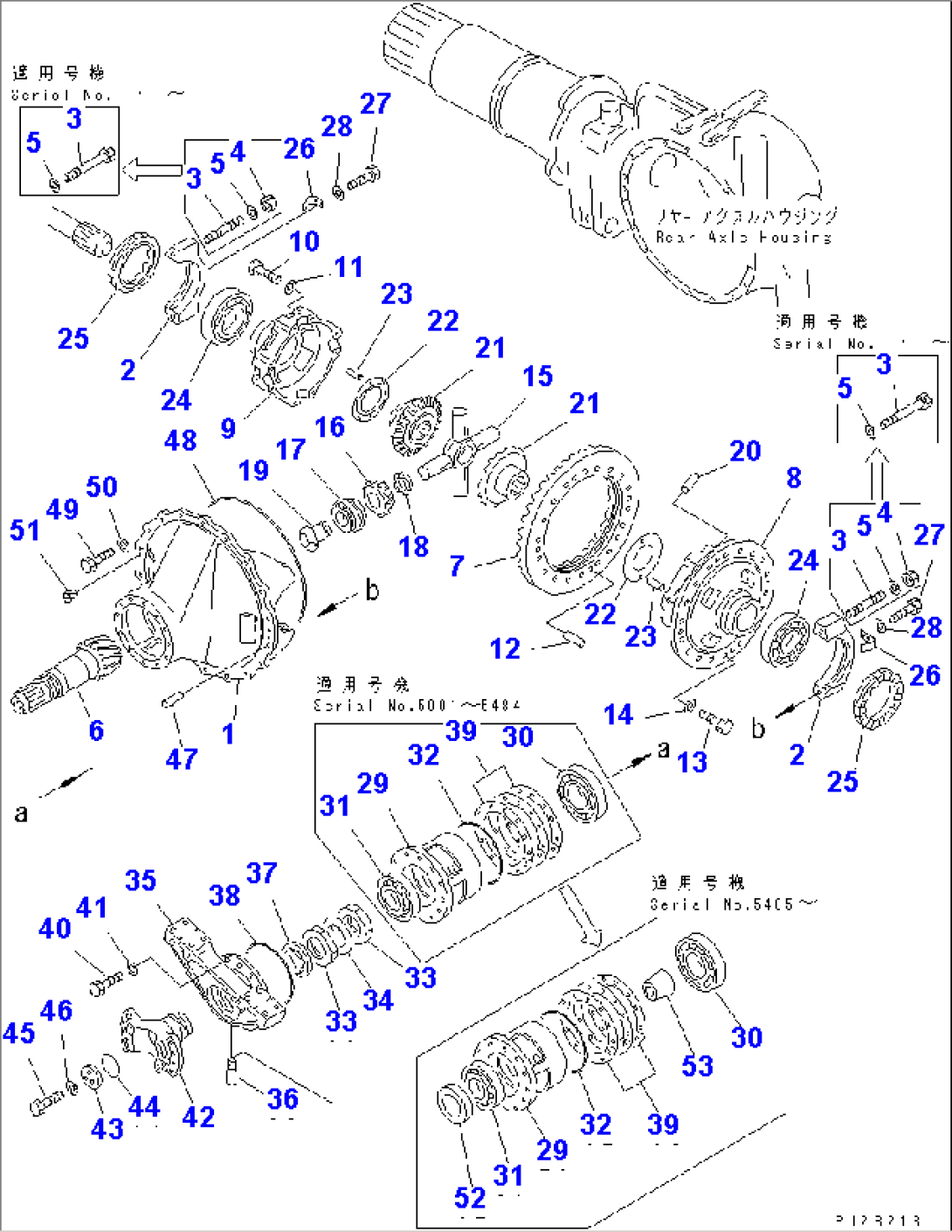

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-22-71001 | DIFFERENTIAL ASS'Y | 6001- | ||
| 566-81-71000 | DIFFERENTIAL ASS'Y | 5485-5999 | ||
| 566-22-71000 | DIFFERENTIAL ASS'Y | 5001-5484 | ||
| 566-22-00014 | CASE ASS'Y | 6001- | ||
| 566-22-00013 | CASE ASS'Y | 5001-5999 | ||
| 1 | \6\ | CASE,DIFFERENTIAL | 6001- | |
| 1 | \6\ | CASE,DIFFERENTIAL | 5001-5999 | |
| 2 | \6\ | CAP,BEARING | 6001- | |
| 2 | \6\ | CAP,BEARING | 5001-5999 | |
| 3 | \6\ | BOLT | .- | |
| 3 | \6\ | STUD | 5001-. | |
| 4 | 01580-03024 | NUT | 5001-. | |
| 5 | 01643-33080 | WASHER | 5001- | |
| 569-22-00025 | BEVEL PINION ASS'Y | 5001-5484 | ||
| 566-22-00024 | BEVEL PINION ASS'Y | 5485- | ||
| 6 | \6\ | PINION,BEVEL | 5001-5484 | |
| \6\ | PINION,BEVEL | 5485- | ||
| 7 | \6\ | GEAR,BEVEL | 5001- | |
| 569-22-00043 | CASE ASS'Y | 5001- | ||
| 8 | \6\ | CASE,DIFFERENTIAL GEAR | 5001- | |
| 9 | \6\ | CASE,DIFFERENTIAL GEAR | 5001- | |
| 10 | 01051-62020 | BOLT | 5001- | |
| 11 | 01643-32060 | WASHER | 5001- | |
| 12 | 04020-01842 | PIN,DOWEL | 5001-5342 | |
| 13 | 01010-62060 | BOLT | 5001- | |
| 14 | 01643-32060 | WASHER | 5001- | |
| 15 | 569-22-21410 | SHAFT | 5001- | |
| 15 | 569-22-21400 | PINION ASS'Y | 5001- | |
| 16 | 569-22-21421 | PINION | 5001- | |
| 17 | 569-22-21850 | BEARING | 5001- | |
| 18 | 569-22-21950 | NUT | 5001- | |
| 19 | 569-22-21440 | SLEEVE | 5001- | |
| 20 | 565-22-11991 | PIN,DOWEL | 5001- | |
| 21 | 566-22-21430 | GEAR,BEVEL | 5001- | |
| 22 | 566-22-11211 | WASHER | 5001- | |
| 23 | 565-22-11991 | PIN,DOWEL | 5001- | |
| 24 | 566-22-71850 | BEARING,ROLLER | 6001- | |
| 24 | 569-22-11820 | BEARING,ROLLER | 5001-5999 | |
| 25 | 287-22-11631 | NUT | 5001- | |
| 26 | 566-22-11251 | LOCK | 5001- | |
| 27 | 01010-31230 | BOLT | 5001- | |
| 28 | 01643-31232 | WASHER | 5001- | |
| 29 | 566-22-71351 | CAGE,BEARING | 5485- | |
| 29 | 566-22-71350 | CAGE,BEARING | 5001-5484 | |
| 30 | 566-22-11812 | BEARING,ROLLER | 5485- | |
| 30 | 566-22-11811 | BEARING,ROLLER | 5001-5484 | |
| 31 | 566-22-71820 | BEARING,ROLLER | 5485- | |
| 31 | 06000-32220 | BEARING,ROLLER | 5001-5484 | |
| 32 | 07000-15235 | O-RING (K33) | 6001- | |
| 32 | 07000-05235 | O-RING (K33) | 5001-5999 | |
| 33 | 566-22-11340 | NUT | 5001-5484 | |
| 34 | 566-22-11330 | LOCK (K33) | 5001-5484 | |
| 35 | 566-22-71311 | CAGE | 5485- | |
| 35 | 566-22-71310 | CAGE | 5001-5484 | |
| 36 | 566-22-11470 | TUBE | 5001- | |
| 37 | 07012-10110 | SEAL,OIL | 5485- | |
| 37 | 07012-10100 | SEAL,OIL (K33) | 5001-5484 | |
| 38 | 07000-15190 | O-RING (K33) | 6001- | |
| 38 | 07000-05190 | O-RING (K33) | 5001-5999 | |
| 39 | 566-22-00031 | SHIM ASS'Y | 5001- | |
| 39 | \6\ | SHIM, 0.2MM | 5001- | |
| 39 | \6\ | SHIM, 0.3MM | 5001- | |
| 39 | \6\ | SHIM, 1.0MM | 5001- | |
| 40 | 01010-61670 | BOLT | 6001- | |
| 40 | 01010-31670 | BOLT | 5001-5999 | |
| 41 | 01643-31645 | WASHER | 5001- | |
| 42 | 566-22-71420 | COUPLING | 5485- | |
| 42 | 566-81-22821 | COUPLING | 5001-5484 | |
| 43 | 566-22-71450 | RETAINER | 5485- | |
| 43 | 566-22-11450 | RETAINER | 5001-5484 | |
| 44 | 07000-05075 | O-RING (K33) | 5001- | |
| 45 | 01051-62445 | BOLT | 5485- | |
| 45 | 01010-31665 | BOLT | 5001-5484 | |
| 46 | 01643-32460 | WASHER | 5485- | |
| 46 | 01643-31645 | WASHER | 5001-5484 | |
| 47 | 04020-01842 | PIN,DOWEL | 5001- | |
| 48 | 198-09-31640 | O-RING (K33) | 6001- | |
| 48 | 566-09-21110 | O-RING (K33) | 5001-5999 | |
| 49 | 01010-62055 | BOLT | 5001- | |
| 50 | 01643-32060 | WASHER | 5001- | |
| 51 | 07049-02025 | PLUG | 5001-5342 | |
| 52 | 566-22-71360 | COLLAR | 5485- | |
| 53 | 566-22-71370 | SPACER | 5485- |
