| Item | Part No. | Part Name | Qty | Serial No. |

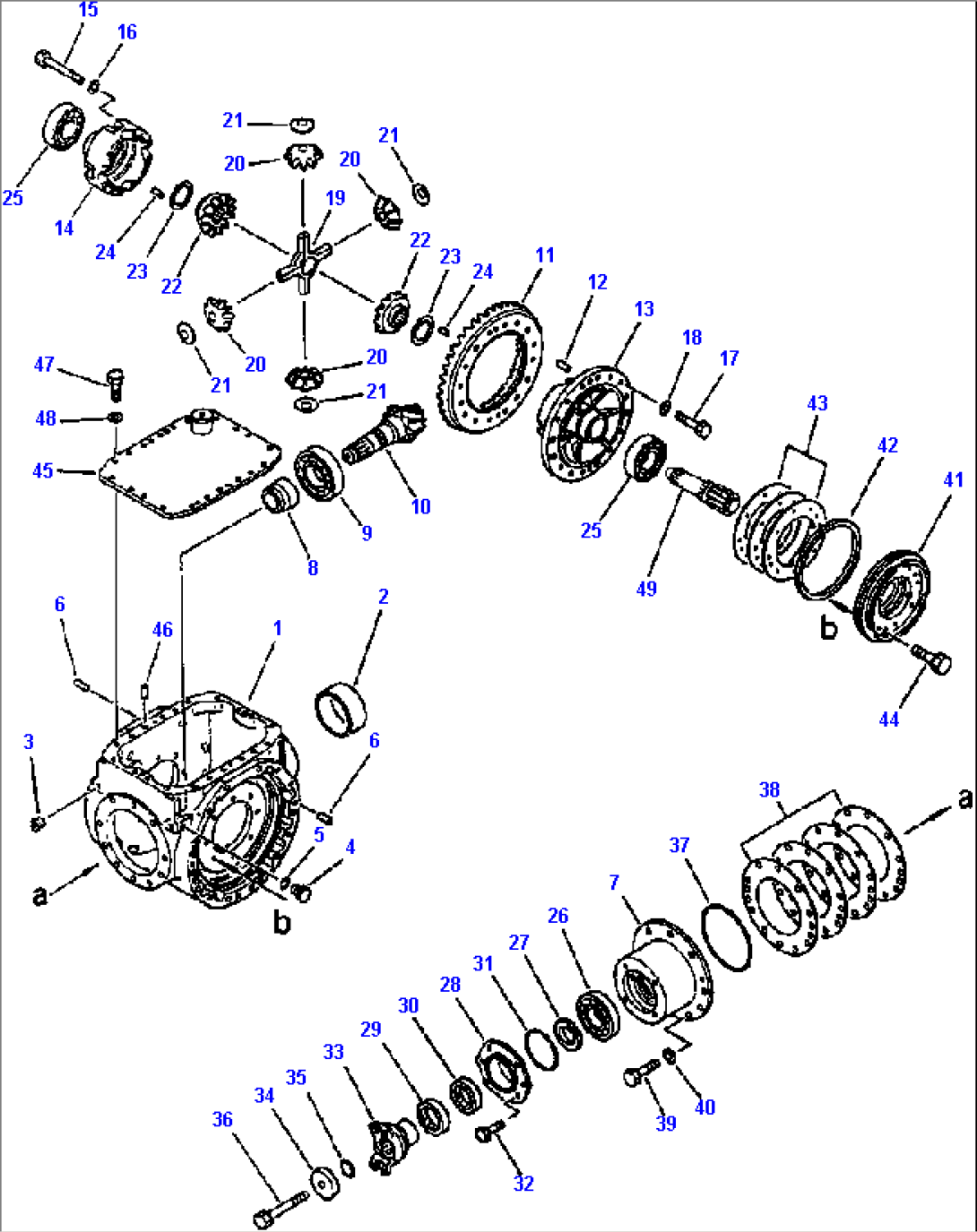

| 419-23-11025 | DIFFERENTIAL ASSEMBLY, REAR | |||
| 1 | 419-23-13113 | HOUSING | ||
| 2 | 419-23-11170 | SLEEVE | ||
| 3 | 07043-50211 | PLUG | ||
| 4 | 07040-11209 | PLUG | ||
| 5 | 07002-01223 | O-RING | ||
| 6 | 04020-01228 | PIN, DOWEL | ||
| 7 | 419-23-11134 | CAGE | ||
| 8 | 419-22-11860 | SPACER | ||
| 9 | 419-22-11810 | BEARING | ||
| 419-22-11202 | GEAR ASSEMBLY, PINION | |||
| 10 | (NSS) | GEAR, PINION | ||
| 11 | (NSS) | GEAR, RING | ||
| 12 | 04020-01228 | PIN, DOWEL | ||
| 419-22-11500 | CASE ASSEMBLY, DIFFERENTIAL | |||
| 13 | (NSS) | CASE, DIFFERENTIAL - FLANGED HALF | ||
| 14 | (NSS) | CASE, DIFFERENTIAL - PLAIN HALF | ||
| 15 | 01010-61295 | BOLT | ||
| 16 | 01643-31232 | WASHER | ||
| 17 | 01010-61240 | BOLT | ||
| 18 | 01643-31232 | WASHER | ||
| 19 | 419-22-11411 | SHAFT | ||
| 20 | 419-22-11420 | PINION | ||
| 21 | 419-22-11650 | WASHER | ||
| 22 | 419-22-11432 | GEAR | ||
| 23 | 419-22-11631 | WASHER | ||
| 24 | 175-21-12180 | PIN | ||
| 25 | 419-22-11850 | BEARING | ||
| 26 | 419-22-11820 | BEARING | ||
| 27 | 419-22-11250 | SPACER | ||
| 28 | 419-22-11312 | RETAINER | ||
| 29 | 07012-00068 | SEAL | ||
| 30 | 419-22-11760 | SEAL | ||
| 31 | 07000-02120 | O-RING | ||
| 32 | 01010-61225 | BOLT | ||
| 33 | 419-22-11232 | COUPLING | ||
| 34 | 423-22-11240 | HOLDER | ||
| 35 | 07000-03042 | O-RING | ||
| 36 | 01011-61615 | BOLT | ||
| 37 | 07000-05180 | O-RING | ||
| 38 | 419-22-11361 | SHIM - 0.05mm | ||
| 419-22-11371 | SHIM - 0.2mm | |||
| 419-22-11381 | SHIM - 0.3mm | |||
| 419-22-11391 | SHIM - 0.8mm | |||
| 39 | 01010-61440 | BOLT | ||
| 40 | 01643-31445 | WASHER | ||
| 41 | 419-22-11162 | CARRIER | ||
| 42 | 419-33-11430 | RING | ||
| 43 | 419-22-11460 | SHIM - 0.05mm | ||
| 419-22-11470 | SHIM - 0.2mm | |||
| 419-22-11480 | SHIM - 0.3mm | |||
| 419-22-11490 | SHIM - 0.8mm | |||
| 44 | 01010-61235 | BOLT | ||
| 45 | 419-22-13122 | COVER | ||
| 46 | 04020-01228 | PIN, DOWEL | ||
| 47 | 01010-61235 | BOLT | ||
| 48 | 01643-31232 | WASHER | ||
| 49 | SHAFT (SEE PG 03-022) |
