| Item | Part No. | Part Name | Qty | Serial No. |
| BW153124 | DIFFERENTIAL ASS'Y | 303026-303071 | ||
| BW053440 | DIFFERENTIAL ASS'Y | 303001-303025 | ||

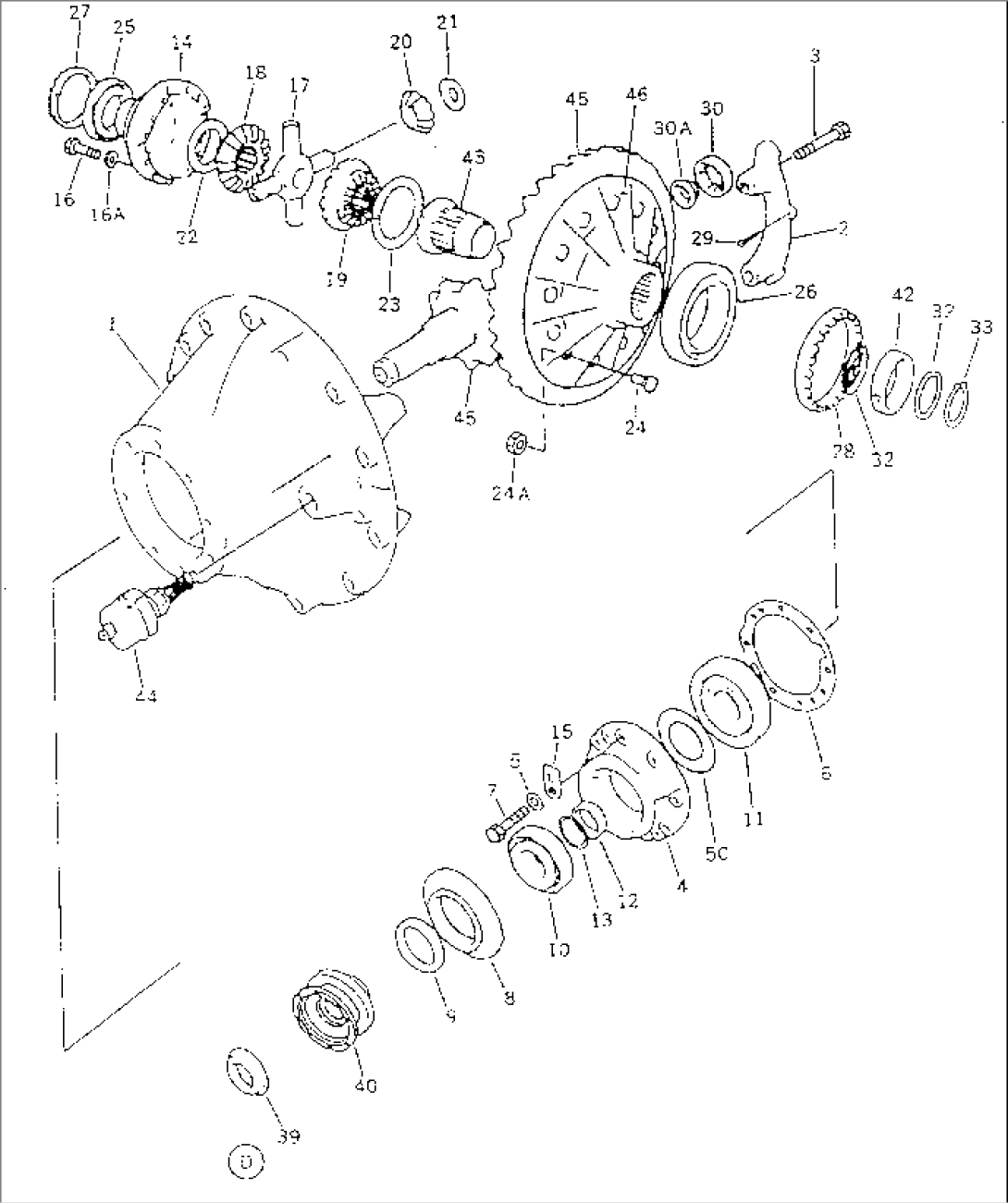

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3501 AND 3511. | ||||
| 1 | BW053539 | HOUSING | 303001-303071 | |
| 2 | \6\ | CAP | 303001-303071 | |
| 3 | BW153006 | BOLT | 303026-303071 | |
| 3 | \0\BW053541 | BOLT | 303001-303025 | |
| 4 | BW053542 | HOUSING | 303001-303071 | |
| 5 | BW251630 | WASHER | 303001-303071 | |
| 6 | BW053891 | SHIM, 0.10MM | 303001-303071 | |
| 6 | BW053890 | SHIM, 0.25MM | 303001-303071 | |
| 6 | BW053888 | SHIM, 0.40MM | 303001-303071 | |
| 6 | BW053889 | SHIM, 0.50MM | 303001-303071 | |
| 7 | BW053545 | BOLT | 303001-303071 | |
| 8 | BW053546 | RING,SUPPORT | 303001-303071 | |
| 9 | BW053648 | RING,SEAL | 303026-303071 | |
| 9 | BW053044 | RING,SEAL | 303001-303025 | |
| 10 | BW053548 | BEARING (KIT) | 303001-303071 | |
| 11 | BW053549 | BEARING (KIT) | 303001-303071 | |
| 12 | BW053897 | SPACER, 13.40MM | 303001-303071 | |
| 12 | BW053898 | SPACER, 13.42MM | 303001-303071 | |
| 12 | BW053899 | SPACER, 13.44MM | 303001-303071 | |
| 12 | BW053900 | SPACER, 13.46MM | 303001-303071 | |
| 12 | BW053901 | SPACER, 13.48MM | 303001-303071 | |
| 13 | BW053892 | SHIM, 0.3MM | 303001-303071 | |
| 13 | BW053893 | SHIM, 0.4MM | 303001-303071 | |
| 13 | BW053894 | SHIM, 0.5MM | 303001-303071 | |
| 14 | BW053552 | COUPLING,OUTER | 303001-303071 | |
| 15 | BW053553 | PLATE, NAME | 303001-303071 | |
| 16 | BW053554 | BOLT | 303001-303071 | |
| 16A | BW053555 | WASHER | 303001-303071 | |
| 17 | BW053404 | SPIDER | 303001-303071 | |
| 18 | BW053401 | GEAR | 303001-303071 | |
| 19 | BW053556 | GEAR | 303001-303071 | |
| 20 | BW053403 | PINION | 303001-303071 | |
| 21 | BW053448 | WASHER | 303001-303071 | |
| 22 | BW053557 | WASHER | 303001-303071 | |
| 23 | BW053558 | WASHER | 303001-303071 | |
| 24 | BW053446 | BOLT | 303001-303071 | |
| 24A | BW053447 | NUT | 303001-303071 | |
| 25 | BW053560 | BEARING (KIT) | 303001-303071 | |
| 26 | BW053561 | BEARING (KIT) | 303001-303071 | |
| 27 | BW053562 | RING,ADJUSTER | 303001-303071 | |
| 28 | BW053563 | RING,ADJUSTER | 303001-303071 | |
| 29 | BW053564 | PIN,COTTER | 303001-303071 | |
| 30 | BW053565 | BEARING (KIT) | 303001-303071 | |
| 30A | BW053566 | RING,LOCK | 303001-303071 | |
| 32 | BW053567 | WASHER | 303001-303071 | |
| 33 | BW053568 | RING,LOCK | 303001-303071 | |
| 39 | BW053647 | NUT | 303001-303071 | |
| 40 | BW044175 | FLANGE | 303001-303071 | |
| 42 | BW053569 | SPACER | 303001-303071 | |
| 43 | BW053570 | COUPLING,OUTER | 303001-303071 | |
| 44 | (BW053537) | CYLINDER ASS'Y | 303001-303071 | |
| 45 | BW153125 | BEVEL GEAR ASS'Y | 303026-303071 | |
| 45 | BW053571 | BEVEL GEAR ASS'Y | 303001-303025 | |
| 46 | BW053970 | CARRIER | 303001-303071 | |
| 50 | BW153232 | CATCHER,OIL | 303001-303071 | |
| SERVICE KIT | ||||
| KIT | BW153233 | BEARING KIT,REAR DIFFERENTIAL | 303001-303071 |
