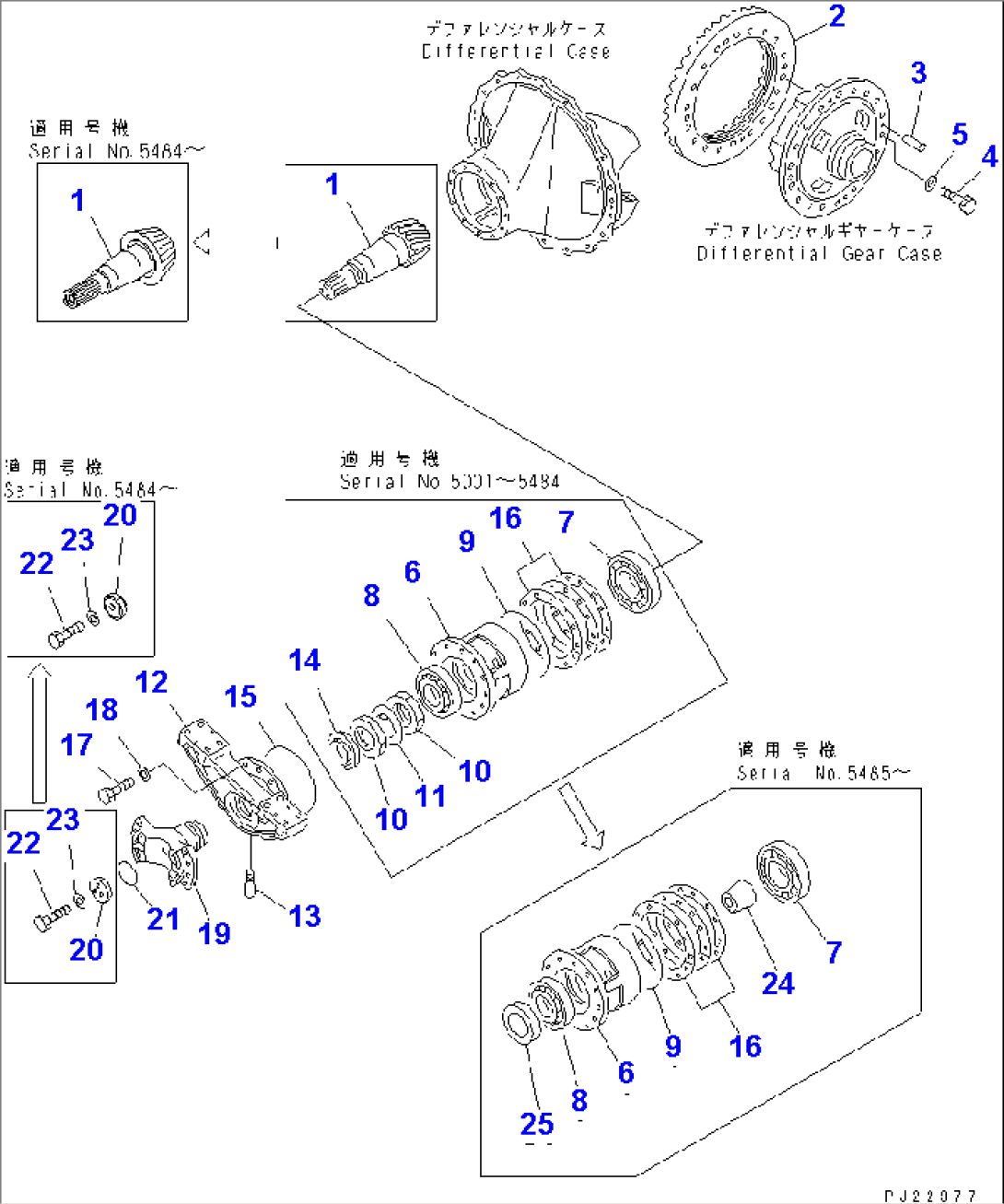

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-22-00024 | BEVEL PINION ASS'Y | 5485- | ||
| 569-22-00025 | BEVEL PINION ASS'Y | 5001-5484 | ||
| 1 | \6\ | PINION | 5485- | |
| 1 | \6\ | PINION | 5001-5484 | |
| 2 | \6\ | GEAR | 5001- | |
| 3 | 04020-01842 | PIN,DOWEL | 5001- | |
| 4 | 01010-62060 | BOLT | 5001- | |
| 5 | 01643-32060 | WASHER | 5001- | |
| 6 | 566-22-71351 | CAGE | 5485- | |
| 6 | 566-22-71350 | CAGE,BEARING | 5001-5484 | |
| 7 | 566-22-11812 | BEARING | 5485- | |
| 7 | 566-22-11811 | BEARING,ROLLER | 5001-5484 | |
| 8 | 566-22-71820 | BEARING | 5485- | |
| 8 | 06000-32220 | BEARING,ROLLER | 5001-5484 | |
| 9 | 07000-05235 | O-RING (K33) | 5001- | |
| 10 | 566-22-11340 | NUT | 5001-5999 | |
| 11 | 566-22-11330 | LOCK (K33) | 5001-5999 | |
| 12 | 566-22-71311 | CAGE | 5485- | |
| 12 | 566-22-71310 | CAGE | 5001-5484 | |
| 13 | 566-22-11470 | TUBE | 5001- | |
| 14 | 07012-10110 | SEAL | 5485-5999 | |
| 14 | 07012-10100 | SEAL,OIL (K33) | 5001-5484 | |
| 15 | 07000-05190 | O-RING (K33) | 5001- | |
| 16 | 566-22-00031 | SHIM ASS'Y | 5001- | |
| 16 | \6\ | SHIM, 0.2MM | 5001- | |
| 16 | \6\ | SHIM, 0.3MM | 5001- | |
| 16 | \6\ | SHIM, 1.0MM | 5001- | |
| 17 | 01010-31670 | BOLT | 5001- | |
| 18 | 01643-31645 | WASHER | 5001- | |
| 19 | 566-22-71420 | COUPLING | 5485- | |
| 19 | 566-81-22821 | COUPLING | 5001-5484 | |
| 20 | 566-22-71450 | RETAINER | 5485- | |
| 20 | 566-22-11450 | RETAINER | 5001-5484 | |
| 21 | 07000-05075 | O-RING (K33) | 5001- | |
| 22 | 01051-62445 | BOLT | 5485- | |
| 22 | 01010-31665 | BOLT | 5001-5484 | |
| 23 | 01643-32460 | WASHER | 5485- | |
| 23 | 01643-31645 | WASHER | 5001-5484 | |
| 24 | 566-22-71370 | SPACER | 5485- | |
| 25 | 566-22-71360 | COLLAR | 5485- |
