| Item | Part No. | Part Name | Qty | Serial No. |
| (415-23-10003) | REAR AXLE ASS'Y | 12288- | ||
| (\0\415-23-10002) | REAR AXLE ASS'Y | 12001-12287 | ||

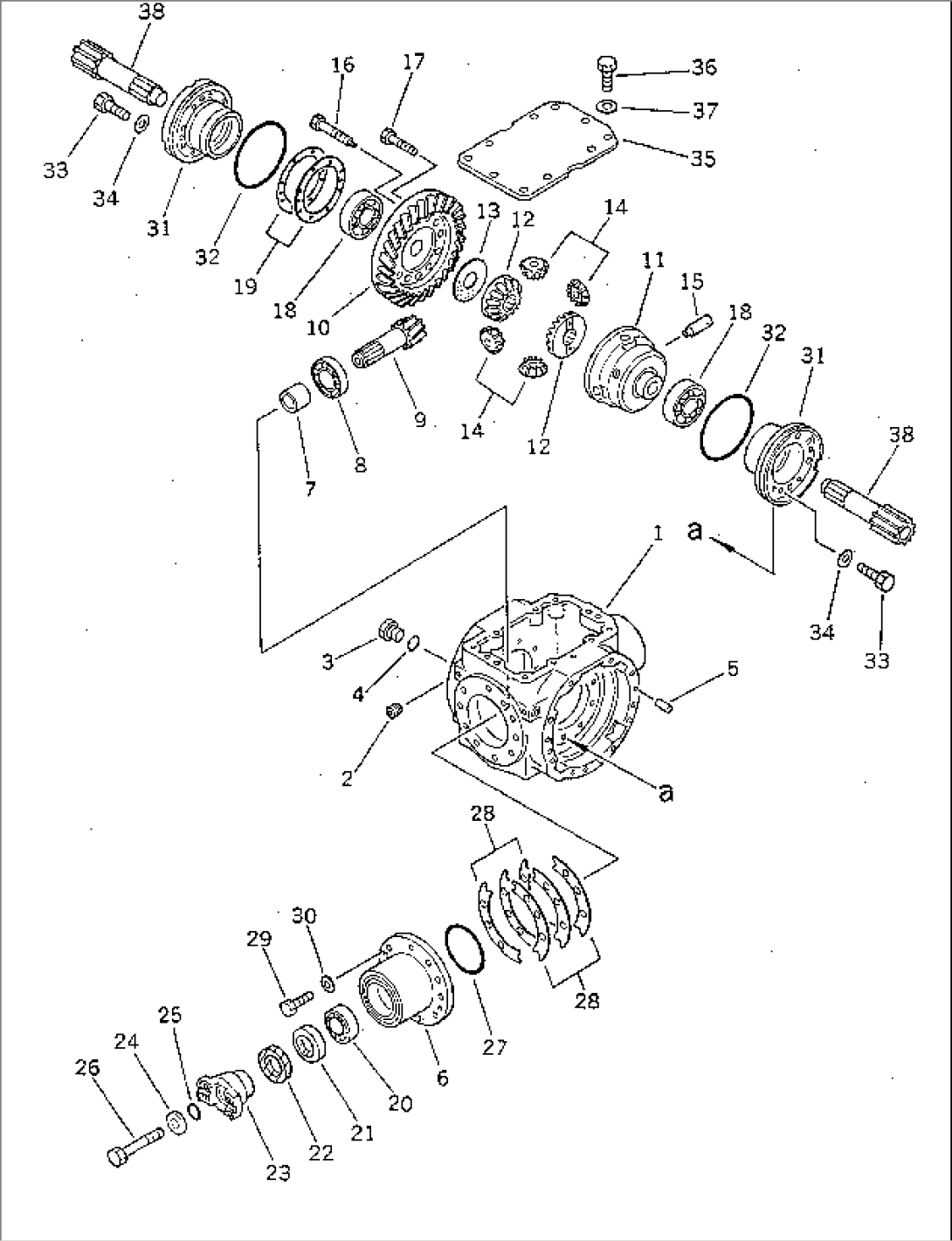

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3201A TO 3221. | ||||
| 415-23-11023 | DIFFERENTIAL ASS'Y | 12288- | ||
| \0\415-23-11022 | DIFFERENTIAL ASS'Y | 12001-12287 | ||
| 1 | 415-23-13113 | HOUSING | 12115- | |
| 1 | \0\415-23-13112 | HOUSING | 12001-12114 | |
| 2 | 07043-70211 | PLUG | 10001- | |
| 3 | 07040-11209 | PLUG | 10001- | |
| 4 | 07002-11223 | O-RING | 10001- | |
| 5 | 04020-01228 | PIN,DOWEL | 10001- | |
| 6 | 415-23-11134 | CAGE | 12001- | |
| 6 | (\2\415-23-11133) | CAGE | (12001-12062) | |
| 7 | 415-23-11862 | SPACER | 12001- | |
| 8 | 415-22-11830 | BEARING | 12001- | |
| 415-22-11203 | PINION ASS'Y | 12001- | ||
| 9 | \6\ | GEAR,PINION | 12001- | |
| 10 | \6\ | GEAR | 12001- | |
| 11 | 415-22-11512 | CARRIER | 12001- | |
| 12 | 415-22-11430 | GEAR | 10001- | |
| 13 | 415-22-11530 | WASHER | 10001- | |
| 14 | 415-22-11420 | PINION | 10001- | |
| 15 | 415-22-11410 | SHAFT | 10001- | |
| 16 | 415-22-11440 | BOLT | 10001- | |
| 17 | 01010-61235 | BOLT | 10001- | |
| 18 | 415-22-11850 | BEARING | 12001- | |
| 19 | 415-22-11560 | SHIM, 0.07MM | 12001- | |
| 19 | 415-22-11570 | SHIM, 0.2MM | 12001- | |
| 19 | 415-22-11580 | SHIM, 0.3MM | 12001- | |
| 19 | 415-22-11590 | SHIM, 0.8MM | 12001- | |
| 20 | 415-22-11811 | BEARING | 12001- | |
| 21 | 07012-00060 | SEAL | 12001- | |
| 22 | 415-22-11760 | SEAL | 12001- | |
| 23 | 415-22-11231 | COUPLING | 12001- | |
| 24 | 415-22-11241 | HOLDER | 10001- | |
| 25 | 07000-13028 | O-RING | 10001- | |
| 26 | 01010-61285 | BOLT | 10001- | |
| 27 | 07000-12115 | O-RING | 12001- | |
| 28 | 415-22-11360 | SHIM, 0.05MM | 10001- | |
| 28 | 415-22-11370 | SHIM, 0.10MM | 10001- | |
| 28 | 415-22-11380 | SHIM, 0.40MM | 10001- | |
| 29 | 01010-61235 | BOLT | 12063- | |
| 29 | 01010-61235 | BOLT | 10001-12062 | |
| 30 | 01643-31232 | WASHER | 12063- | |
| 30 | 01643-31232 | WASHER | 10001-12062 | |
| 31 | 415-22-11161 | CARRIER | 12001- | |
| 32 | 415-33-11432 | RING | 12209- | |
| 32 | \0\415-33-11431 | O-RING | 12001-12208 | |
| 33 | 01010-60825 | BOLT | 10001- | |
| 34 | 01643-50823 | WASHER | 12001- | |
| 35 | 415-22-13120 | COVER | 10001- | |
| 36 | 01010-61025 | BOLT | 10001- | |
| 37 | 01643-31032 | WASHER | 10001- | |
| 38 | 415-22-12421 | SHAFT | 12001- |
