| Item | Part No. | Part Name | Qty | Serial No. |
| (428-23-10050) | REAR AXLE ASS'Y | 10001- | ||

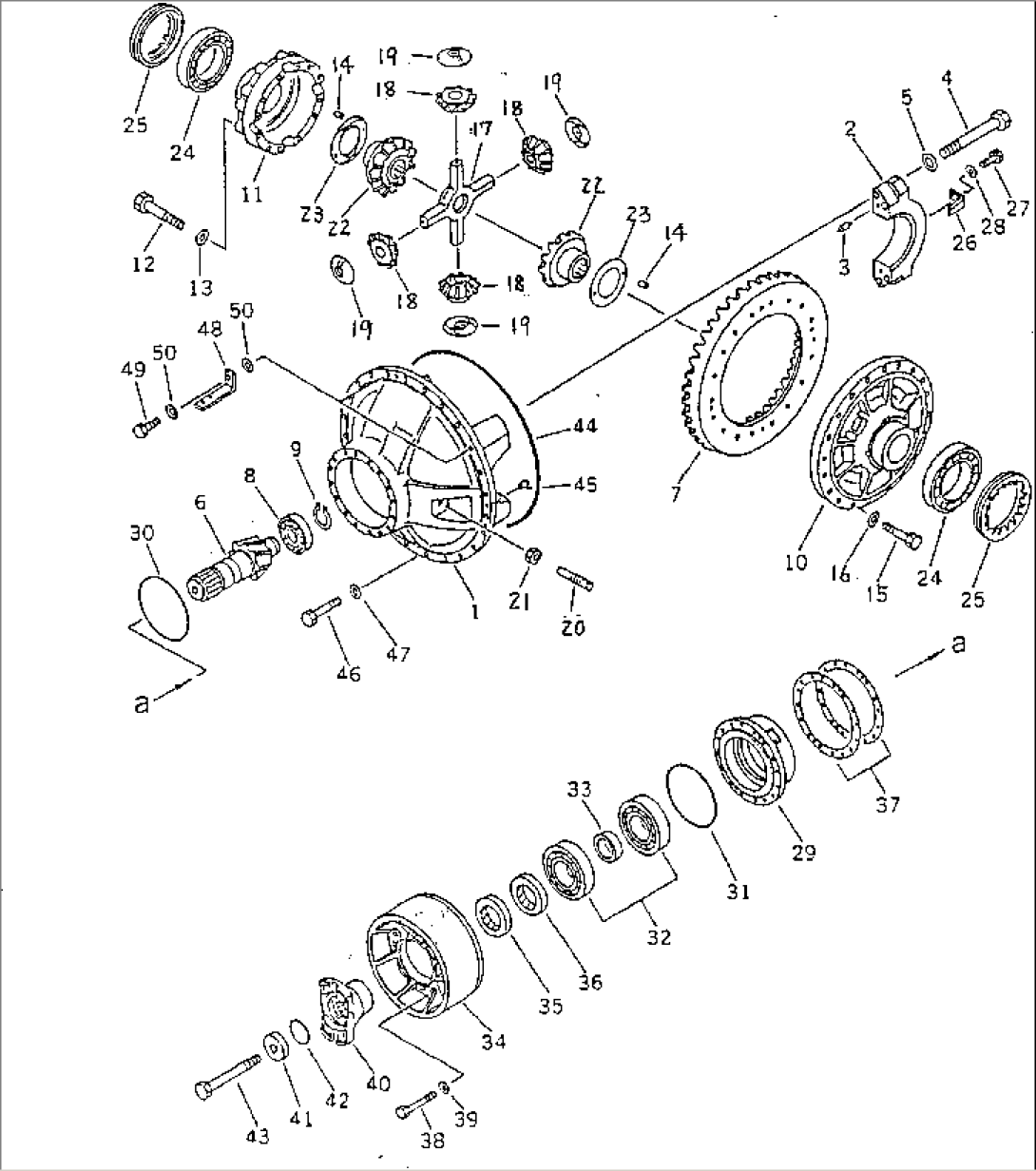

| 428-23-11060 | DIFFERENTIAL ASS'Y | 10001- | ||
| 428-22-11101 | CARRIER ASS'Y | 10001- | ||
| 1 | \6\ | CARRIER | 10001- | |
| 2 | \6\ | CAP | 10001- | |
| 3 | 423-22-11161 | PIN | 10001- | |
| 4 | 01011-62455 | BOLT | 10001- | |
| 5 | 01643-32460 | WASHER | 10001- | |
| 428-22-11202 | GEAR ASS'Y | 10001- | ||
| 6 | \6\ | PINION | 10001- | |
| 7 | \6\ | GEAR,BEVEL | 10001- | |
| 8 | 428-22-11830 | BEARING | 10001- | |
| 9 | 04064-07525 | RING,SNAP | 10001- | |
| 428-22-11502 | CASE ASS'Y | 10001- | ||
| 10 | \6\ | CASE | 10001- | |
| 11 | \6\ | CASE | 10001- | |
| 12 | 01011-32035 | BOLT | 10001- | |
| 13 | 01643-32060 | WASHER | 10001- | |
| 14 | 175-21-12180 | PIN | 10001- | |
| 15 | 01010-32065 | BOLT | 10001- | |
| 16 | 01643-32060 | WASHER | 10001- | |
| 17 | 428-22-11410 | SHAFT | 10001- | |
| 18 | 428-22-11420 | PINION | 10001- | |
| 19 | 428-22-11550 | WASHER | 10001- | |
| 20 | 428-22-11181 | SCREW | 10001- | |
| 21 | 01582-03024 | NUT | 10001- | |
| 22 | 428-22-11431 | GEAR | 10001- | |
| 23 | 428-22-11530 | WASHER | 10001- | |
| 24 | 428-22-11850 | BEARING | 10001- | |
| 25 | 428-22-11140 | NUT | 10001- | |
| 26 | 428-22-11150 | LOCK | 10001- | |
| 27 | 01010-31235 | BOLT | 10001- | |
| 28 | 01643-31232 | WASHER | 10001- | |
| 29 | 428-22-11130 | CAGE | 10001- | |
| 30 | 07000-55300 | O-RING (K5) | 10001- | |
| 31 | 07000-55300 | O-RING (K5) | 10001- | |
| 32 | 428-22-11810 | BEARING | 10001- | |
| 33 | 428-22-11820 | SPACER | 10001- | |
| 34 | 428-23-11331 | SUPPORT | 10001- | |
| 35 | 428-22-11790 | SEAL (K5) | 10001- | |
| 36 | 428-22-11780 | SEAL (K5) | 10001- | |
| 37 | 428-22-05030 | SHIM ASS'Y | 10001- | |
| 37 | 428-22-11390 | SHIM, 0.2MM | 10001- | |
| 37 | 428-22-11380 | SHIM, 0.3MM | 10001- | |
| 37 | 428-22-11370 | SHIM, 0.5MM | 10001- | |
| 38 | 01010-32085 | BOLT | 10001- | |
| 39 | 01643-32060 | WASHER | 10001- | |
| 40 | 428-23-11230 | COUPLING | 10001- | |
| 41 | 428-22-11240 | HOLDER | 10001- | |
| 42 | 428-22-11910 | O-RING (K5) | 10001- | |
| 43 | 01011-63070 | BOLT | 10001- | |
| 44 | 428-22-11920 | O-RING (K5) | 10001- | |
| 45 | 04020-01842 | PIN,DOWEL | 10001- | |
| 46 | 01010-32060 | BOLT | 10001- | |
| 47 | 01643-32060 | WASHER | 10001- | |
| 48 | 428-23-11180 | PLATE | 10001- | |
| 49 | 01010-32070 | BOLT | 10001- | |
| 50 | 01643-32060 | WASHER | 10001- |
