| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81025 | BOLT | H50051- | |
| 2 | 01643-31032 | WASHER | H50051- | |
| 3 | 02896-11009 | O-RING | H50051- | |
| 4 | 20E-62-31140 | TUBE | H50051- | |
| 5 | 20E-62-31160 | TUBE | H50051- | |
| 6 | 20J-62-11960 | CLAMP | H50051- | |
| 7 | 20J-62-11981 | BRACKET | H50051- |
- Главная
- Каталог запчастей
- Колесные экскаваторы
- Pw148 8 s/n h50051 up
- Y0 service kit and component parts
- Rear dozer blade piping
Поиск по каталогу

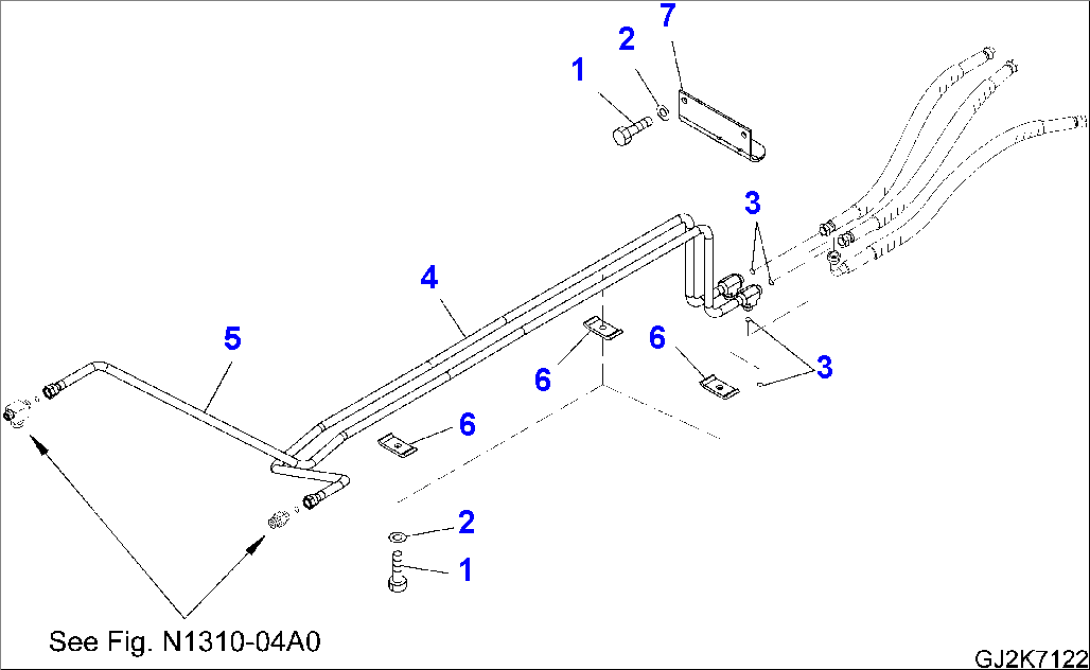

REAR DOZER BLADE - PIPING
