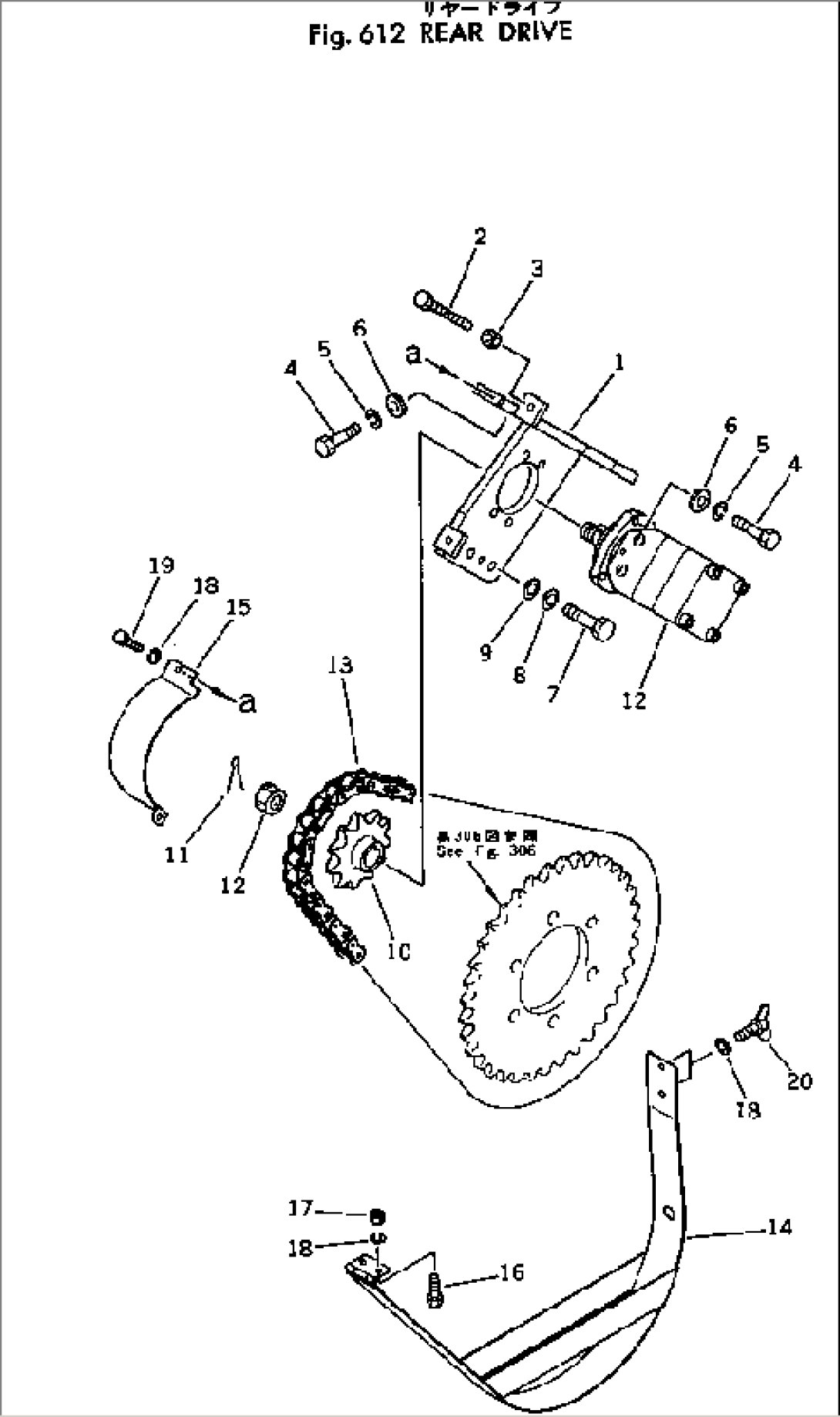

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 258-57-12100 | BRACKET | 1001- | |
| 2 | 01016-31060 | BOLT | 1001- | |
| 3 | 01580-01008 | NUT | 1001- | |
| 4 | 01010-31240 | BOLT | 1001- | |
| 5 | 01602-01236 | WASHER | 1001- | |
| 6 | 2691-6-14540 | WASHER | 1001- | |
| 7 | 01010-31440 | BOLT | 1001- | |
| 8 | 01602-01442 | WASHER | 1001- | |
| 9 | 01641-01423 | WASHER | 1001- | |
| 10 | 258-05-05110 | SPROCKET | 1001- | |
| 11 | 04050-04045 | PIN | 1001- | |
| 12 | 258-58-19200 | MOTOR | 1001- | |
| 13 | 04102-00057 | CHAIN | 1001- | |
| 14 | 258-57-12400 | GUARD | 1001- | |
| 15 | 258-57-12610 | GUARD | 1001- | |
| 16 | 01010-30820 | BOLT | 1001- | |
| 17 | 01580-00806 | NUT | 1001- | |
| 18 | 01602-00825 | WASHER | 1001- | |
| 19 | 01010-30812 | BOLT | 1001- | |
| 20 | 01434-00815 | BOLT, WING | 1001- |
