| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-53212 | Clip | C10001- | |
| 2 | 07095-20523 | Cushion | C10001- | |
| 3 | 04434-51712 | Clip | C10001- | |
| 4 | 07095-20211 | Cushion | C10001- | |
| 5 | 01010-81020 | Bolt | C10001- | |
| 6 | 01643-31032 | Washer | C10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 6 s/n c10001 up
- Electrical system
- Rear electric circuit engine harness mount (#c10001 )
Поиск по каталогу

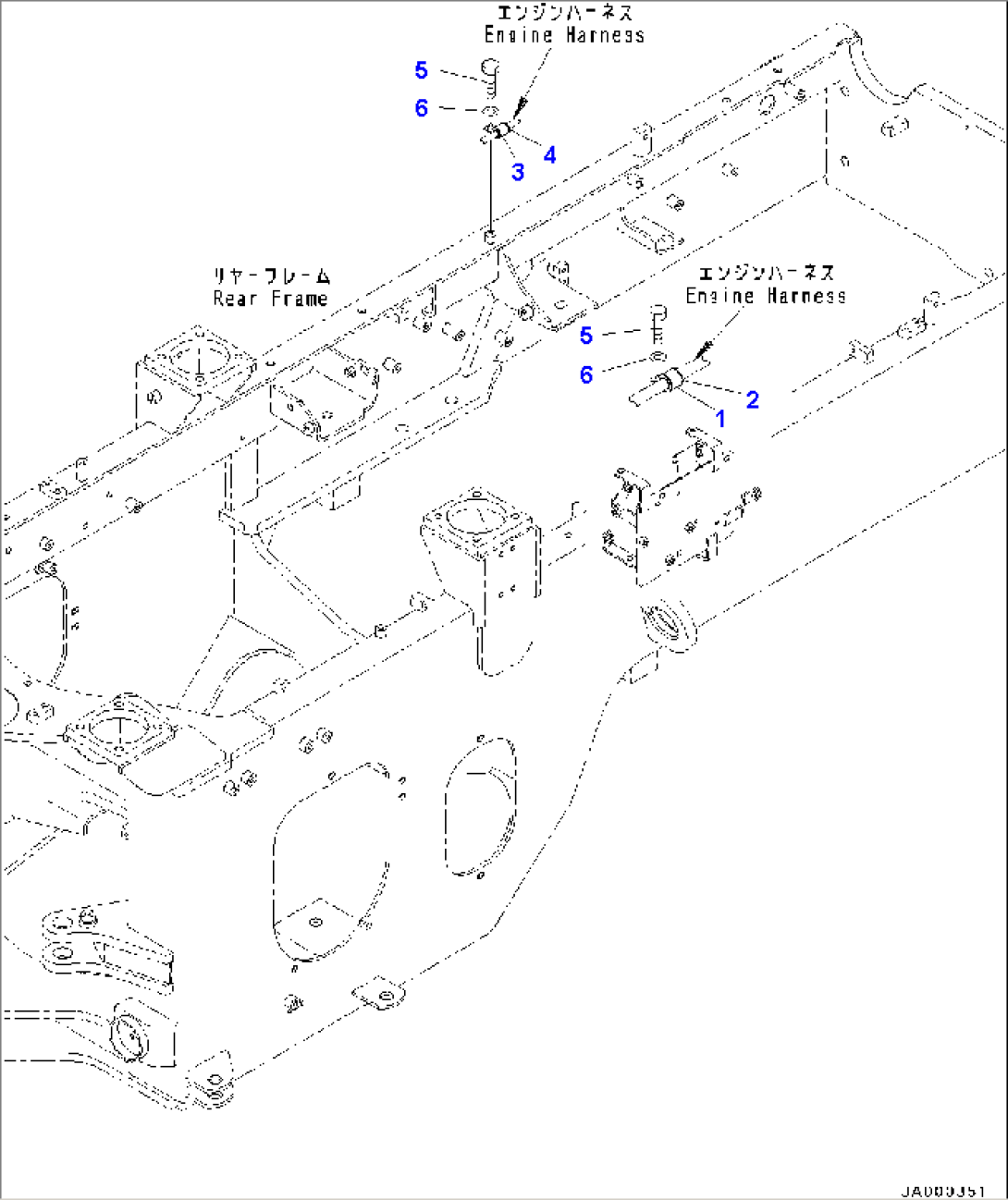

Rear Electric Circuit Engine Harness Mount (#C10001-)
