| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-42570 | Wiring Harness | 75049-77255 | |
| 2 | 04434-51012 | Clip | 75049-@ | |
| 3 | 04434-51712 | Clip | 75049-77255 | |
| 4 | 07095-20211 | Cushion | 75049-77255 | |
| 5 | 01010-81020 | Bolt | 75049-@ | |
| 6 | 01643-31032 | Washer | 75049-@ |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250 6 s/n 75053 up
- Electrical system
- Rear electric wiring harness, emergency steering wiring harness (#75049 77255)
Поиск по каталогу

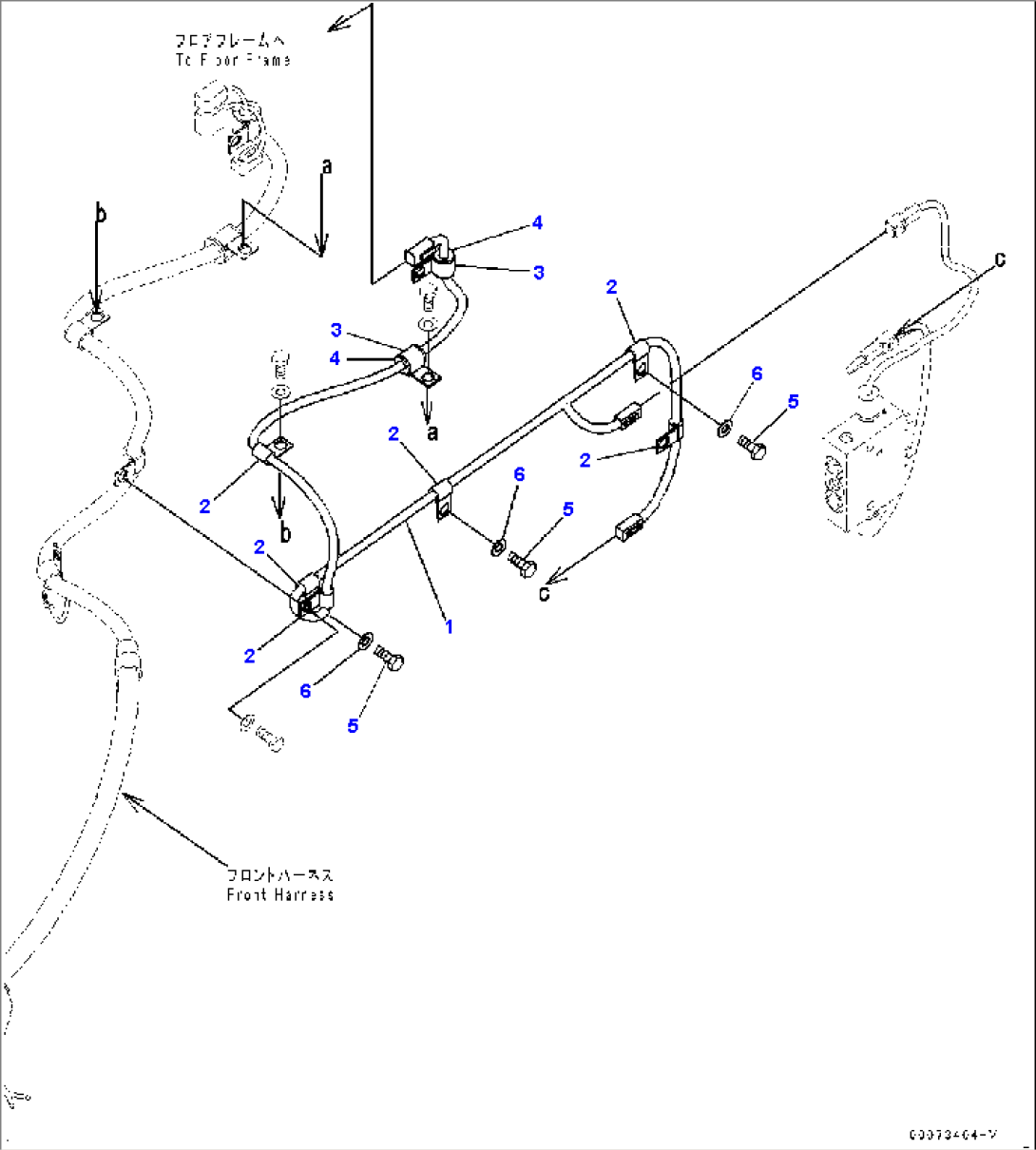

Rear Electric Wiring Harness, Emergency Steering Wiring Harness (#75049-77255)
