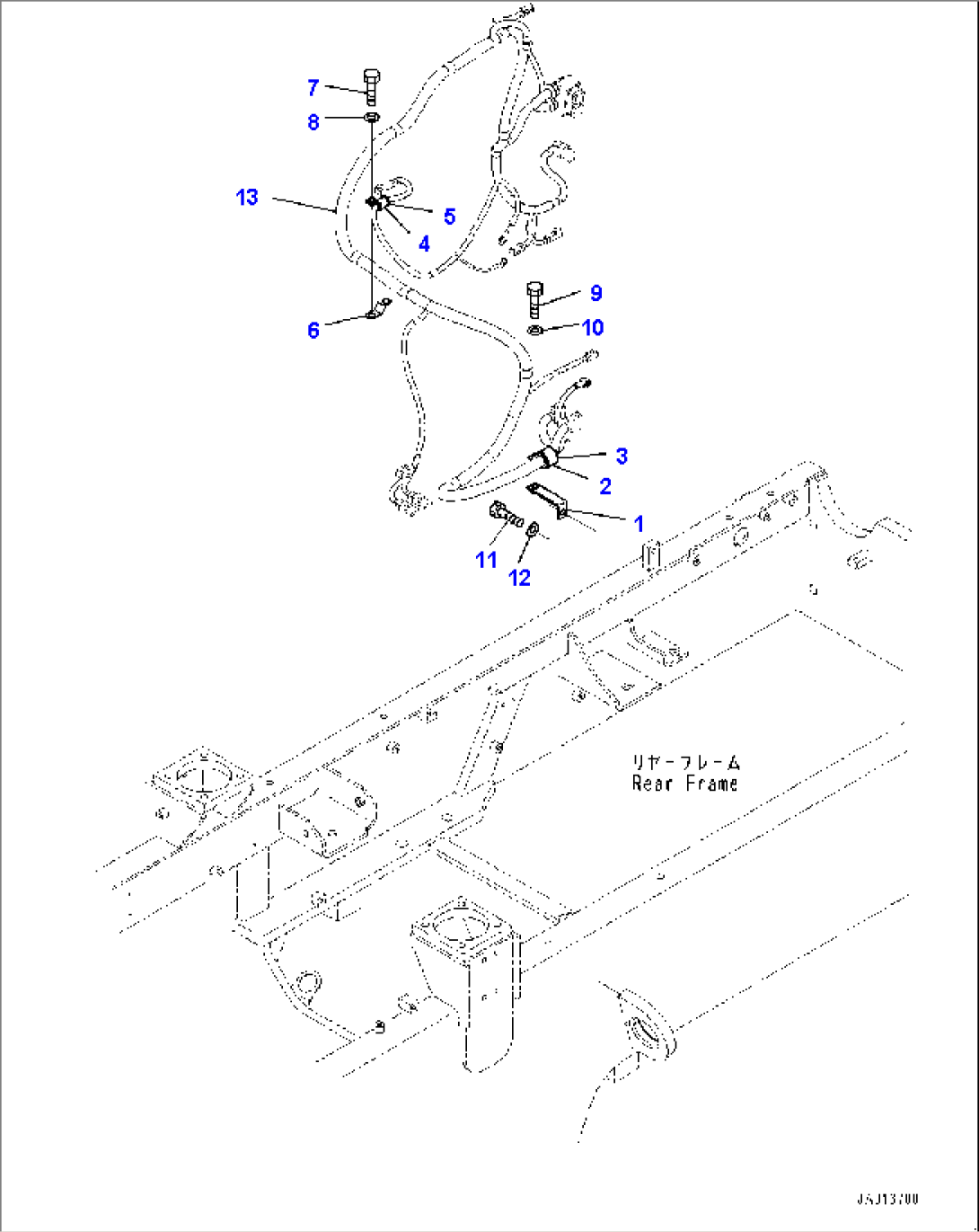

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08037-03620 | Grommet | 75689- | |
| 2 | 426-09-11230 | Grommet | 75689- | |
| 3 | 150-95-27160 | Grommet | 75689- | |
| 4 | 01010-81025 | Bolt | 75689- | |
| 5 | 01643-31032 | Washer | 75689- | |
| 6 | 01010-81045 | Bolt | 75689- | |
| 7 | 01643-31032 | Washer | 75689- | |
| 8 | 155-61-15350 | Clip | 75689- | |
| 9 | 155-61-15350 | Clip | 75689- | |
| 10 | 07095-00630 | Cushion | 75689- | |
| 11 | 07095-00630 | Cushion | 75689- | |
| 12 | 08193-21012 | Clip | 75689- | |
| 13 | 01010-81016 | Bolt | 75689- | |
| 14 | 01643-31032 | Washer | 75689- | |
| 15 | 01010-81016 | Bolt | 75689- | |
| 16 | 01643-31032 | Washer | 75689- | |
| 17 | 04434-52712 | Clip | 75689- | |
| 18 | 04434-52512 | Clip | 75689- | |
| 19 | 07095-20318 | Cushion | 75689- | |
| 20 | 11Y-06-11630 | Cap | 75689- | |
| 21 | 04434-51912 | Clip | 75689- | |
| 22 | 04434-51912 | Clip | 75689- | |
| 23 | 04434-51612 | Clip | 75689- | |
| 24 | 04434-51612 | Clip | 75689- | |
| 25 | 07095-20211 | Cushion | 75689- | |
| 26 | 07095-20211 | Cushion | 75689- | |
| 27 | 04434-51912 | Clip | 75689- | |
| 28 | 04434-51912 | Clip | 75689- | |
| 29 | 07095-20213 | Cushion | 75689- | |
| 30 | 07095-20213 | Cushion | 75689- | |
| 31 | 01010-81025 | Bolt | 75689- | |
| 32 | 01643-31032 | Washer | 75689- | |
| 33 | 08034-20519 | Band | 75689- | |
| 34 | 04434-51712 | Clip | 75689- | |
| 35 | 04434-51412 | Clip | 75689- | |
| 36 | 04434-51412 | Clip | 75689- | |
| 37 | 04434-51412 | Clip | 75689- | |
| 38 | 04434-51012 | Clip | 75689- | |
| 39 | 04434-51012 | Clip | 75689- | |
| 40 | 04434-51012 | Clip | 75689- | |
| 41 | 04434-51012 | Clip | 75689- | |
| 42 | 01010-81020 | Bolt | 75689- | |
| 43 | 01643-31032 | Washer | 75689- | |
| 44 | 01010-81020 | Bolt | 75689- | |
| 45 | 01643-31032 | Washer | 75689- | |
| 46 | 01010-81020 | Bolt | 75689- | |
| 47 | 01643-31032 | Washer | 75689- | |
| 48 | 01010-81020 | Bolt | 75689- | |
| 49 | 01643-31032 | Washer | 75689- | |
| 50 | 01010-81020 | Bolt | 75689- | |
| 51 | 01643-31032 | Washer | 75689- | |
| 52 | 01010-81020 | Bolt | 75689- | |
| 53 | 01643-31032 | Washer | 75689- | |
| 54 | 01010-81020 | Bolt | 75689- | |
| 55 | 01643-31032 | Washer | 75689- | |
| 56 | 01010-81020 | Bolt | 75689- | |
| 57 | 01643-31032 | Washer | 75689- | |
| 58 | 01010-81020 | Bolt | 75689- | |
| 59 | 01643-31032 | Washer | 75689- | |
| 60 | 14X-06-12280 | Cover | 75689- | |
| 61 | 195-30-34260 | Cap | 75689- | |
| 62 | 01010-81050 | Bolt | 75689- | |
| 63 | 01643-31032 | Washer | 75689- | |
| 64 | 418-06-42331 | Bracket | 75689- | |
| 65 | 08192-22100 | Connector Body | 75689- | |
| 66 | 08191-00770 | Plug, Connector | 75689- | |
| 67 | 04434-52512 | Clip | 75689- | |
| 68 | 07095-20318 | Cushion | 75689- | |
| 69 | 01010-81020 | Bolt | 75689- | |
| 70 | 01643-31032 | Washer | 75689- | |
| 71 | 418-06-41590 | Plate | 75689- | |
| 72 | 01010-80816 | Bolt | 75689- | |
| 73 | 01643-30823 | Washer | 75689- | |
| 74 | (418-06-42731) | Cable | - |
