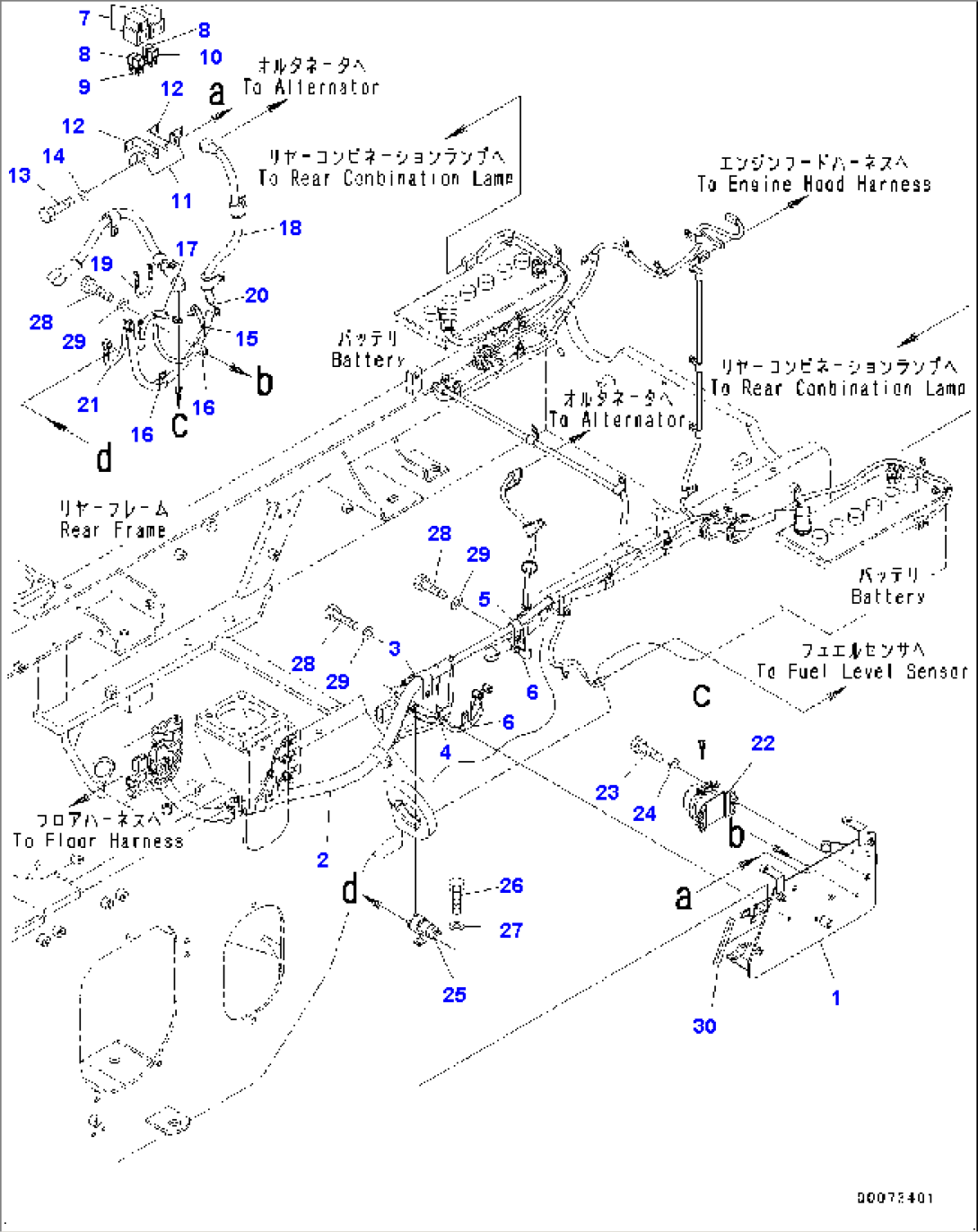

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-42411 | Bracket | 75049- | |
| 2 | 418-06-42341 | Wiring Harness | 75049- | |
| 21J-06-13661 | Diode | 75049- | ||
| 3 | 04434-52712 | Clip | 75049- | |
| 4 | 04434-52512 | Clip | 75049- | |
| 5 | 04434-51712 | Clip | 75049- | |
| 6 | 04434-51012 | Clip | 75049- | |
| 7 | 421-06-22880 | Holder | 75049- | |
| 7 | 421-06-22990 | Bolt | 75049- | |
| 8 | 421-06-22830 | Fuse, 120Amp. | 75049- | |
| 9 | 421-06-22820 | Fuse, 80Amp. | 75049- | |
| 10 | 417-06-22610 | Fuse, 50Amp. | 75049- | |
| 11 | 421-06-22910 | Bracket | 75049- | |
| 12 | 421-06-22920 | Bracket | 75049- | |
| 13 | 01010-80820 | Bolt | 75049- | |
| 14 | 01643-30823 | Washer | 75049- | |
| 15 | 418-06-42751 | Cable | 77827- | |
| 15 | 418-06-42750 | Cable | 75049-77826 | |
| 16 | 04434-51012 | Clip | 75049- | |
| 17 | 418-06-42760 | Cable | 75049- | |
| 18 | 418-Z91-4230 | Cable | 75049- | |
| 19 | 418-944-4480 | Cable | 75049- | |
| 20 | 04434-51412 | Clip | 75049- | |
| 21 | 418-06-42770 | Cable | 75049- | |
| 22 | 08088-70000 | Switch, Battery Relay | 77827- | |
| 22 | 08088-30000 | Switch, Battery Relay | 75049-77826 | |
| 23 | 01010-80830 | Bolt | 75049- | |
| 24 | 01643-30823 | Washer | 75049- | |
| 25 | 600-815-2170 | Switch, Heater | 75049- | |
| 26 | 01010-80616 | Bolt | 75049- | |
| 27 | 01643-30623 | Washer | 75049- | |
| 28 | 01010-81020 | Bolt | 75049- | |
| 29 | 01643-31032 | Washer | 75049- | |
| 30 | 23S-61-51310 | Seal | 75049- |
