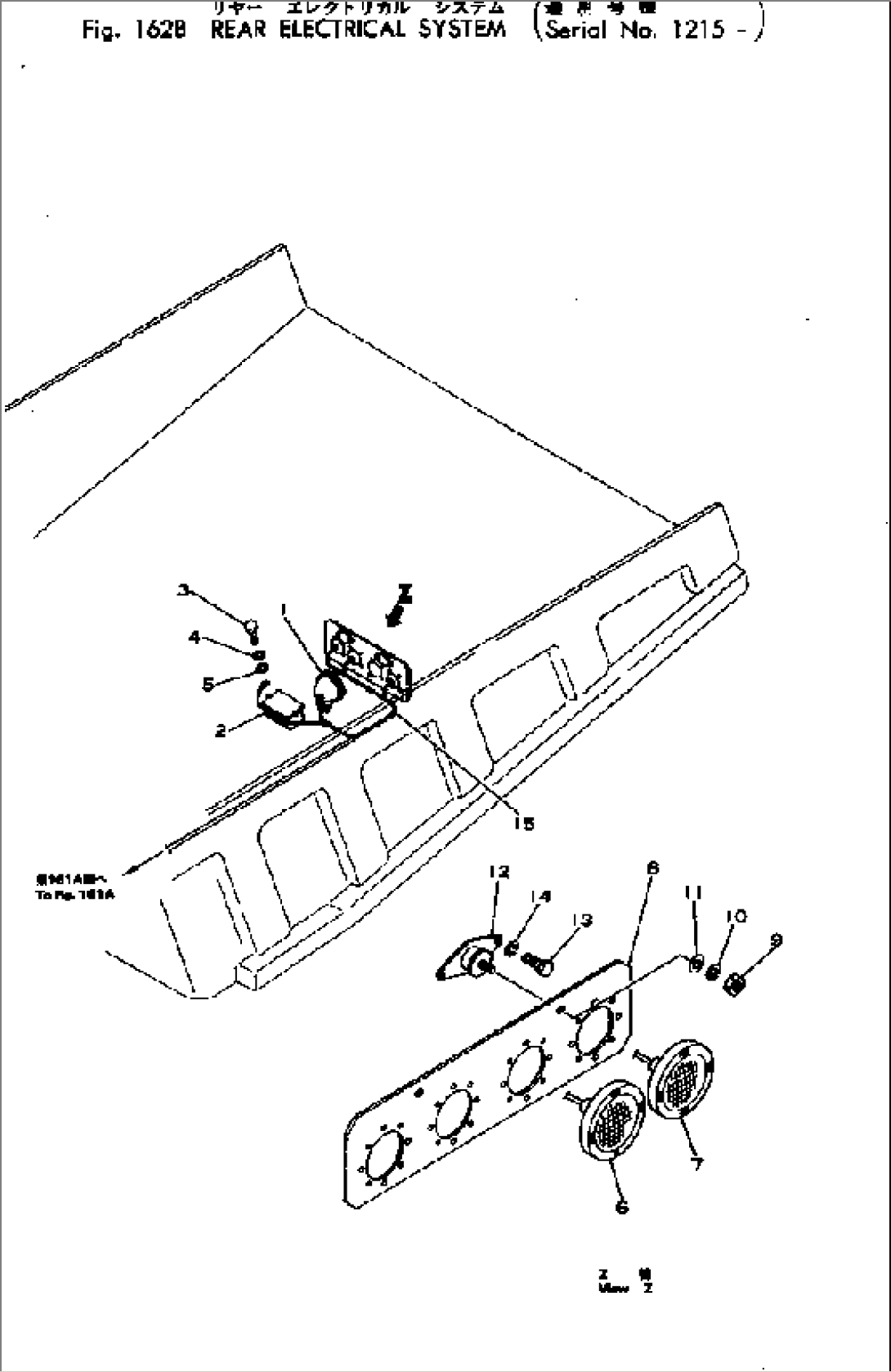

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08128-22400 | LAMP ASS'Y,BACK-UP | 1002- | |
| 1 | 08113-02480 | BULB, 80W | 1002- | |
| 2 | 566-06-15950 | ALARM,BACK | 1215- | |
| 3 | 01011-31005 | BOLT | 1215- | |
| 4 | 01602-01030 | WASHER | 1215- | |
| 5 | 01643-31032 | WASHER | 1215- | |
| 6 | 08134-22400 | LAMP ASS'Y,BRAKE AND TAIL | 1053- | |
| 6 | 08134-20001 | LENS | 1053- | |
| 6 | 08104-12420 | BULB, 25/10W | 1053- | |
| 6 | 08102-02403 | BULB, 3W | 1053- | |
| 7 | 08131-12400 | LAMP ASS'Y,TURN SIGNAL | 1053- | |
| 7 | 08131-10001 | LENS | 1053- | |
| 7 | 08105-12420 | BULB, 25W | 1002- | |
| 8 | 565-06-13550 | BRACKET | 1215- | |
| 9 | 01580-01008 | NUT | 1215- | |
| 10 | 01602-01030 | WASHER | 1215- | |
| 11 | 01643-31032 | WASHER | 1215- | |
| 12 | 565-03-11270 | CUSHION | 1215- | |
| 13 | 01010-30820 | BOLT | 1215- | |
| 14 | 01602-00825 | WASHER | 1215- | |
| 15 | 565-06-71711 | HARNESS | 1215- |
