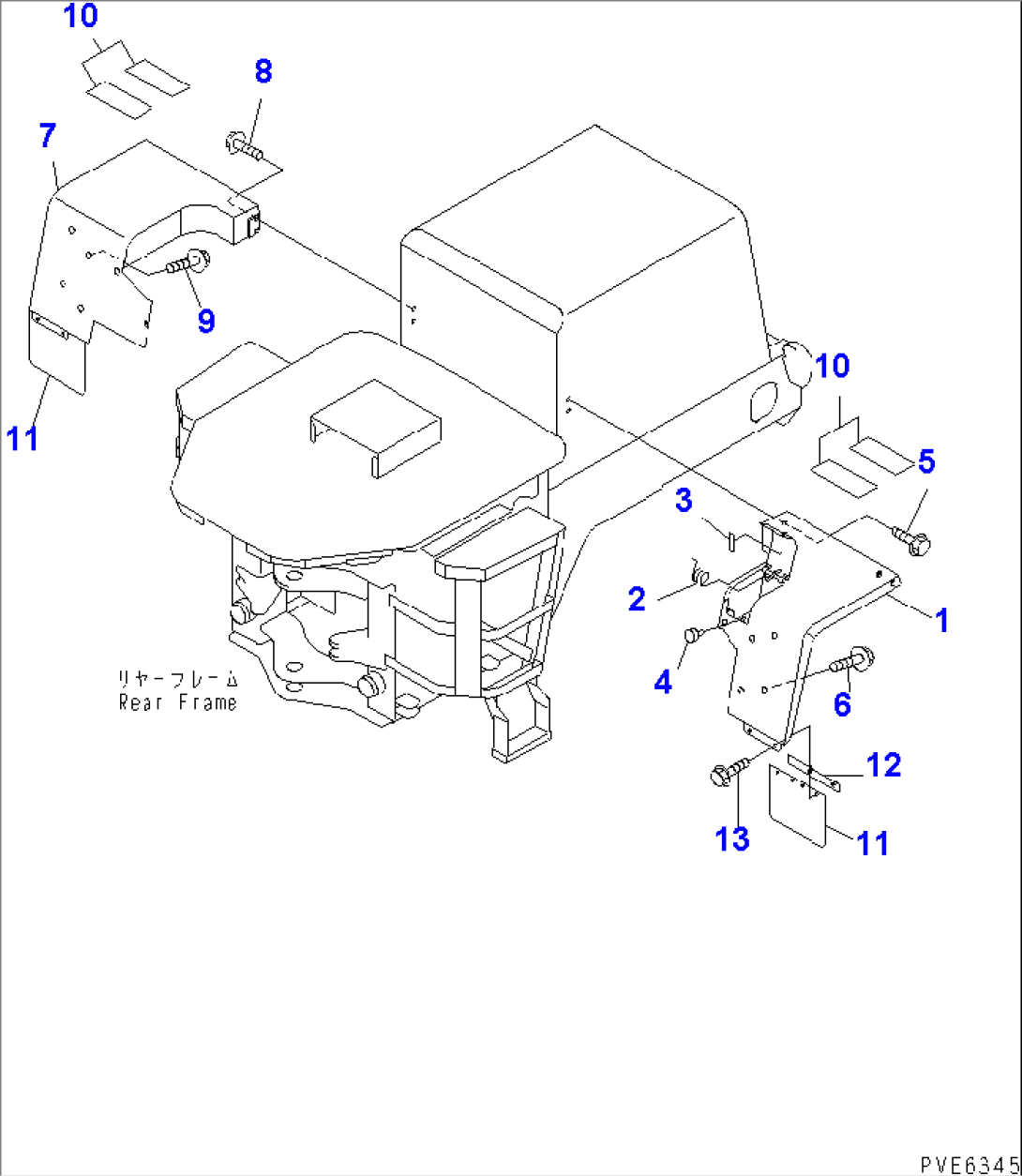

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-24750 | FENDER,L.H. | 50001- | |
| 2 | 418-Z80-1220 | SPRING | 50001- | |
| 3 | 417-54-24470 | CUSHION | 50001- | |
| 4 | 415-54-12680 | CUSHION | 50001- | |
| 5 | 01435-01230 | BOLT | 50001- | |
| 6 | 01435-01220 | BOLT | 50001- | |
| 7 | 417-54-24740 | FENDER,R.H. | 50001- | |
| 8 | 01435-01230 | BOLT | 50001- | |
| 9 | 01435-01220 | BOLT | 50001- | |
| 10 | 417-06-11321 | PLATE | 50001- | |
| 11 | 417-54-24760 | SHEET | 50001- | |
| 12 | 417-54-24770 | PLATE | 50001- | |
| 13 | 01435-01225 | BOLT | 50001- |
