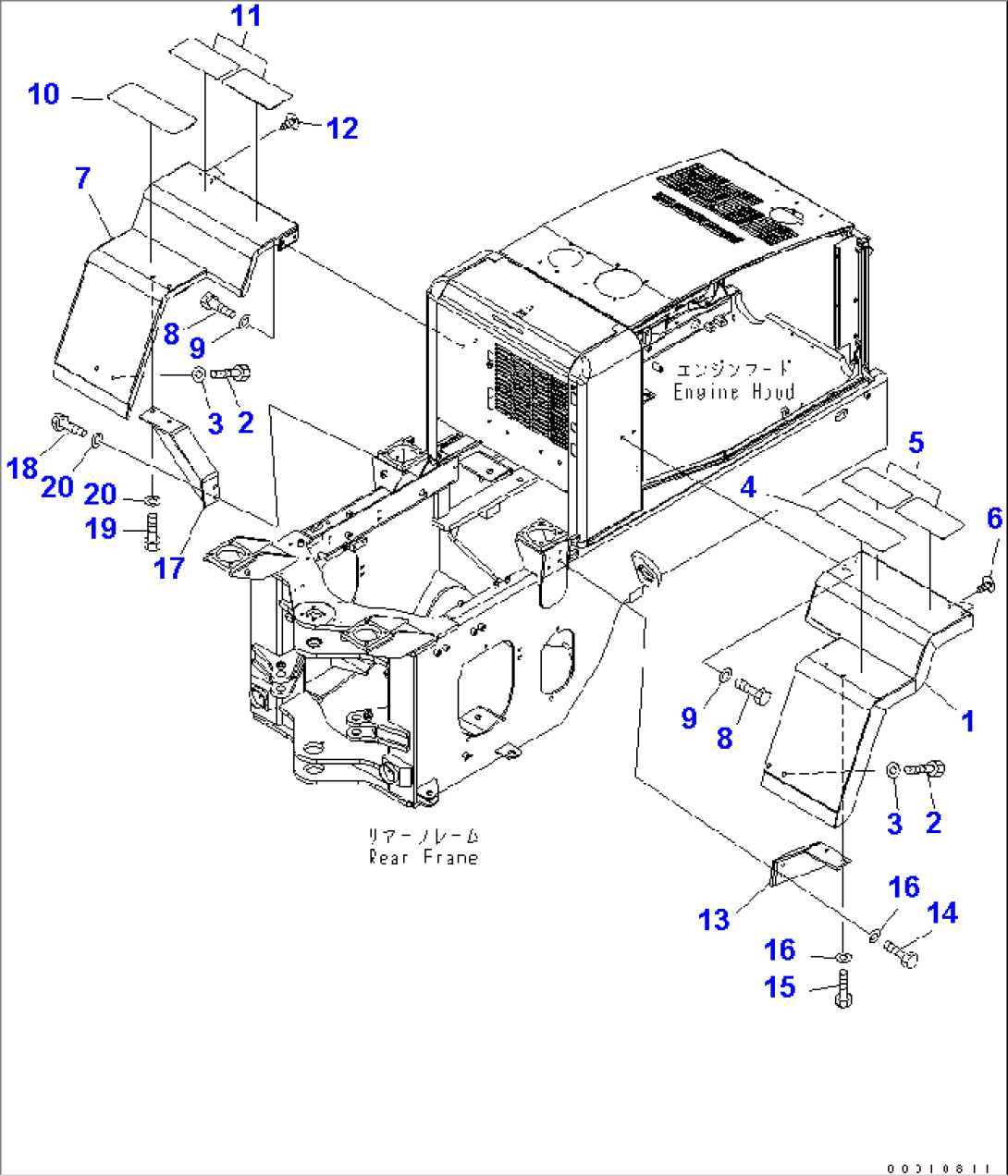

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-31212 | FENDER | 65001- | |
| 2 | 01010-81225 | BOLT | 65001- | |
| 3 | 01643-31232 | WASHER | 65001- | |
| 4 | 154-54-23260 | SEAT | 65001- | |
| 5 | 22B-00-11210 | SHEET | 65001- | |
| 6 | 421-54-21850 | PLUG | 65001- | |
| 7 | 417-54-31222 | FENDER | 65001- | |
| 8 | 01010-81225 | BOLT | 65001- | |
| 9 | 01643-31232 | WASHER | 65001- | |
| 10 | 154-54-23260 | SEAT | 65001- | |
| 11 | 22B-00-11210 | SHEET | 65001- | |
| 12 | 421-54-21850 | PLUG | 65001- | |
| 13 | 418-54-31230 | BRACKET,L.H. | 65001- | |
| 14 | 01010-81225 | BOLT | 65001- | |
| 15 | 01010-81230 | BOLT | 65001- | |
| 16 | 01643-31232 | WASHER | 65001- | |
| 17 | 418-54-31240 | BRACKET,R.H. | 65001- | |
| 18 | 01010-81225 | BOLT | 65001- | |
| 19 | 01010-81230 | BOLT | 65001- | |
| 20 | 01643-31232 | WASHER | 65001- |
