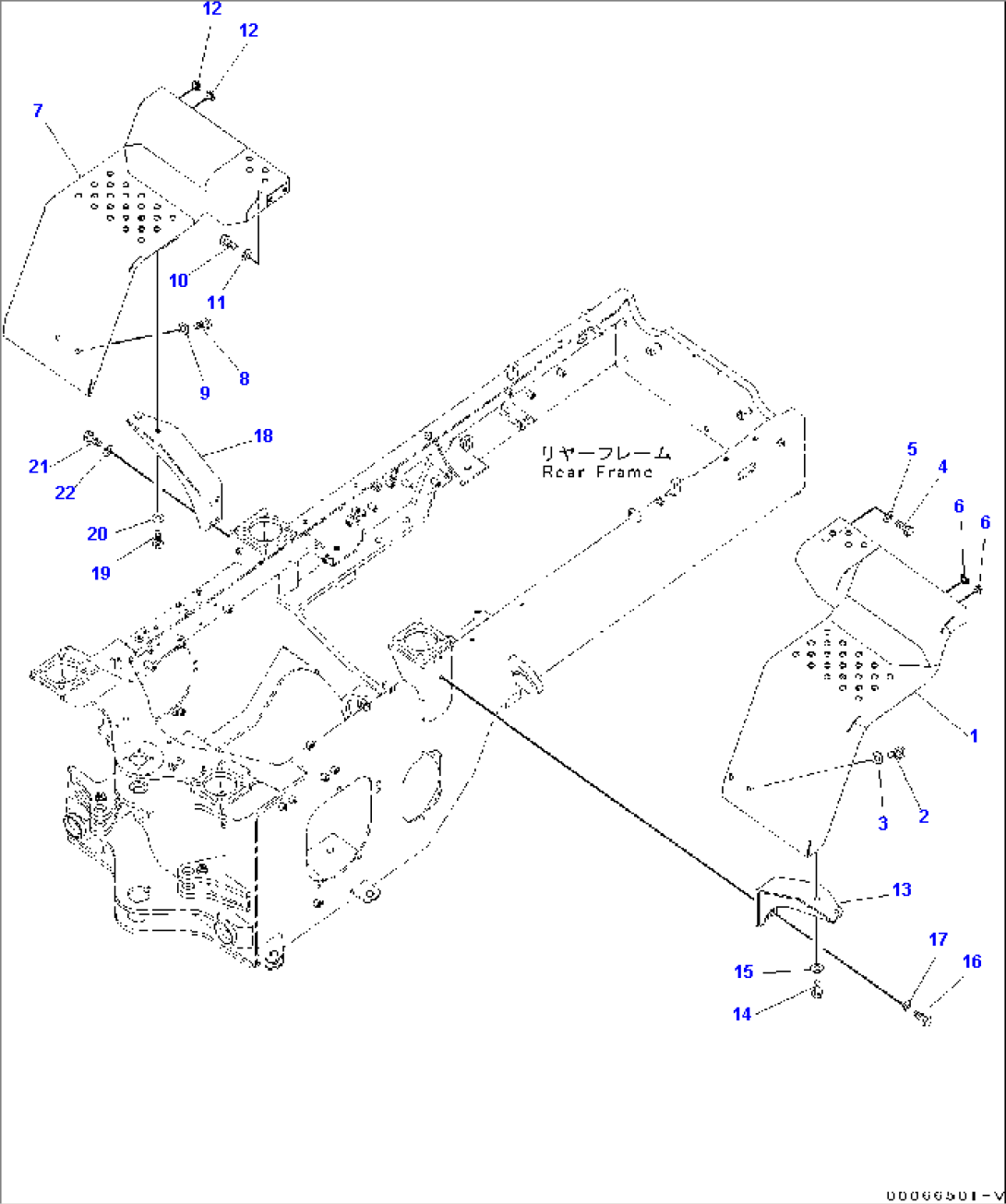

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-41211 | Fender, L.H. | B20001-- | |
| 2 | 01010-81225 | Bolt | B20001-- | |
| 3 | 01643-31232 | Washer | B20001-- | |
| 4 | 01010-81230 | Bolt | B20001-- | |
| 5 | 01643-31232 | Washer | B20001-- | |
| 6 | 421-54-21850 | Plug | B20001-- | |
| 7 | 417-54-41221 | Fender, R.H. | B20001-- | |
| 8 | 01010-81225 | Bolt | B20001-- | |
| 9 | 01643-31232 | Washer | B20001-- | |
| 10 | 01010-81230 | Bolt | B20001-- | |
| 11 | 01643-31232 | Washer | B20001-- | |
| 12 | 421-54-21850 | Plug | B20001-- | |
| 13 | 418-54-41230 | Bracket, L.H. | B20001-- | |
| 14 | 01010-81225 | Bolt | B20001-- | |
| 15 | 01643-31232 | Washer | B20001-- | |
| 16 | 01010-81230 | Bolt | B20001-- | |
| 17 | 01643-31232 | Washer | B20001-- | |
| 18 | 418-54-41240 | Bracket, R.H. | B20001-- | |
| 19 | 01010-81225 | Bolt | B20001-- | |
| 20 | 01643-31232 | Washer | B20001-- | |
| 21 | 01010-81230 | Bolt | B20001-- | |
| 22 | 01643-31232 | Washer | B20001-- |
