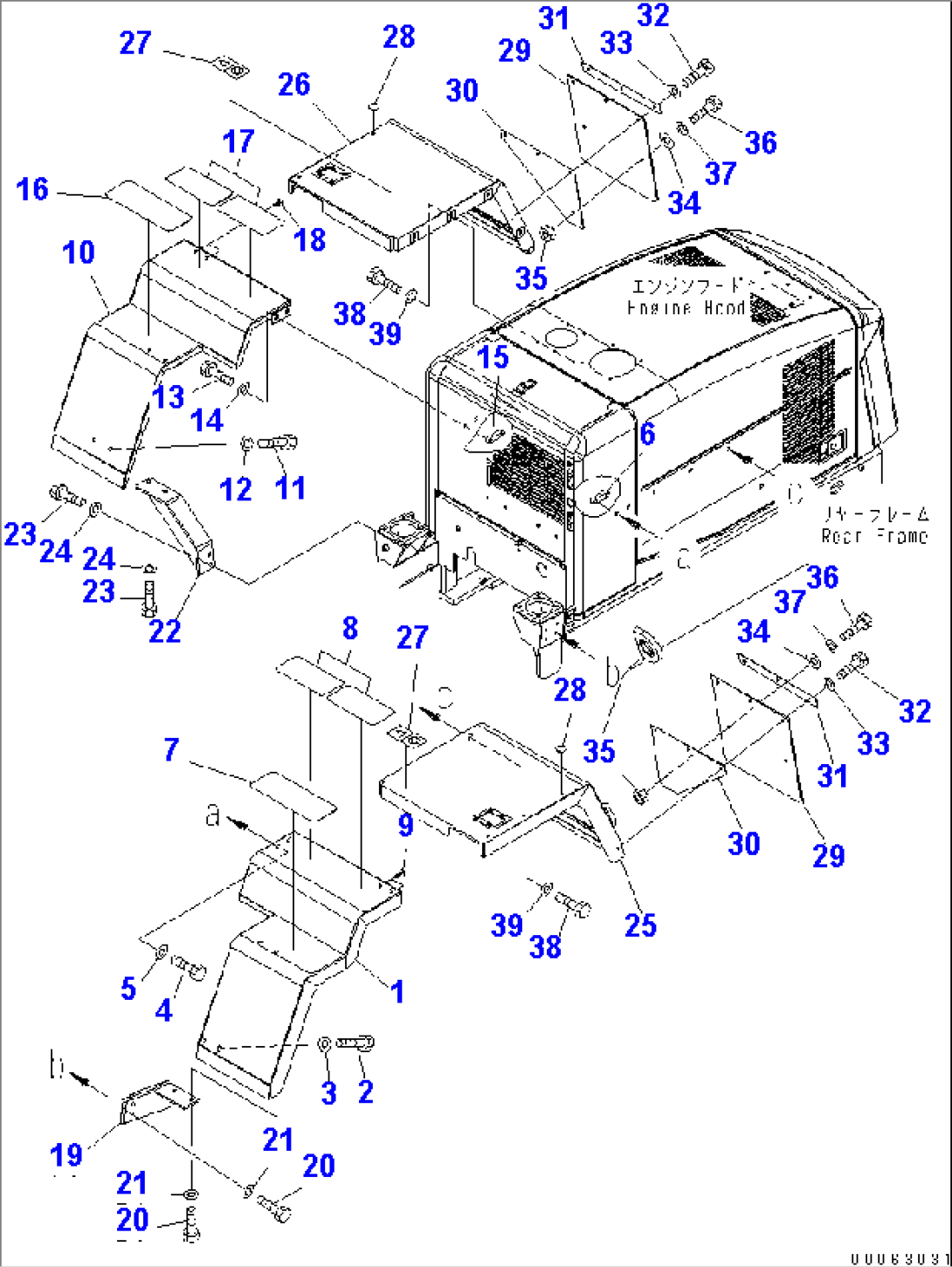

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-31212 | FENDER | 65001- | |
| 2 | 01010-81225 | BOLT | 68848- | |
| 3 | 01643-31232 | WASHER | 68848- | |
| 4 | 01010-81230 | BOLT | 68848- | |
| 5 | 01643-31232 | WASHER | 68848- | |
| 6 | 418-54-33570 | SEAT | 68848- | |
| 7 | 154-54-23260 | SEAT | 65001- | |
| 8 | 22B-00-11210 | SHEET | 65001- | |
| 9 | 421-54-21850 | PLUG | 65001- | |
| 10 | 417-54-31222 | FENDER | 65001- | |
| 11 | 01010-81225 | BOLT | 68848- | |
| 12 | 01643-31232 | WASHER | 68848- | |
| 13 | 01010-81230 | BOLT | 68848- | |
| 14 | 01643-31232 | WASHER | 68848- | |
| 15 | 418-54-33570 | SEAT | 68848- | |
| 16 | 154-54-23260 | SEAT | 65001- | |
| 17 | 22B-00-11210 | SHEET | 65001- | |
| 18 | 421-54-21850 | PLUG | 65001- | |
| 19 | 418-54-31231 | BRACKET,L.H. | 68848- | |
| 20 | 01010-81230 | BOLT | 68848- | |
| 21 | 01643-31232 | WASHER | 68848- | |
| 22 | 418-54-31241 | BRACKET,R.H. | 68848- | |
| 23 | 01010-81230 | BOLT | 68848- | |
| 24 | 01643-31232 | WASHER | 68848- | |
| 25 | 418-54-31317 | FENDER,L.H. | 68848- | |
| 26 | 418-54-31326 | FENDER,R.H. | 68848- | |
| 27 | 09805-03000 | PLATE, SAFETY | 65001- | |
| 28 | 416-54-34230 | PLUG | 65001- | |
| 29 | 418-54-34650 | SHEET | 65001- | |
| 30 | 418-54-34640 | PLATE | 65001- | |
| 31 | 418-54-24570 | PLATE | 65001- | |
| 32 | 01010-81230 | BOLT | 65001- | |
| 33 | 01643-31232 | WASHER | 65001- | |
| 34 | 416-03-11210 | WASHER | 65001- | |
| 35 | 01580-11210 | NUT | 65001- | |
| 36 | 01010-81225 | BOLT | 65001- | |
| 37 | 01643-31232 | WASHER | 65001- | |
| 38 | 01010-81225 | BOLT | 65001- | |
| 39 | 01643-31232 | WASHER | 65001- |
