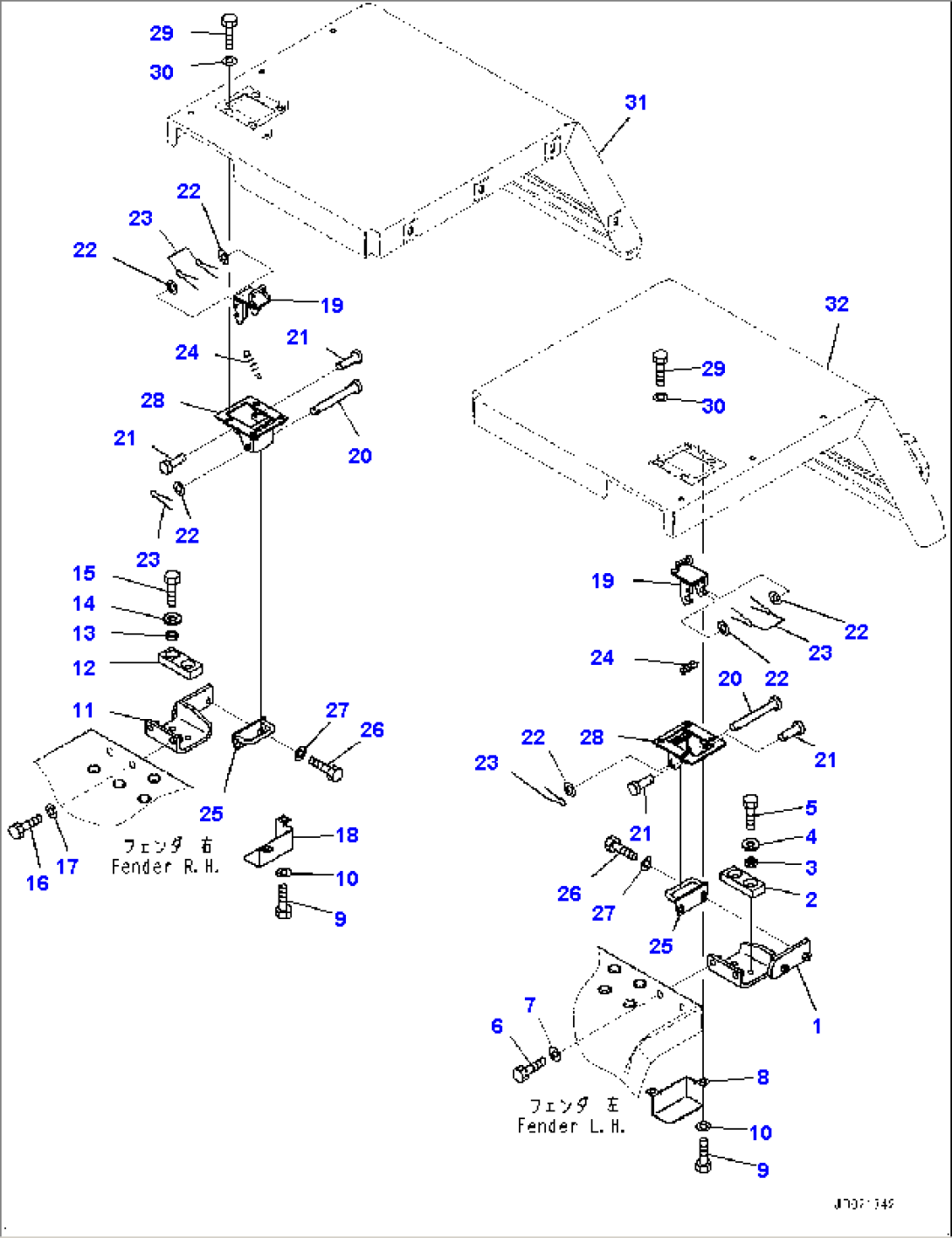

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-44612 | Bracket, L.H. | 75001- | |
| 2 | 418-54-44630 | Cushion | 75001- | |
| 3 | 203-57-53180 | Collar | 75001- | |
| 4 | 203-54-56970 | Washer | 75001- | |
| 5 | 01010-81030 | Bolt | 75001- | |
| 6 | 01010-81230 | Bolt | 75001- | |
| 7 | 01643-31232 | Washer | 75001- | |
| 8 | 418-54-34172 | Cover, L.H. | 75001- | |
| 9 | 01010-81016 | Bolt | 75001- | |
| 10 | 01643-31032 | Washer | 75001- | |
| 11 | 418-54-44622 | Bracket, R.H. | 75001- | |
| 12 | 418-54-44630 | Cushion | 75001- | |
| 13 | 203-57-53180 | Collar | 75001- | |
| 14 | 203-54-56970 | Washer | 75001- | |
| 15 | 01010-81030 | Bolt | 75001- | |
| 16 | 01010-81230 | Bolt | 75001- | |
| 17 | 01643-31232 | Washer | 75001- | |
| 18 | 418-54-35621 | Cover, R.H. | 75001- | |
| 19 | 418-54-35630 | Latch | 75001- | |
| 20 | 415-54-11630 | Pin | 75001- | |
| 21 | 04205-10622 | Pin | 75001- | |
| 22 | 01641-20608 | Washer | 75001- | |
| 23 | 04050-11612 | Pin, Cotter | 75001- | |
| 24 | 417-54-24610 | Spring | 75001- | |
| 25 | 418-54-34621 | Striker | 75001- | |
| 26 | 01010-81030 | Bolt | 75001- | |
| 27 | 01643-31032 | Washer | 75001- | |
| 28 | 418-54-44181 | Bracket | 75001- | |
| 29 | 01010-81020 | Bolt | 75001- | |
| 30 | 01643-31032 | Washer | 75001- | |
| 31 | (418-54-31328) | Fender | - | |
| 32 | (418-54-31319) | Fender | - |
