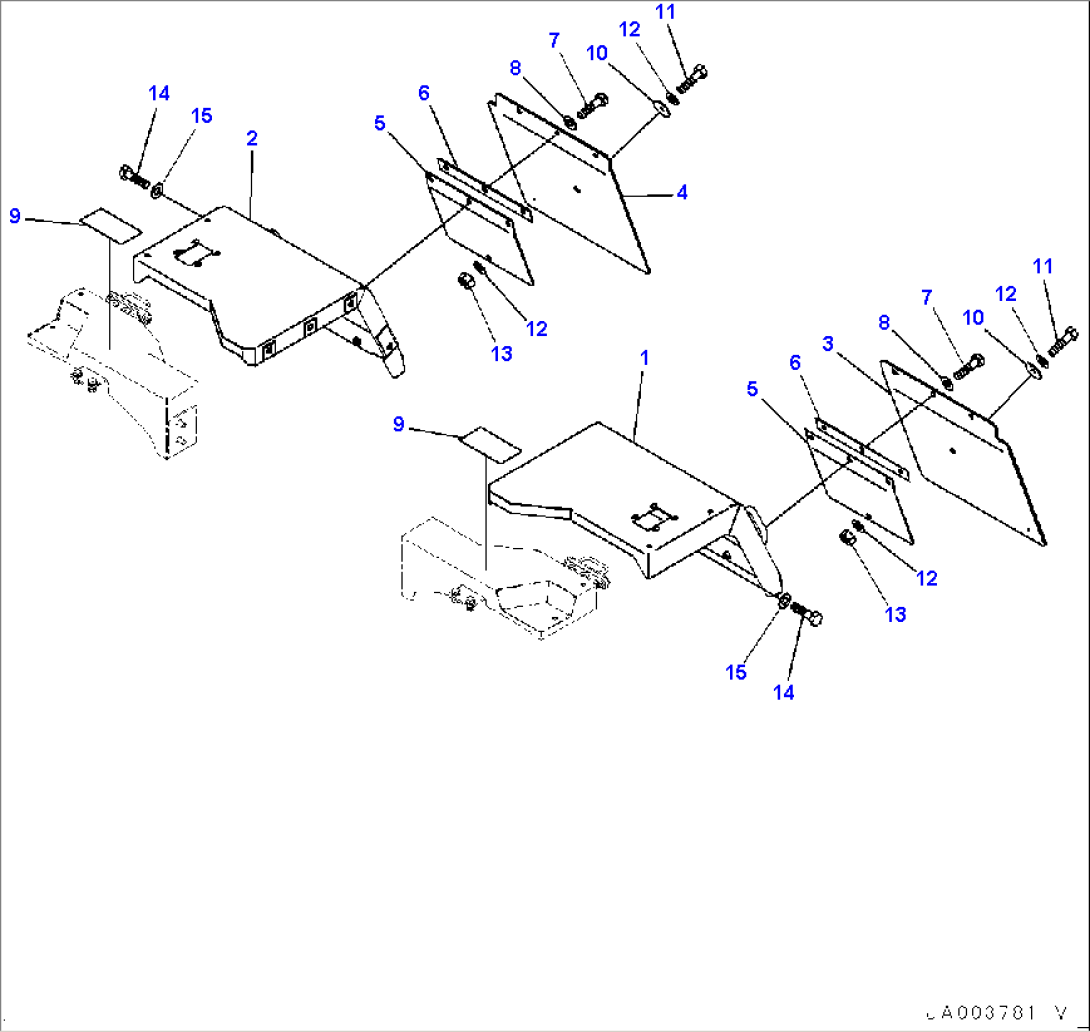

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-54-44512 | Fender | 82954- | |
| 1 | 416-54-44511 | Fender | 80096-82953 | |
| 1 | 416-54-44510 | Fender | 80001-80095 | |
| 2 | 416-54-44522 | Fender | 82954- | |
| 2 | 416-54-44521 | Fender | 80096-82953 | |
| 2 | 416-54-44520 | Fender | 80001-80095 | |
| 3 | 416-54-32861 | Sheet | 80001- | |
| 4 | 416-54-32871 | Sheet | 80001- | |
| 5 | 416-54-34572 | Plate | 80001- | |
| 6 | 417-54-24540 | Plate | 80001- | |
| 7 | 01010-81230 | Bolt | 80001- | |
| 8 | 01643-31232 | Washer | 80001- | |
| 9 | 09805-C0881 | Plate, Caution, Do Not Get On | 80001- | |
| 10 | 416-03-11210 | Washer | 80001- | |
| 11 | 01010-81225 | Bolt | 80001- | |
| 12 | 01643-31232 | Washer | 80001- | |
| 13 | 01580-11210 | Nut | 80001- | |
| 14 | 01010-81225 | Bolt | 80001- | |
| 15 | 01643-31232 | Washer | 80001- |
