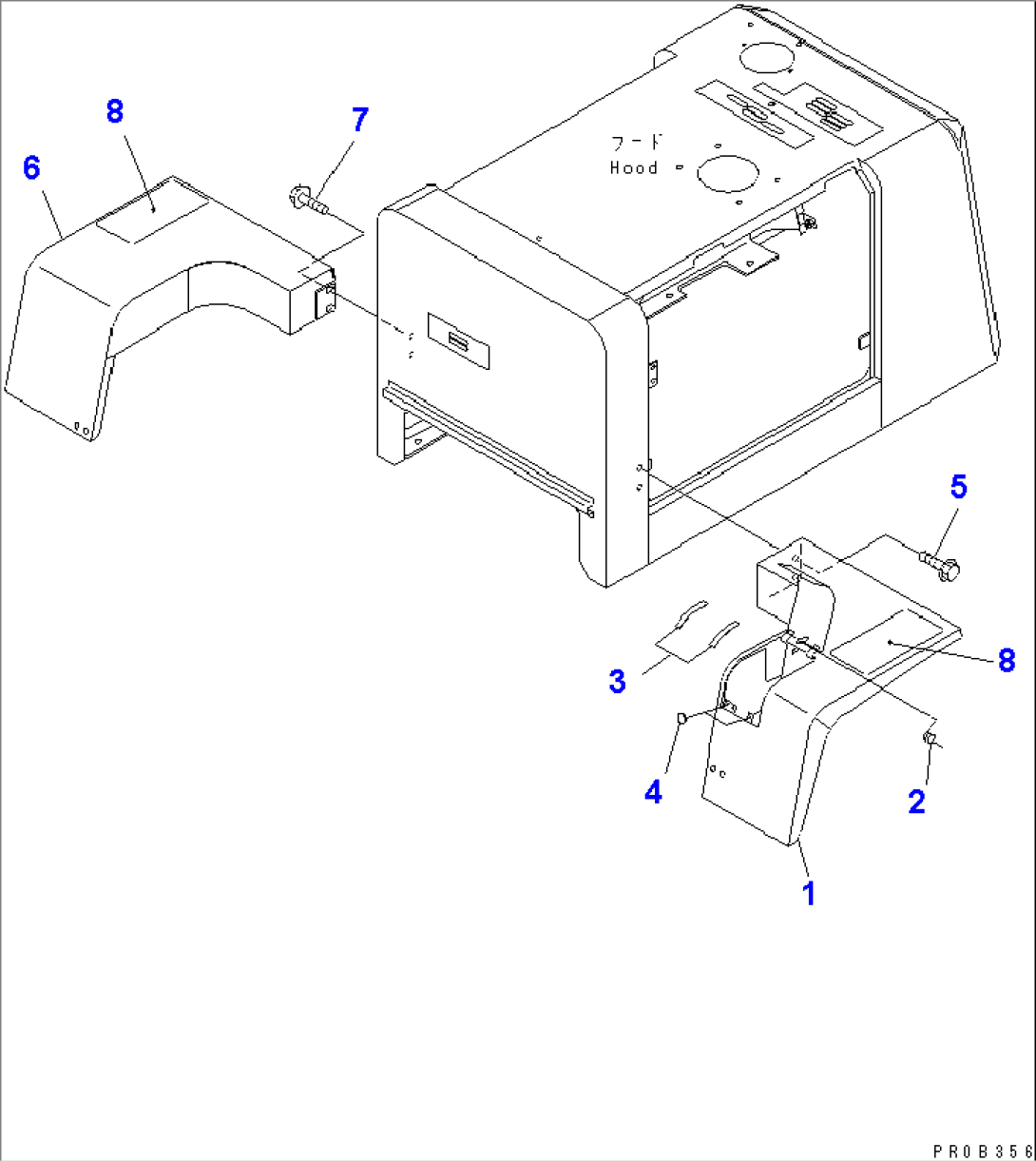

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-54-24190 | FENDER,L.H. | 11001-11500 | |
| 2 | 418-Z80-1220 | SPRING | 10001-@ | |
| 3 | 417-54-24470 | CUSHION | 10001-@ | |
| 4 | 415-54-12680 | CUSHION | 10001-@ | |
| 5 | 01435-01225 | BOLT | 10001-11500 | |
| 6 | 415-54-24290 | FENDER,R.H. | 11001-11500 | |
| 7 | 01435-01225 | BOLT | 10001-11500 | |
| 8 | 417-06-11321 | PLATE | 10001-@ |
