| Item | Part No. | Part Name | Qty | Serial No. |
| (421-23-20000) | AXLE ASS'Y,REAR | 50001- | ||

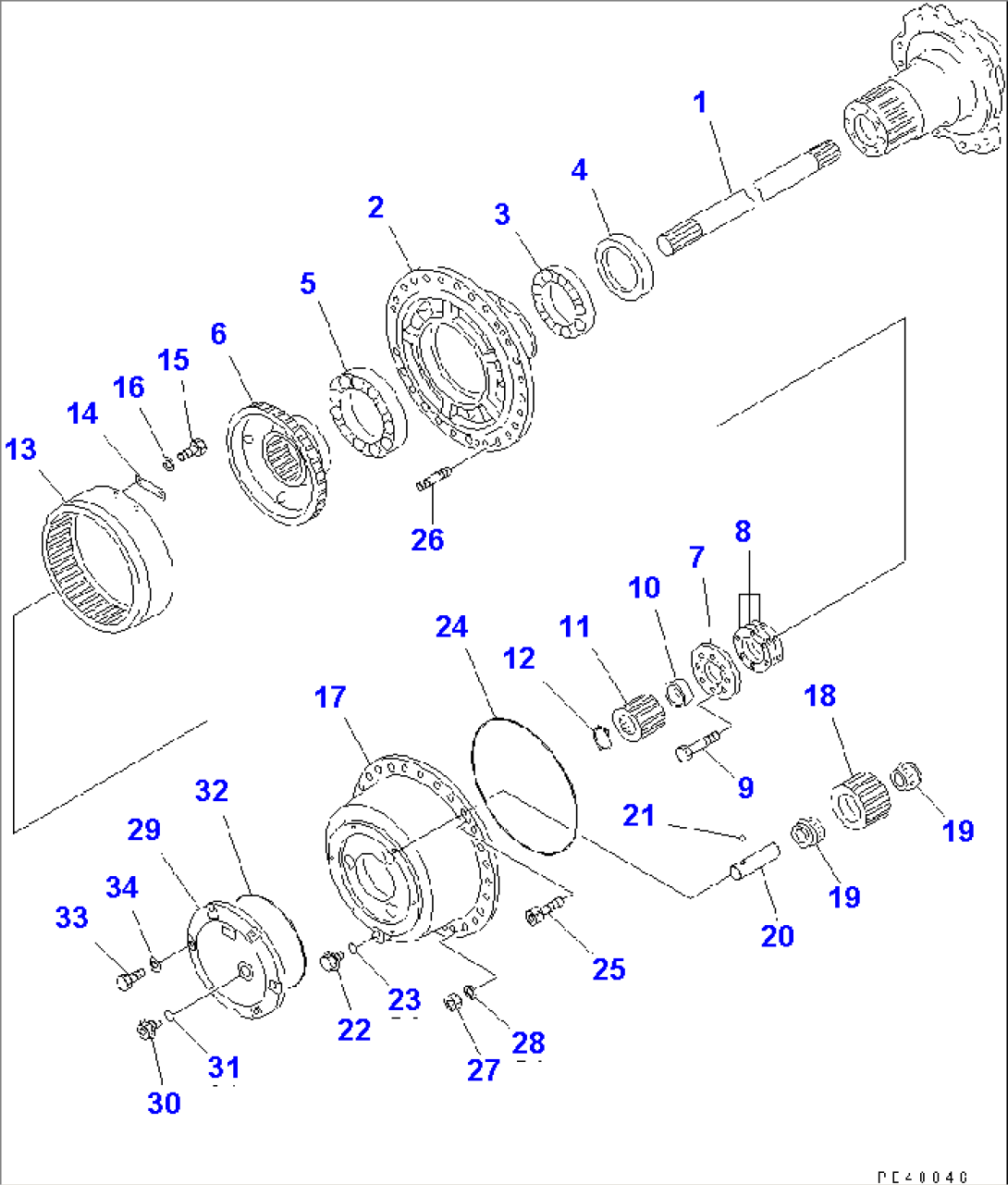

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3201 TO 3231. | ||||
| 1 | \6\ | SHAFT | 50001- | |
| 2 | 421-22-22740 | HUB | 50001- | |
| 3 | 421-22-12780 | BEARING | 50001- | |
| 4 | 421-22-12140 | RETAINER | 50001- | |
| 5 | 421-22-12790 | BEARING | 50001- | |
| 6 | 421-22-12340 | HUB | 50001- | |
| 7 | 421-22-12220 | RETAINER | 50001- | |
| 8 | 421-22-12160 | SHIM, 0.05MM | 50001- | |
| 8 | 421-22-12170 | SHIM, 0.2MM | 50001- | |
| 8 | 421-22-12180 | SHIM, 0.5MM | 50001- | |
| 8 | 421-22-12190 | SHIM, 1.0MM | 50001- | |
| 9 | 01010-31450 | BOLT | 50001- | |
| 10 | 421-22-12350 | SPACER | 50001- | |
| 11 | 421-22-12660 | GEAR | 50001- | |
| 12 | 04064-06020 | RING,SNAP | 50001- | |
| 13 | \6\ | GEAR | 50001- | |
| 14 | 421-22-12360 | PLATE | 50001- | |
| 15 | 01010-30820 | BOLT | 50001- | |
| 16 | 01643-30823 | WASHER | 50001- | |
| \6\ | CARRIER ASS'Y | 50001- | ||
| 17 | 421-22-12690 | CARRIER | 50001- | |
| 18 | 421-22-12583 | GEAR | 50001- | |
| 19 | 421-22-12770 | BEARING | 50001- | |
| 20 | 421-22-12551 | SHAFT | 50001- | |
| 21 | 04260-01587 | BALL | 50001- | |
| 22 | 07044-12412 | PLUG | 50001- | |
| 23 | 07002-02434 | O-RING | 50001- | |
| 24 | 07000-05410 | O-RING | 50001- | |
| 25 | 01252-41025 | BOLT | 50001- | |
| 26 | 01144-62070 | STUD | 50001- | |
| 27 | 423-22-12790 | NUT | 50001- | |
| 28 | 01643-32060 | WASHER | 50001- | |
| 29 | \6\ | COVER | 50001- | |
| 30 | 07041-13612 | PLUG | 50001- | |
| 31 | 07002-03634 | O-RING | 50001- | |
| 32 | 07000-05280 | O-RING | 50001- | |
| 33 | 01010-31235 | BOLT | 50001- | |
| 34 | 01643-31232 | WASHER | 50001- |
