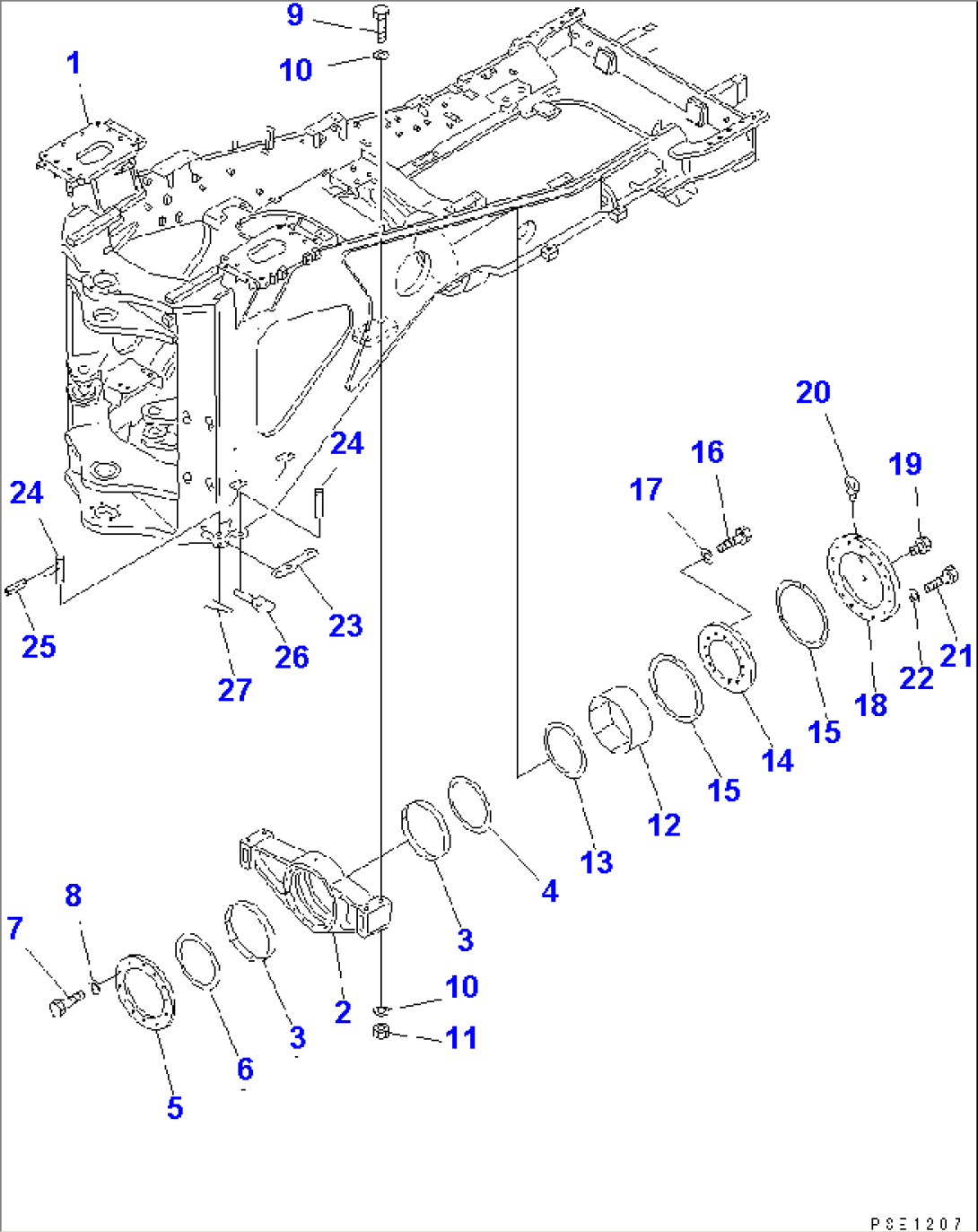

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-46-12380 | FRAME,REAR | 10008- | ||
| 1 | 427-J49-1112 | FRAME,REAR | 10001-10007 | |
| 2 | 427-46-12122 | SUPPORT,FRONT | 10001- | |
| 3 | 427-46-12260 | BUSHING | 10001- | |
| 4 | 427-46-12311 | PACKING | 10001- | |
| 5 | 427-46-12270 | RETAINER | 10001- | |
| 6 | 427-46-12281 | PACKING | 10001- | |
| 7 | 01010-81450 | BOLT | 10001- | |
| 8 | 01643-31445 | WASHER | 10001- | |
| 9 | 427-46-12130 | BOLT | 10001- | |
| 10 | 01643-33990 | WASHER | 10001- | |
| 11 | 01580-03931 | NUT | 10001- | |
| 12 | 427-46-12320 | BUSHING | 10001- | |
| 13 | 427-46-12311 | PACKING | 10001- | |
| 14 | 427-46-12170 | PLATE,THRUST | 10001- | |
| 15 | 427-46-12161 | WASHER,THRUST | 10001- | |
| 16 | 01011-82420 | BOLT | 10001- | |
| 17 | 01643-32460 | WASHER | 10001- | |
| 18 | 427-46-12180 | COVER,THRUST | 10001- | |
| 19 | 07029-00000 | VALVE,RELIEF | 10001- | |
| 20 | 04530-11018 | BOLT,EYE | 10001- | |
| 21 | 01011-82400 | BOLT | 10001- | |
| 22 | 01643-32460 | WASHER | 10001- | |
| 23 | 427-46-12211 | PLATE | 10001- | |
| 24 | 427-46-12221 | PIN | 10001- | |
| 25 | 04025-01080 | PIN,SPRING | 10001- | |
| 26 | 426-46-12280 | PIN | 10001- | |
| 27 | 04050-10070 | PIN,COTTER | 10001- |
