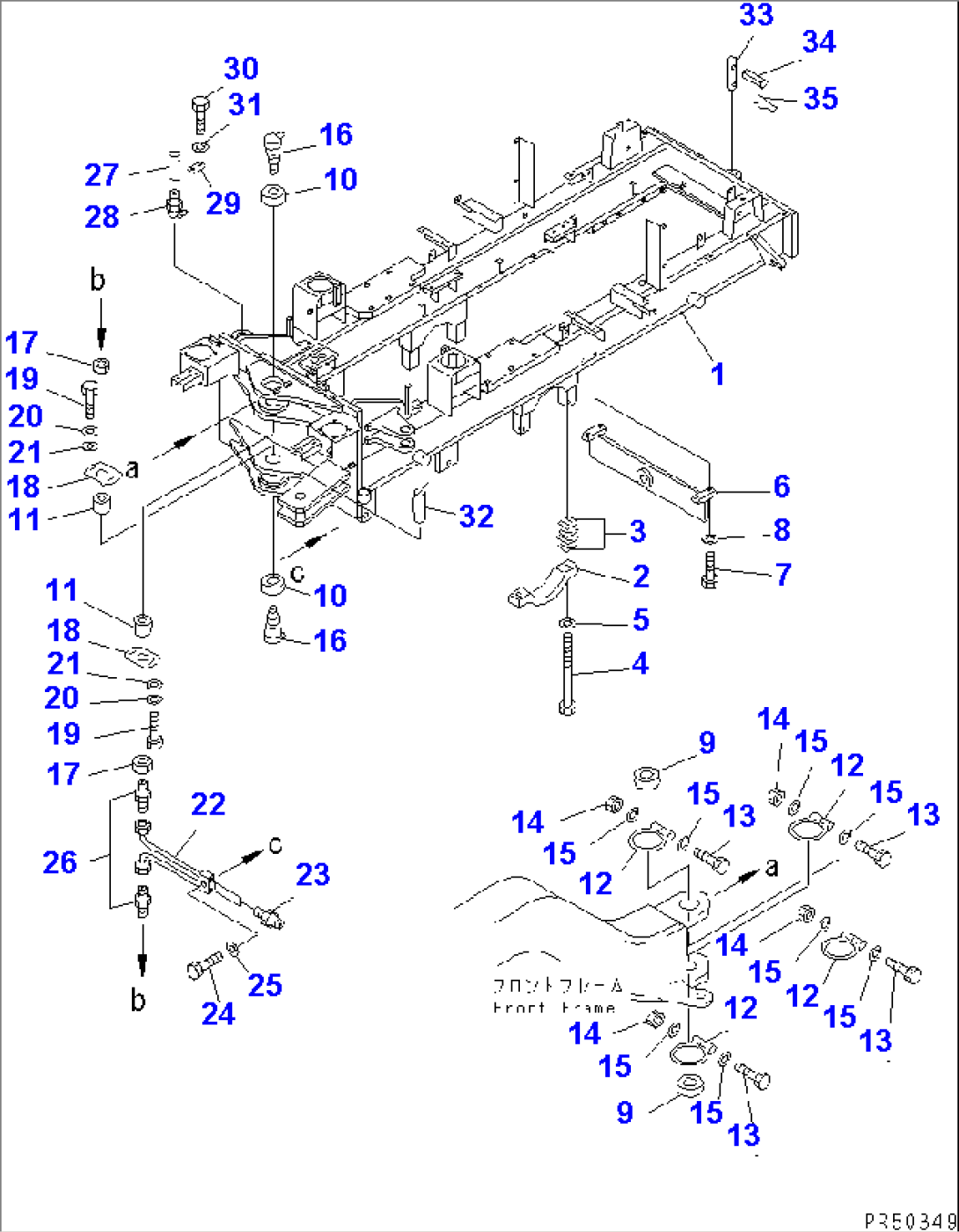

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23A-46-12042 | FRAME,REAR | 1701- | |
| 23A-46-12041 | FRAME,REAR | 1501-1700 | ||
| 23A-46-12040 | FRAME,REAR | 1001-1500 | ||
| 2 | 23A-46-12520 | CAP | 1001- | |
| 3 | 23A-46-00120 | SHIM ASS'Y | 1001- | |
| \6\ | SHIM¤ 0.1MM | 1001- | ||
| \6\ | SHIM¤ 0.2MM | 1001- | ||
| \6\ | SHIM¤ 0.5MM | 1001- | ||
| 4 | 01011-83080 | BOLT | 1069- | |
| 01011-53080 | BOLT | 1001-1068 | ||
| 5 | 01643-33080 | WASHER | 1001- | |
| 6 | 23B-22-11430 | HANGER | 1001- | |
| 7 | 01010-81650 | BOLT | 1701- | |
| \0\01010-51650 | BOLT | 1001-1700 | ||
| 8 | 01643-31645 | WASHER | 1001- | |
| 9 | 232-46-53211 | BUSHING | 1057- | |
| 232-46-53210 | BUSHING | 1001-1056 | ||
| 10 | 236-46-13381 | BUSHING | 1057- | |
| 236-46-13380 | BUSHING | 1001-1056 | ||
| 11 | 236-46-13390 | BUSHING | 1001- | |
| 12 | 236-46-13610 | O-RING | 1001- | |
| 13 | 235-46-11710 | BOLT | 1001- | |
| 14 | 01598-00608 | NUT | 1001- | |
| 15 | 01640-20610 | WASHER | 1001- | |
| 16 | 23A-46-11371 | PIN | 1057- | |
| 23A-46-11370 | PIN | 1001-1056 | ||
| 17 | 236-46-13410 | NUT | 1001- | |
| 18 | 23A-46-11380 | PLATE | 1001- | |
| 19 | 01010-81630 | BOLT | 1701- | |
| \0\01010-51630 | BOLT | 1001-1700 | ||
| 20 | 01643-31645 | WASHER | 1001- | |
| 21 | 01643-31645 | WASHER | 1001- | |
| 22 | 23B-46-11290 | TUBE | 1001- | |
| 23 | 07020-00000 | FITTING,GREASE | 1001- | |
| 24 | 01010-81235 | BOLT | 1701- | |
| \0\01010-51235 | BOLT | 1001-1700 | ||
| 25 | 01643-31232 | WASHER | 1001- | |
| 26 | 07213-50610 | CONNECTOR | 1001- | |
| 27 | 23A-46-11390 | PIN | 1001- | |
| 28 | 07020-00900 | FITTING,GREASE | 1001- | |
| 29 | 04082-00206 | LOCK | 1001- | |
| 30 | 01010-81225 | BOLT | 1701- | |
| \0\01010-51225 | BOLT | 1001-1700 | ||
| 31 | 01643-31232 | WASHER | 1001- | |
| 32 | 23A-46-11410 | PIN,ARTICULATE LOCK | 1001- | |
| 33 | 232-46-11711 | PIN (O.P.) | 1001- | |
| 34 | 04085-01065 | PIN,SPRING (O.P.) | 1001- | |
| 35 | 232-46-11920 | PIN,SNAP (O.P.) | 1001- |
