| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-46-12201 | SEAT ASS'Y,REAR | 1001- | |
| \6\ | FRAME SUB ASS'Y | 1001- | ||
| 2 | 566-46-42810 | BUSHING | 1001- | |
| 3 | 07145-00060 | SEAL | 1001- | |
| 4 | 07020-00000 | FITTING,GREASE | 1001- |
Поиск по каталогу

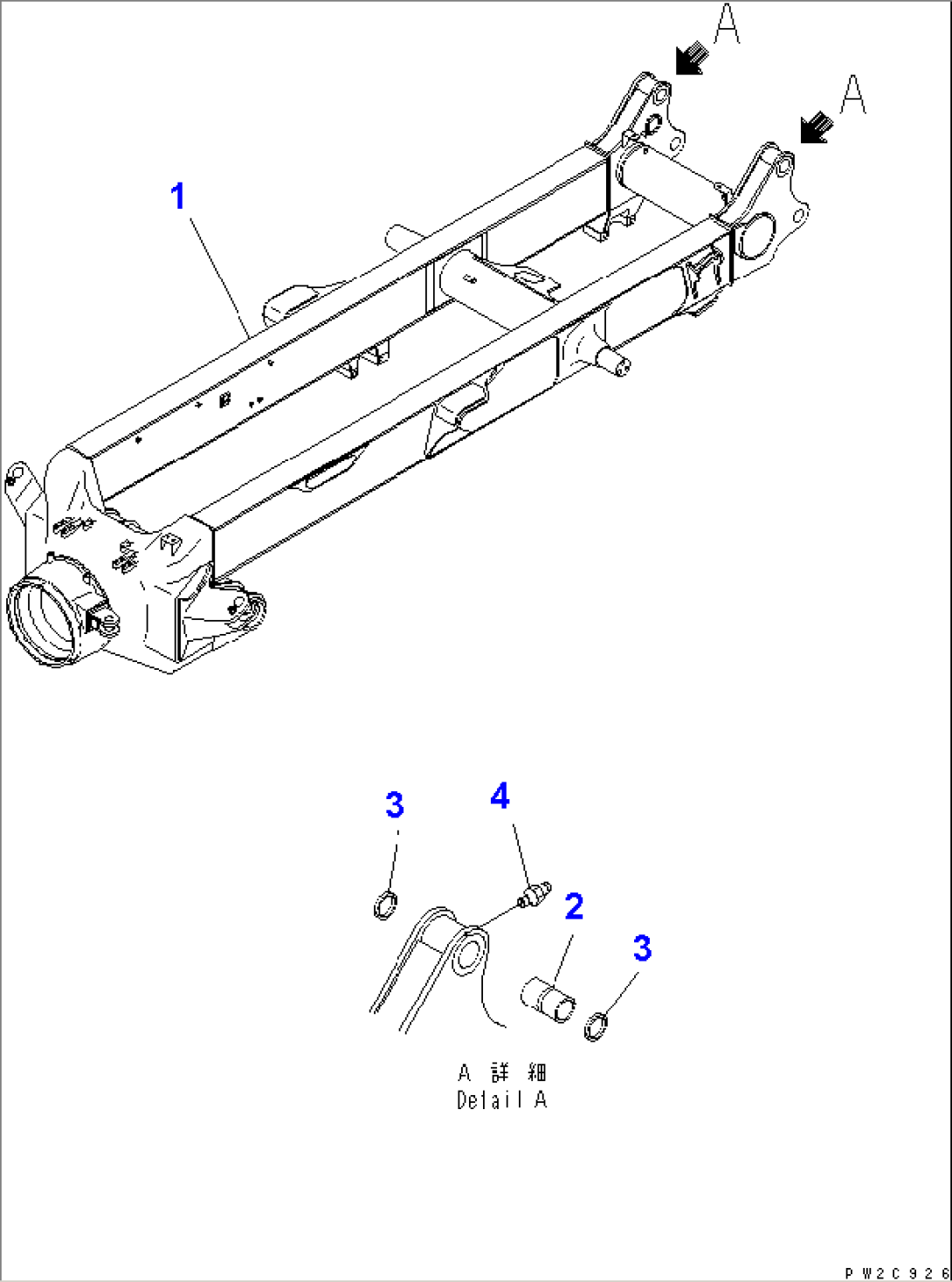

REAR FRAME
| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-46-12201 | SEAT ASS'Y,REAR | 1001- | |
| \6\ | FRAME SUB ASS'Y | 1001- | ||
| 2 | 566-46-42810 | BUSHING | 1001- | |
| 3 | 07145-00060 | SEAL | 1001- | |
| 4 | 07020-00000 | FITTING,GREASE | 1001- |
