| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-46-10200 | REAR FRAME ASS'Y | A10001- | |
| 56B-46-12103 | FRAME SUB ASS'Y | A10001- | ||
| 2 | 566-46-42810 | BUSHING | A10001- | |
| 3 | 07145-00060 | SEAL | A10001- | |
| 4 | 07020-00900 | FITTING,GREASE | A10001- |
Поиск по каталогу

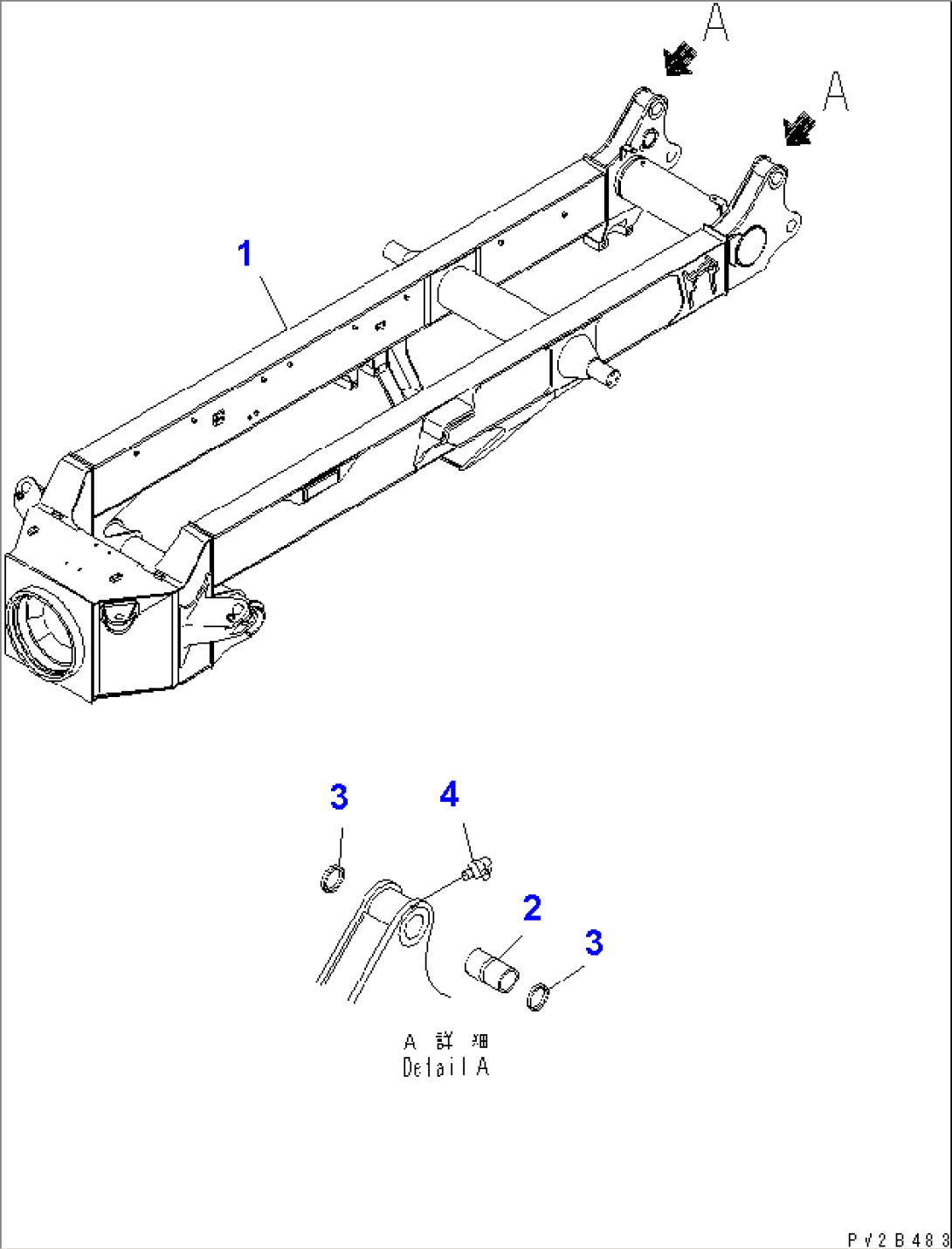

REAR FRAME
| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-46-10200 | REAR FRAME ASS'Y | A10001- | |
| 56B-46-12103 | FRAME SUB ASS'Y | A10001- | ||
| 2 | 566-46-42810 | BUSHING | A10001- | |
| 3 | 07145-00060 | SEAL | A10001- | |
| 4 | 07020-00900 | FITTING,GREASE | A10001- |
