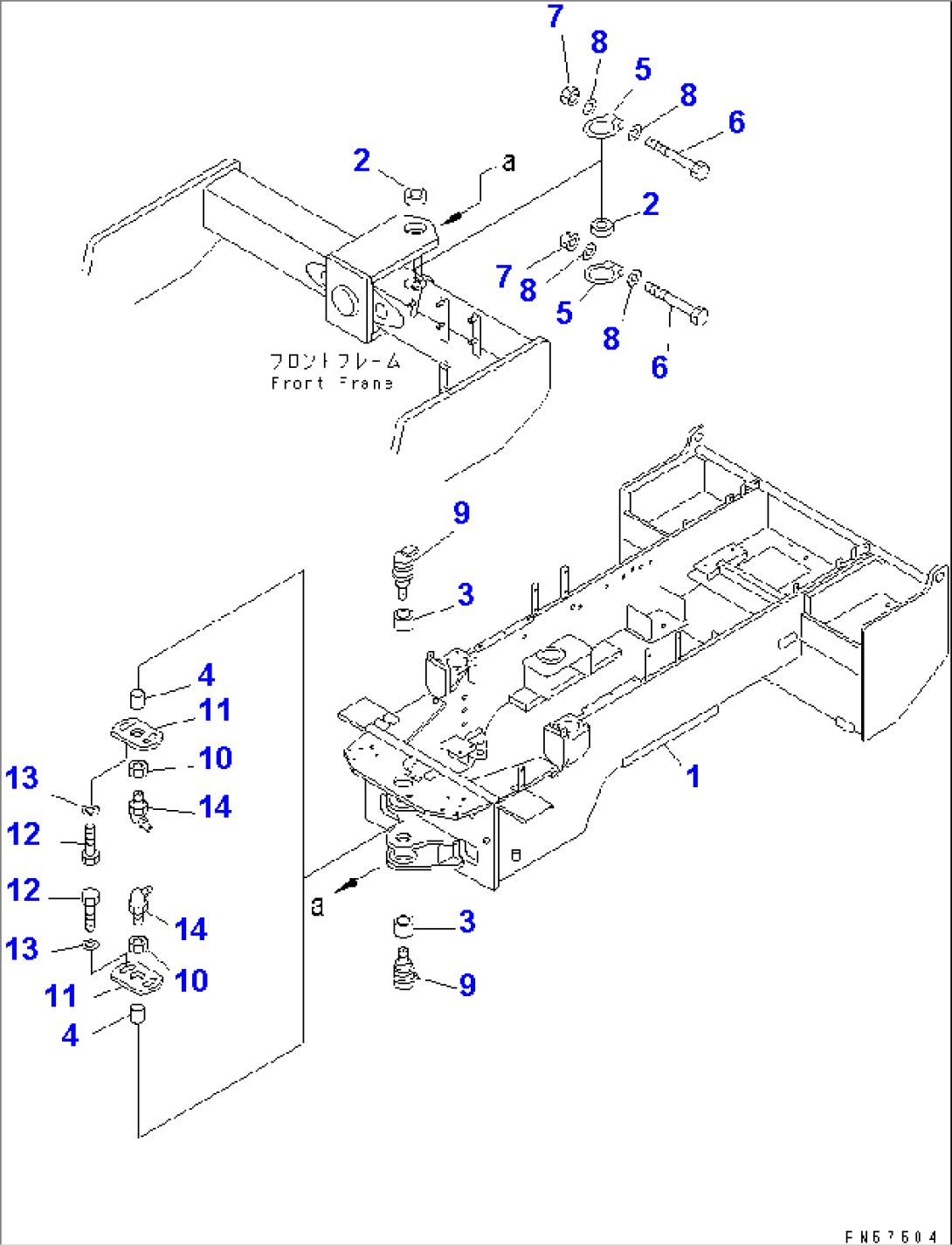

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 273-46-62200 | FRAME,REAR | 11001- | |
| 1 | 273-46-62300 | FRAME,REAR (FOR ROPS) | 11001- | |
| 1 | 273-46-62810 | FRAME,REAR (FOR VANDALISM) | 11001- | |
| 1 | 273-46-62830 | FRAME,REAR (FOR ROPS AND VANDALISM) | 11001- | |
| 2 | 232-46-53211 | BUSHING | 11001- | |
| 3 | 236-46-13381 | BUSHING | 11001- | |
| 4 | 236-46-13390 | BUSHING | 11001- | |
| 5 | 236-46-13610 | O-RING | 11001- | |
| 6 | 235-46-11710 | BOLT | 11001- | |
| 7 | 01598-00608 | NUT | 11001- | |
| 8 | 01640-20610 | WASHER | 11001- | |
| 9 | 23A-46-11371 | PIN | 11001- | |
| 10 | 236-46-13410 | NUT | 11001- | |
| 11 | 23A-46-11380 | PLATE | 11001- | |
| 12 | 01010-81630 | BOLT | 11001- | |
| 13 | 01643-31645 | WASHER | 11001- | |
| 14 | 07020-00675 | FITTING,GREASE | 11001- |
