| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | Seat Assembly, Rear Frame | 5001- | ||
| 2 | 566-46-42810 | Bushing | 5001- | |
| 3 | 07145-00060 | Seal, Dust | 5001- | |
| 4 | 07020-00000 | Fitting, Grease | 5001- | |
| 5 | 01010-82045 | Bolt | 5001- | |
| 6 | 01643-32060 | Washer | 5001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 3m0 s/n 5001 up (for kal)
- Frame and its related parts
- Rear frame (#5001 )
Поиск по каталогу

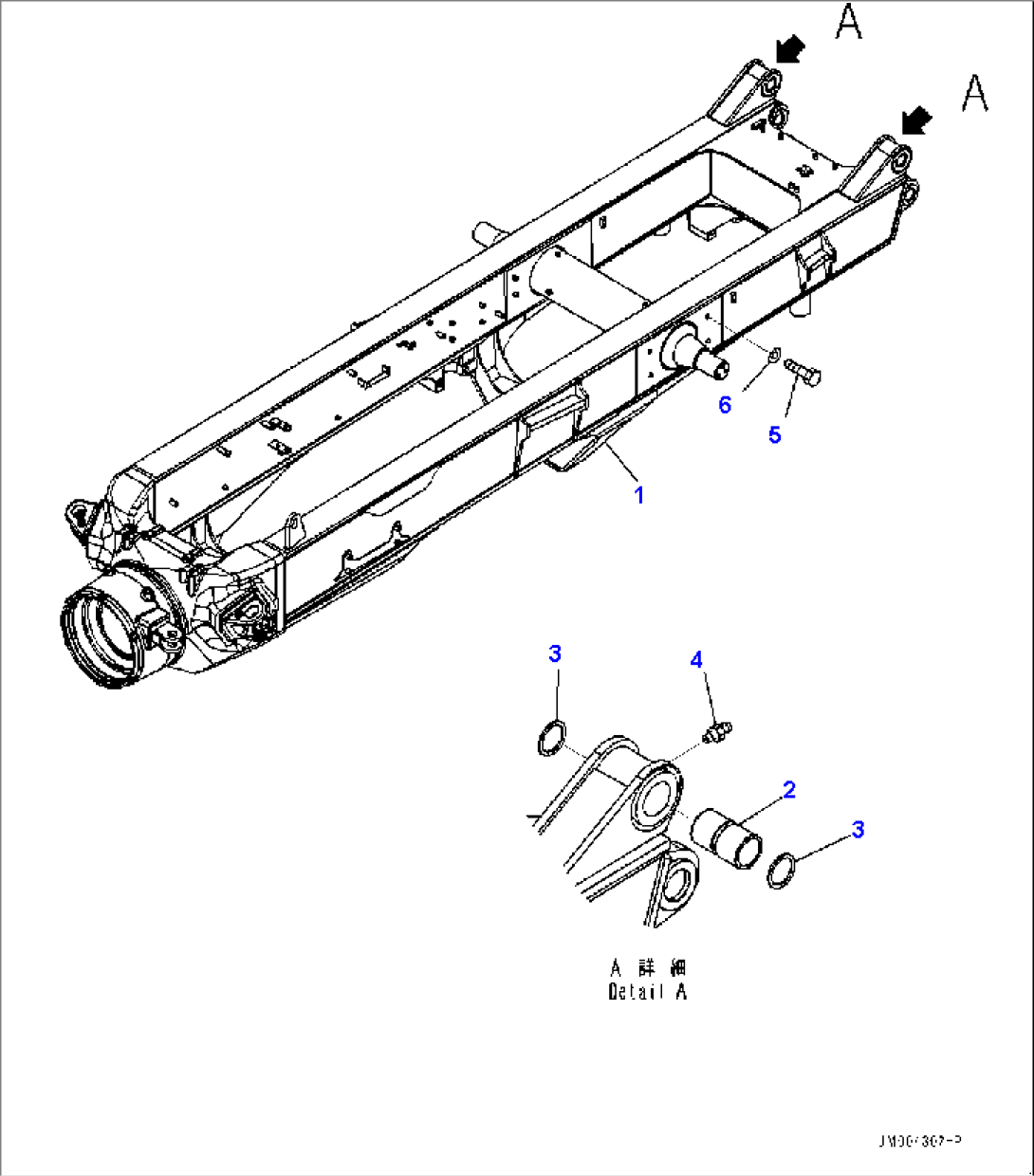

Rear Frame (#5001-)
