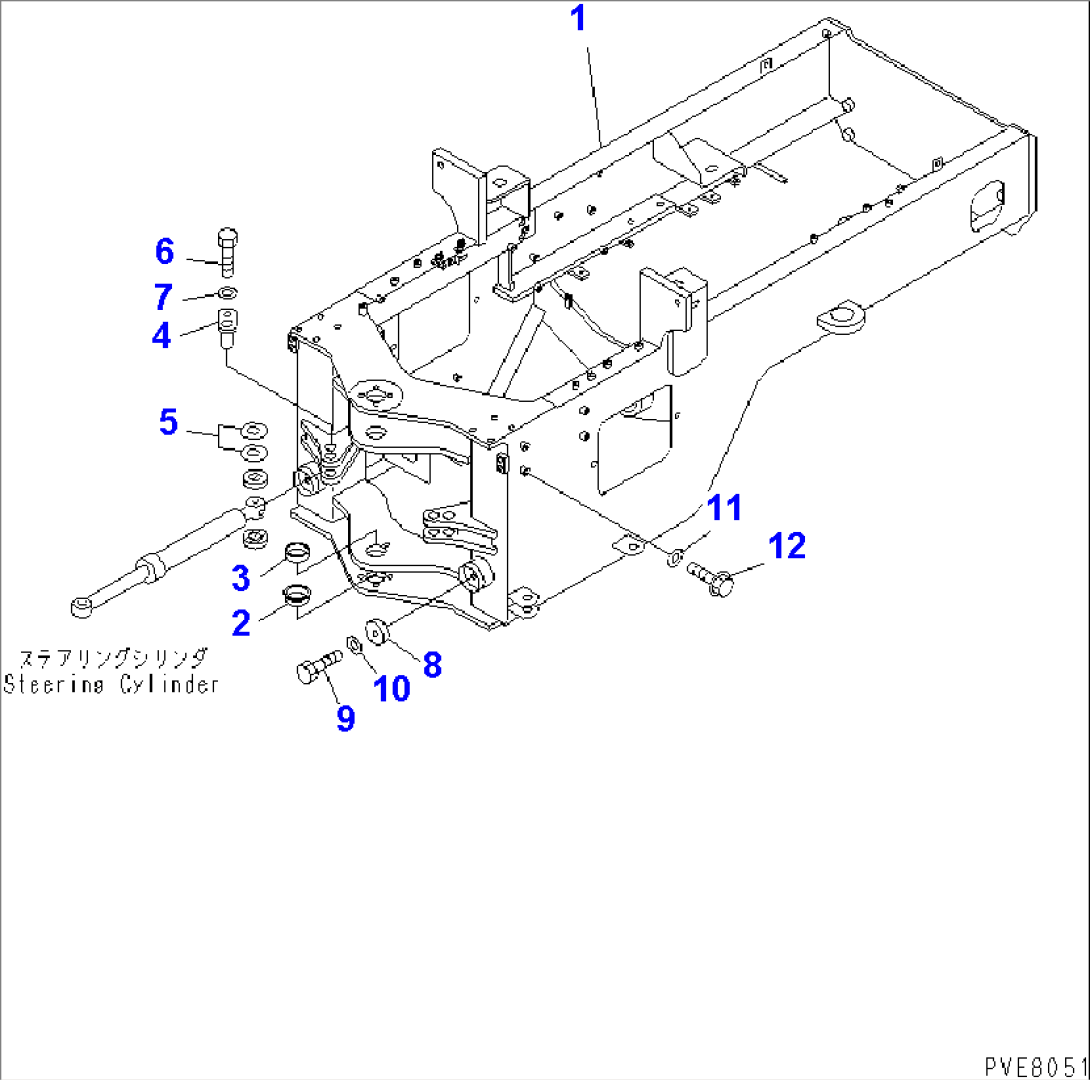

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-46-22191 | FRAME,REAR | 54057- | |
| 1 | 417-46-22190 | FRAME,REAR | 53001-504056 | |
| 2 | 417-46-22210 | BUSHING | 53001- | |
| 3 | 417-46-22220 | BUSHING | 53001- | |
| 4 | 416-46-12262 | PIN | 53001- | |
| 5 | 416-46-12270 | SHIM, 1.0MM | 53001- | |
| 6 | 01010-81220 | BOLT | 53001- | |
| 7 | 175-54-34170 | WASHER | 53001- | |
| 8 | 416-46-11210 | BUMPER | 53001- | |
| 9 | 01010-81225 | BOLT | 53001- | |
| 10 | 01643-31232 | WASHER | 53001- | |
| 11 | 01643-31232 | WASHER | 53001- | |
| 12 | 01435-01220 | BOLT | 53001- |
