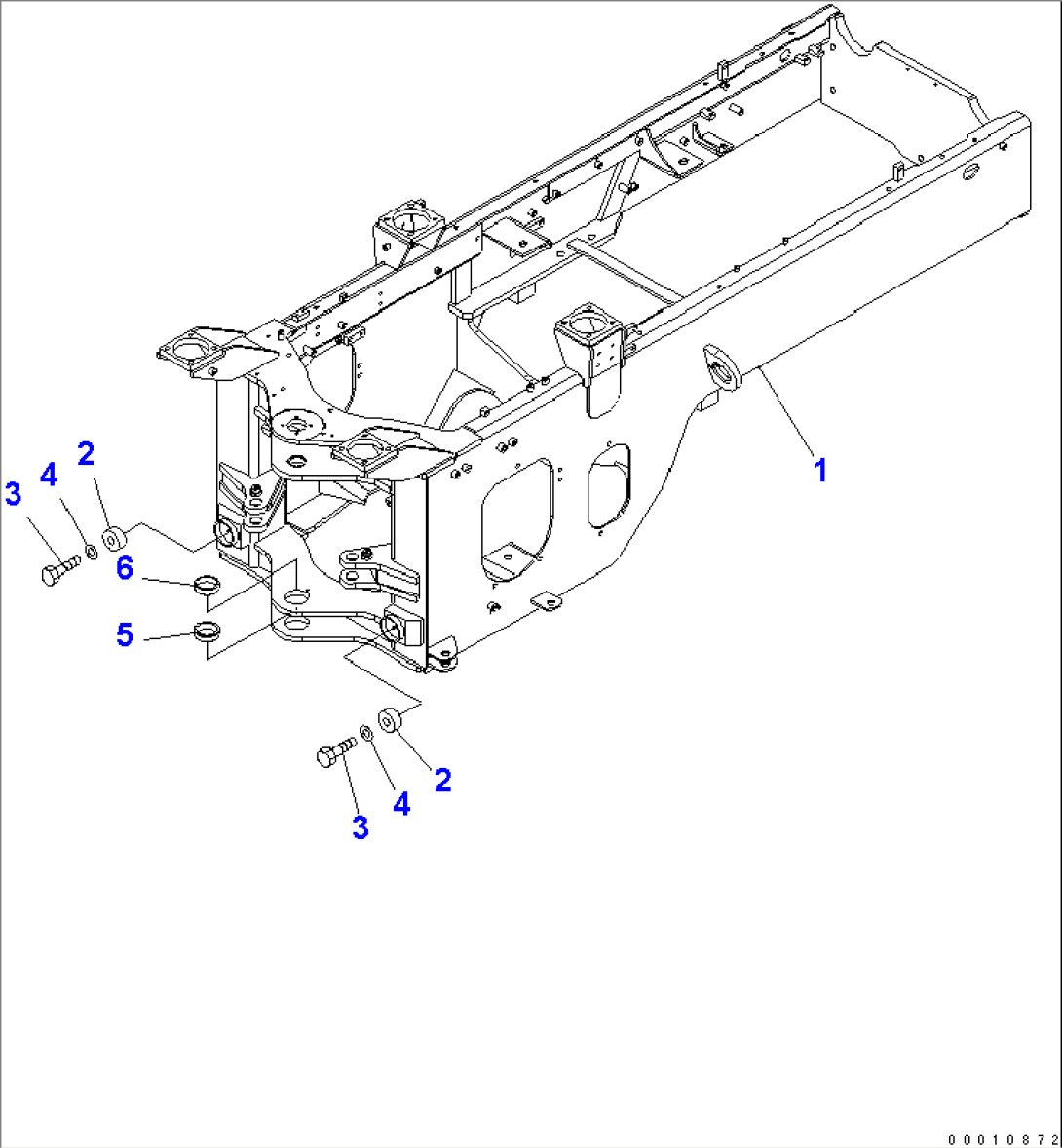

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-46-32108 | FRAME,REAR | 69297- | |
| 1 | 417-46-32107 | FRAME,REAR | 69294-69296 | |
| 1 | 417-46-32106 | FRAME,REAR | 69292-69293 | |
| 1 | 417-46-32105 | FRAME,REAR | 69279-69291 | |
| 1 | 417-46-32104 | FRAME,REAR | 65855-69278 | |
| 1 | 417-46-32103 | FRAME,REAR | 65595-65854 | |
| 1 | 417-46-32102 | FRAME,REAR | 65001-65594 | |
| 2 | 416-46-11210 | BUMPER | 65001- | |
| 3 | 01010-81225 | BOLT | 65001- | |
| 4 | 01643-31232 | WASHER | 65001- | |
| 5 | 417-46-22211 | BUSHING | 65001- | |
| 5 | (\2\417-46-22210) | BUSHING | (65001-69531) | |
| 6 | 417-46-22221 | BUSHING | 65001- | |
| 6 | (\2\417-46-22220) | BUSHING | (65001-69531) |
