| Item | Part No. | Part Name | Qty | Serial No. |

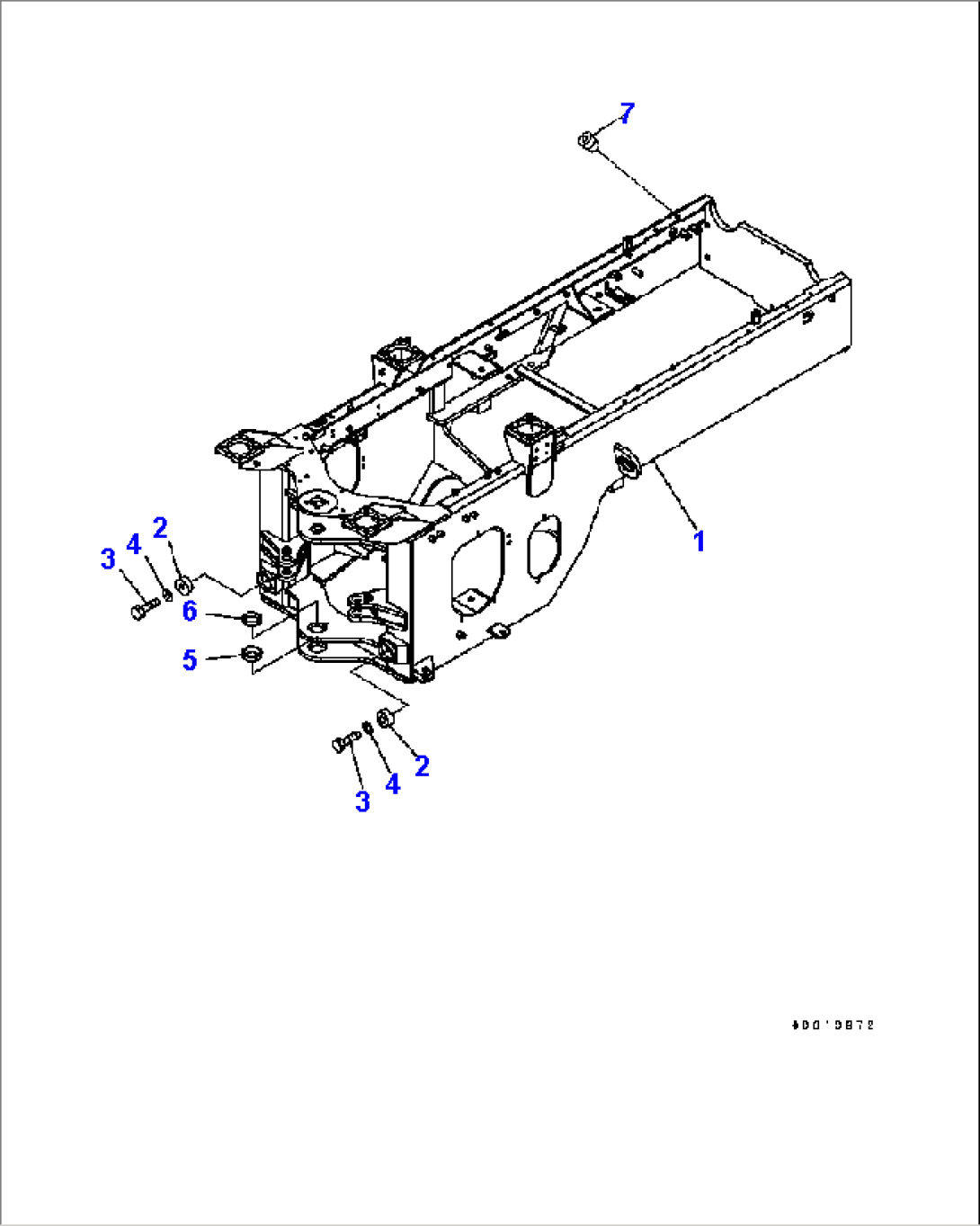

| 1 | 417-46-B2132 | FRAME ASS'Y {REAR FRAME} | B11944- | |
| \0\417-46-B2131 | FRAME ASS'Y {REAR FRAME} | B11149-B11943 | ||
| 417-971-3223 | FRAME ASS'Y {REAR FRAME} | B11067-B11148 | ||
| 417-971-3221 | FRAME ASS'Y {REAR FRAME} | B10639-B11066 | ||
| 417-971-3220 | FRAME ASS'Y {REAR FRAME} | B10001-B10638 | ||
| 2 | 416-46-11210 | BUMPER | B10001- | |
| 3 | 01010-81225 | BOLT | B10001- | |
| 4 | 01643-31232 | WASHER | B10001- | |
| 5 | 417-46-22210 | BUSHING | B10001- | |
| 6 | 417-46-22220 | BUSHING | B10001- | |
| 7 | 07049-01215 | PLUG | B10236- |
