| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-46-42105 | Frame, Rear | 77967- | |
| 1 | 418-46-42104 | Frame, Rear | 76045-77966 | |
| 2 | 416-46-11210 | Bumper | 75053- | |
| 3 | 01010-81225 | Bolt | 75053- | |
| 4 | 01643-31232 | Washer | 75053- |
Поиск по каталогу

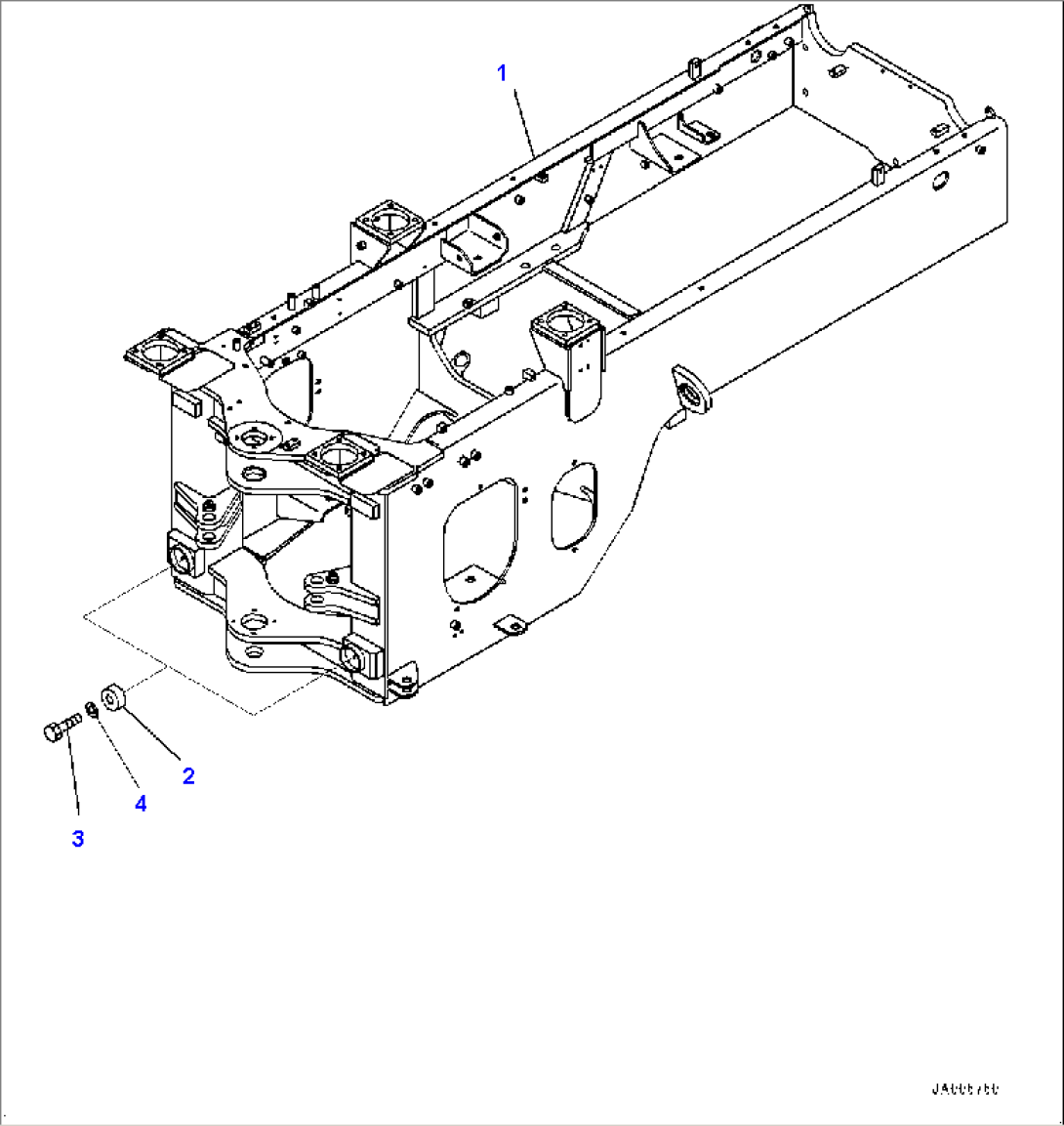

Rear Frame, (#76045-)
| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-46-42105 | Frame, Rear | 77967- | |
| 1 | 418-46-42104 | Frame, Rear | 76045-77966 | |
| 2 | 416-46-11210 | Bumper | 75053- | |
| 3 | 01010-81225 | Bolt | 75053- | |
| 4 | 01643-31232 | Washer | 75053- |
